Sensor (Mpf Empty) Removal - Lexmark MS911 Service Manual

5

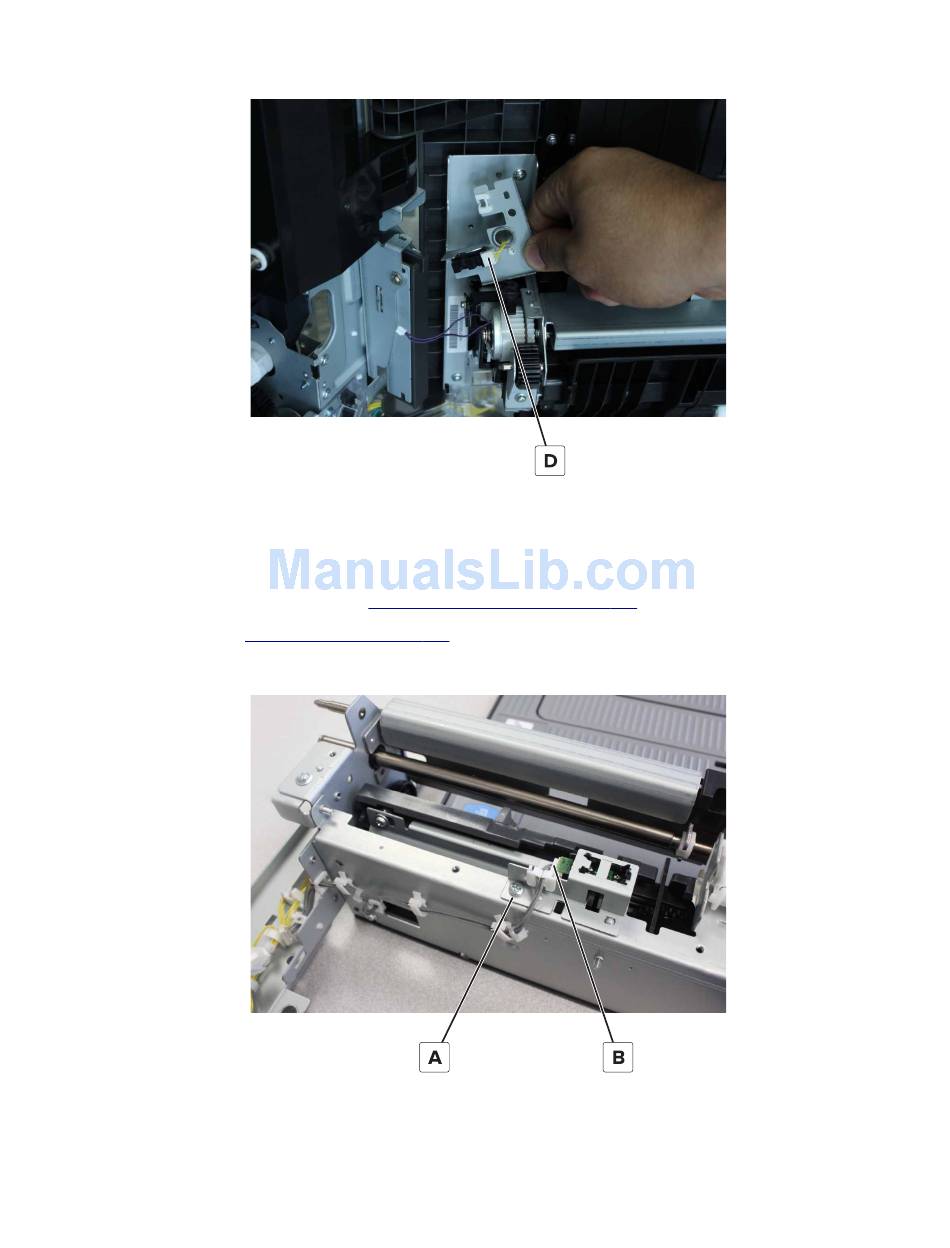

Lift the bracket, and then disconnect the cable (D).
6
Remove the sensor.

Sensor (MPF empty) removal

1
Remove the tray 2 transport guide. See
2
Remove the MPF. See
3
Remove the screw (A), and then disconnect the cable (B).
4
Remove the sensor.
"Tray 2 transport guide" on page
"MPF removal" on page 247.
Repair information
246.
255
4021
