Switch/Sensor Board Removal - Lexmark Optra N 4040 Service Manual

4040

Switch/Sensor Board Removal

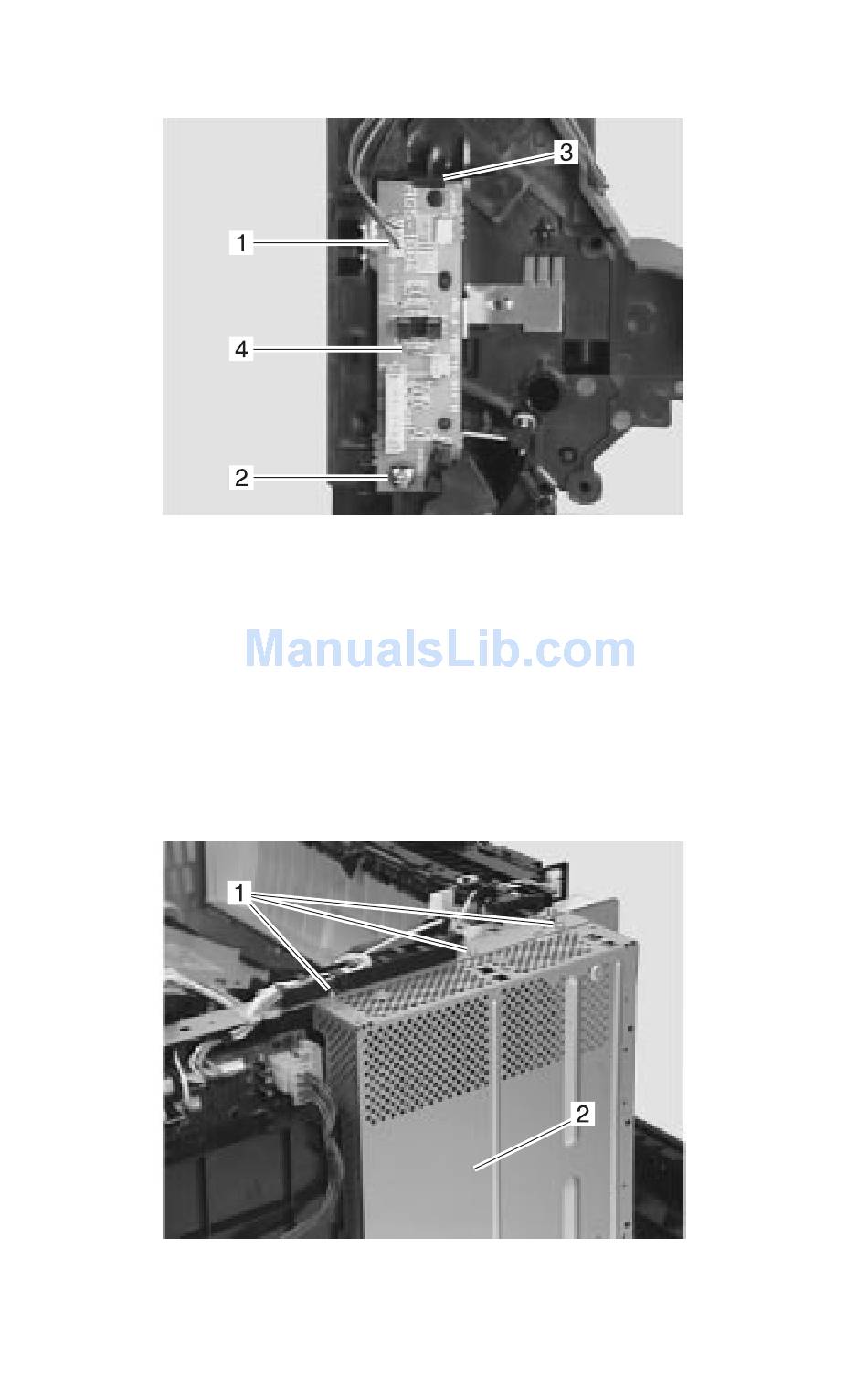

1. Remove the upper cover unit.
2. Remove the right rear cover and the rear cover.
3. Remove the left rear cover.
4. Remove the 3 screws (1). Remove the 4 screws on the bottom
of the shield cover and remove the shield cover (2).
4-61
