2.5 Sensors

2.5.1 Sensor Locations

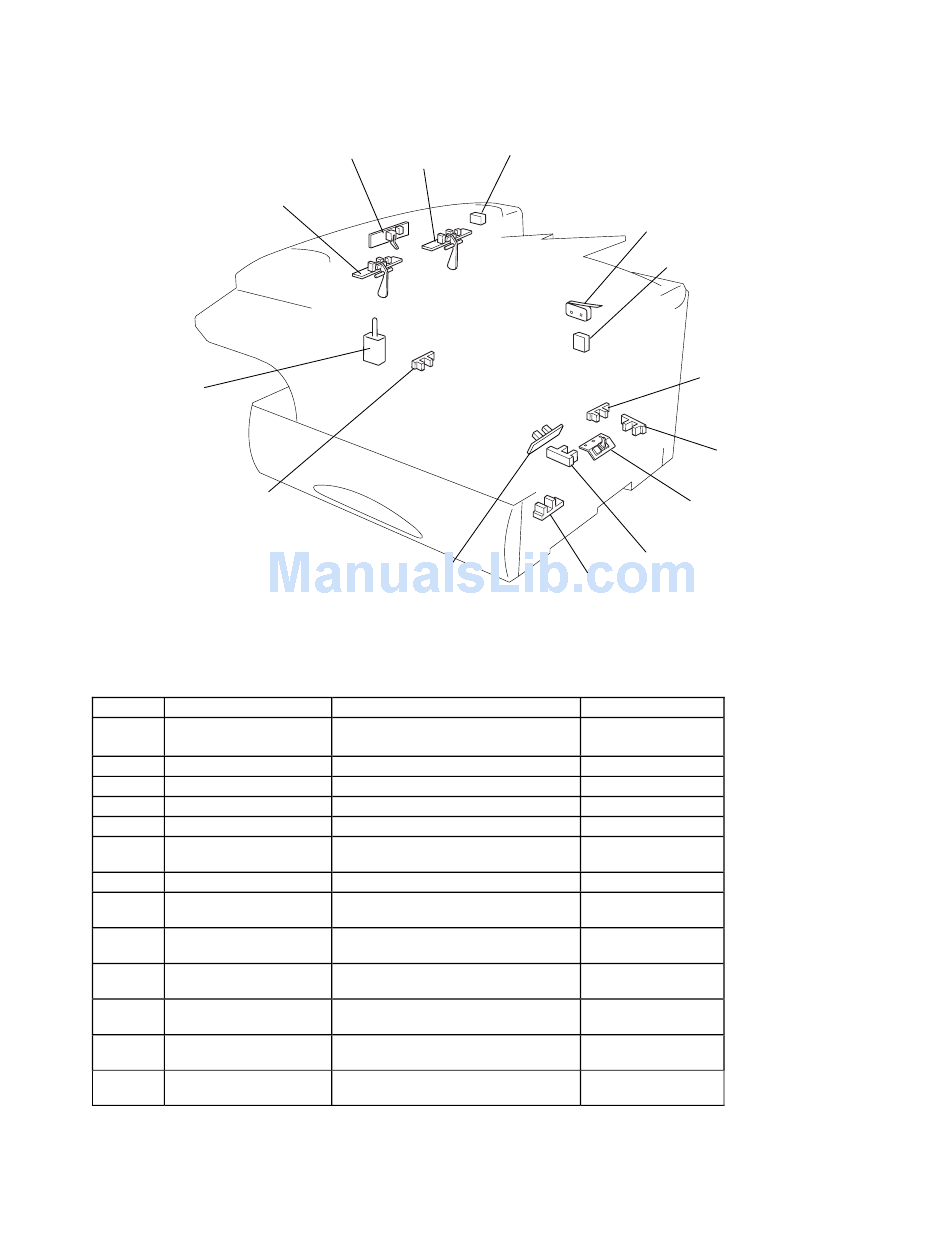

The following illustration shows the relative positions of the machine's sensors.
DB4
TCS
PDS

2.5.2 Sensor Descriptions

The following table gives a brief description of each sensor and it's function.
Code Name
TXIL Interlock switch (ADF)
(ADF)
DS1 Document sensor 1
DS2 Document sensor 2
DB4 B4 size sensor
TCS Top cover sensor
PSS Paper set sensor
PDS Paper discharge sensor
PES Paper empty sensor
HPES Hand paper empty
sensor
TOS Toner sensor
CASOP Paper cassette open
sensor
JCOP Jam access cover (side
cover) open sensor
COVER- Cover switch
SW
DS2 TXIL
DS1
TOS
Detects
Scanner cover open or close
Presence of document in feeder
Leading and trailing edge of document
B4 sized document.
Top cover opened or closed
Detects paper feeding out of
cassette/tray.
Detects paper at paper exit.
Detects presence of recording paper in
the 1st paper cassette
Detects presence of recording paper in
the bypass tray
Detects toner empty and toner
cartridge set.
Detects the 1st paper cassette open or
closed
Detects the side cover open or closed
Detects printer cover open or closed
2-7
COVER SW
DRUM SW
HPES
CASOP
PSS
PES
JCOP
Sensor Type
Micro switch
Photo interrupter
Mechanical Switch
Photo interrupter
Photo interrupter
Photo interrupter
Photo interrupter
Photo interrupter
Photo interrupter
Photo interrupter
Photo interrupter
Photo interrupter
Micro switch
