JUNOSe 11.1.x BGP and MPLS Configuration Guide

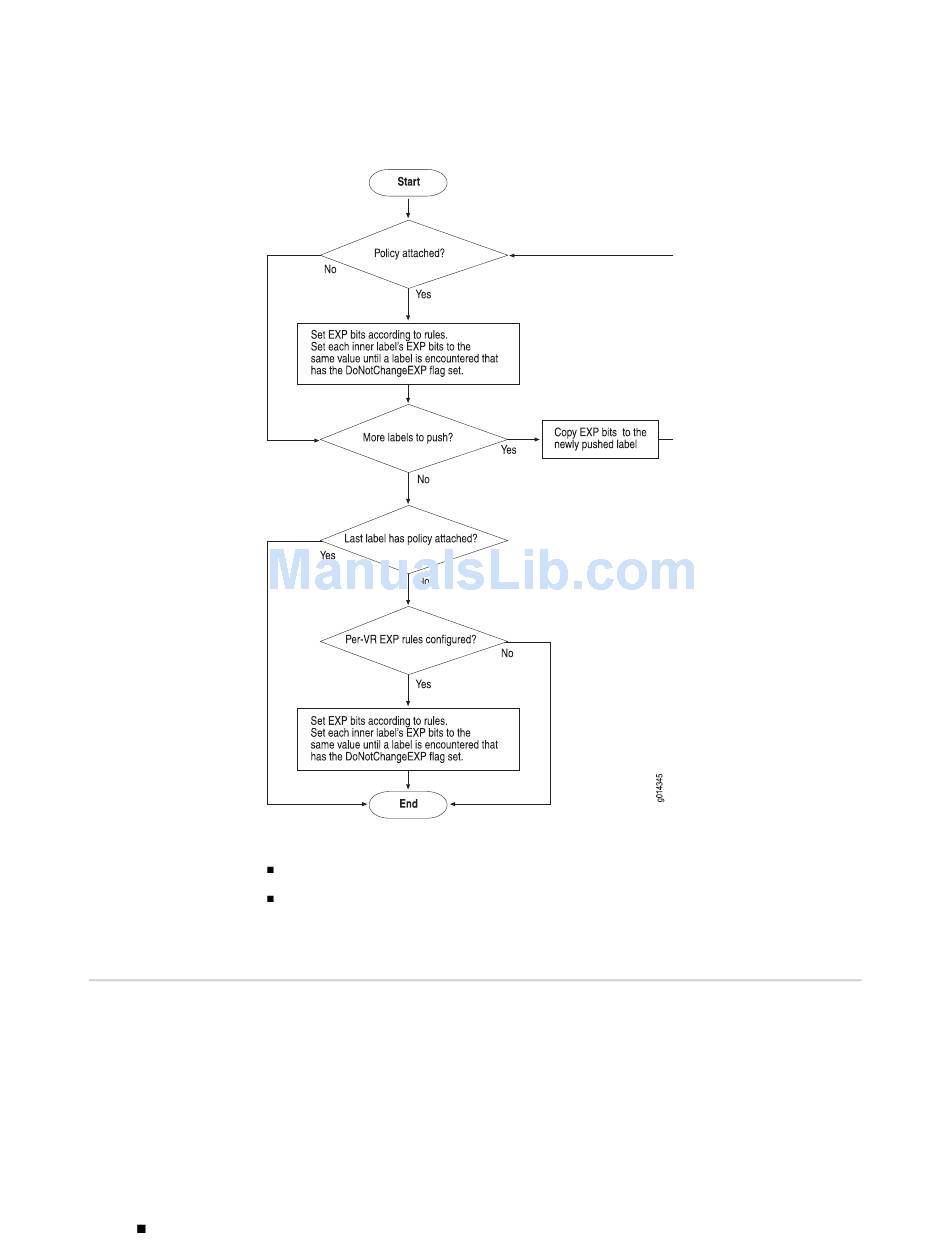

Figure 60: Flow for Setting EXP Bits for All Pushed Labels

Related Topics

Point-to-Multipoint LSPs Overview

A point-to-multipoint MPLS LSP is an RSVP-TE LSP with a single ingress LSR and one
or more egress LSRs. You can use point-to-multipoint LSPs to avoid unnecessary
duplication of packets at the ingress router by allowing non-ingress LSRs to replicate
the incoming data on one or more outgoing interfaces. Point-to-multipoint LSPs for
multicast VPNs are supported for intra-autonomous system (AS) environments (within
an AS), but are not supported for inter-AS environments (between ASs).
262
Point-to-Multipoint LSPs Overview
Configuring EXP Bits for Differentiated Services on page 300
Configuring MPLS and Differentiated Services on page 299
