2

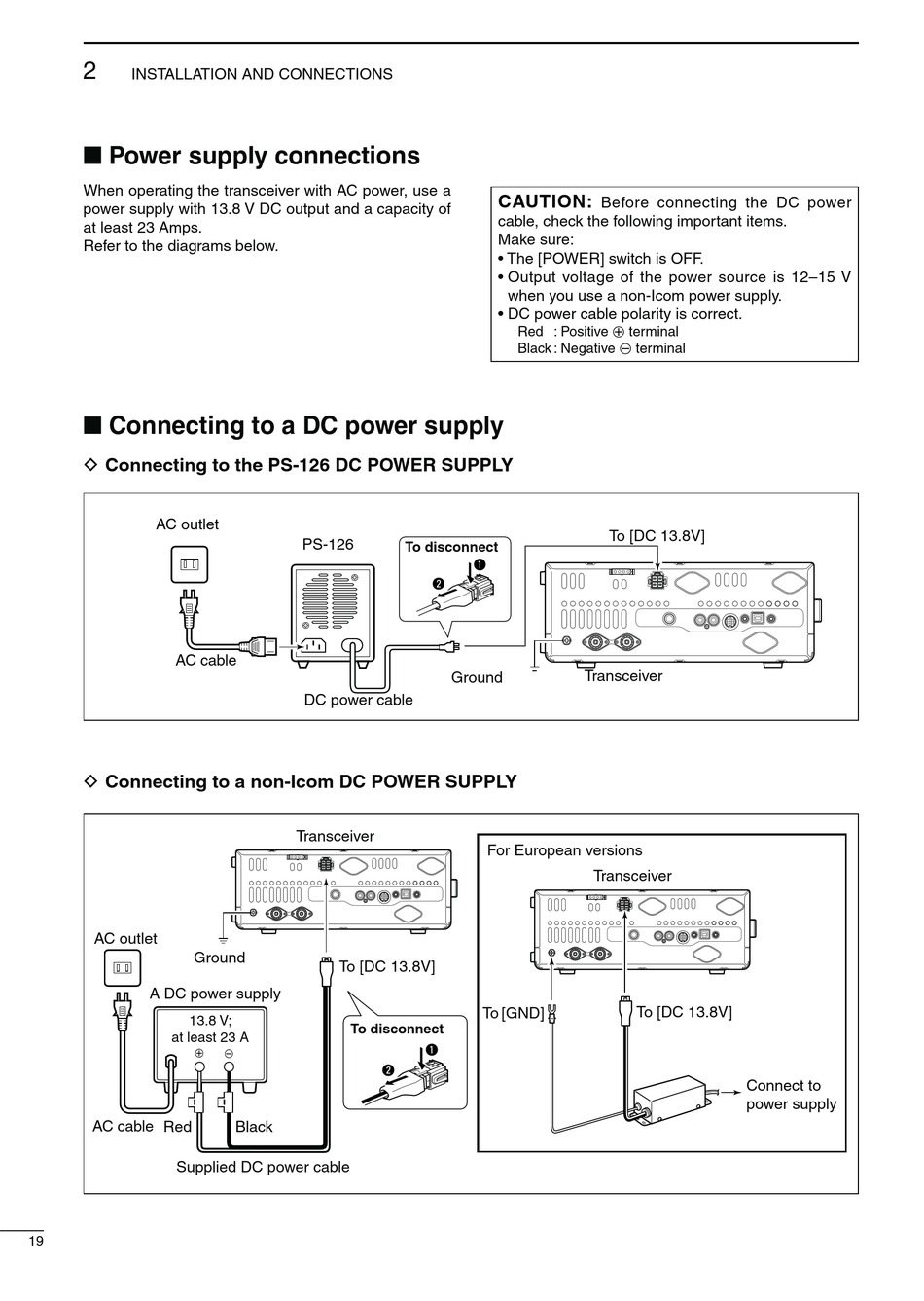

INSTALLATION AND CONNECTIONS
When operating the transceiver with AC power, use a
power supply with 13.8 V DC output and a capacity of
at least 23 Amps.
Refer to the diagrams below.
D
AC outlet
AC cable
D
AC outlet
Ground
A DC power supply
13.8 V;
at least 23 A
+
AC cable Red
Supplied DC power cable
19
PS-126
DC power cable
Transceiver
To [DC 13.8V]
_
w
Black
cable, check the following important items.
Make sure:
when you use a non-Icom power supply.
Red : Positive + terminal
Black : Negative _ terminal
q
w
Transceiver
Ground
For European versions
Transceiver
To [GND]
q
Before connecting the DC power
To [DC 13.8V]
To [DC 13.8V]
Connect to
power supply
