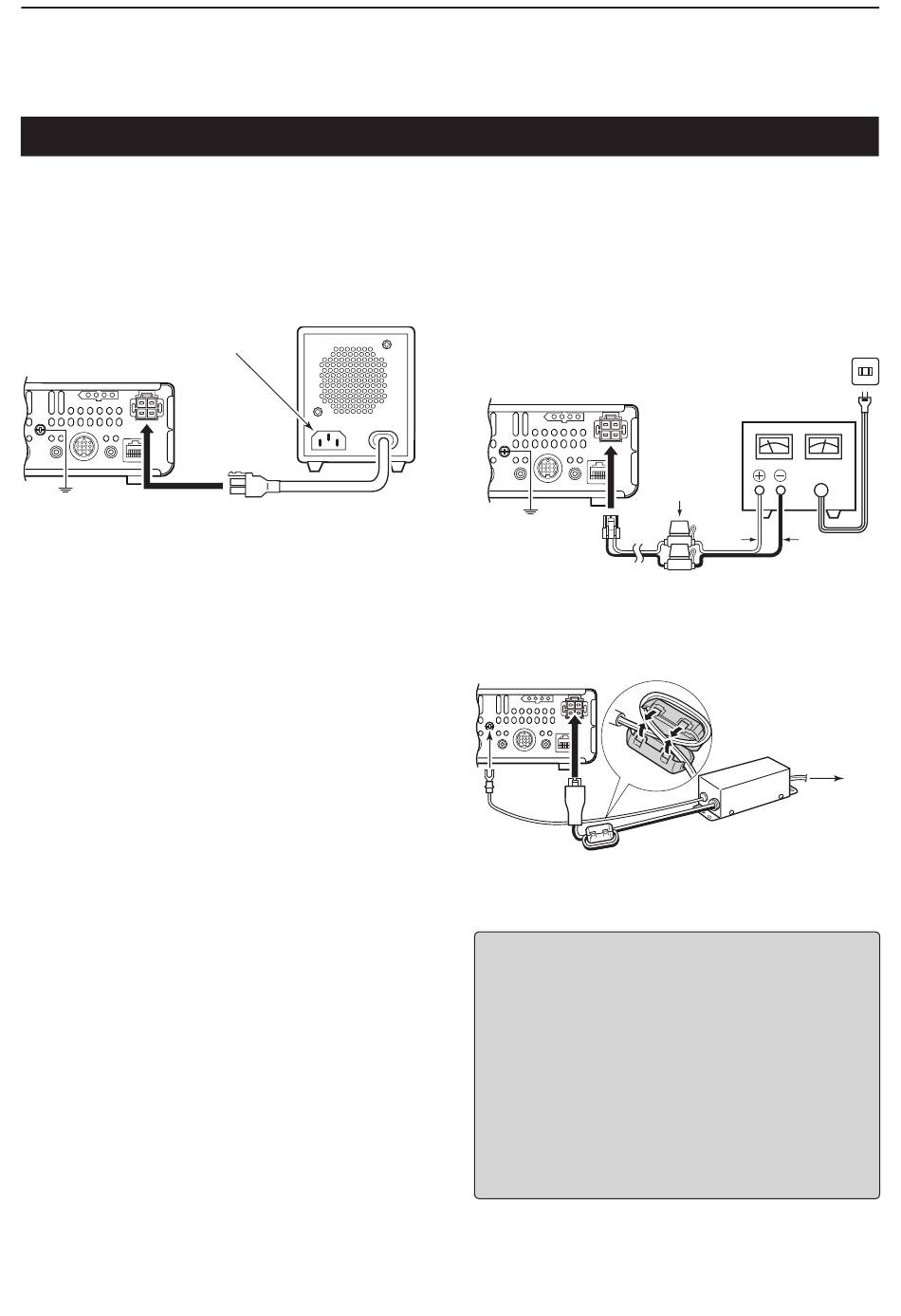

Power Supply Connections

Make sure the [POWER] switch is OFF before connect-
ing the DC power cable.
• We recommend using Icom's optional power supply
(PS-126: DC13.8 V/25 A).

D Connecting the PS-126 power supply

Use the attached AC cable to con-
nect to AC outlet.
Rear panel
GND
PS-126
To
[DC 13.8V]
INSTALLATION AND CONNECTIONS
The transceiver needs followings:
• DC 13.8 V (Capacity: 22 A and over)
• A power supply with an over current protective line
and with a less voltage fluctuation or ripple

D Connecting a non-Icom DC power supply

Connect the black DC power cable to the (–) Negative
terminal, and the red DC power cable to the (+) Positive
terminal.
Rear panel
GND
DC power socket
For European versions
GND
DC power socket
RWARNING! (About DC power supply)
• Make sure DC power cable polarity is correct.
Red: Positive + terminal
Black: Negative – terminal
• NEVER cut the DC power cable between the DC
plug and fuse holder.
• DO NOT use unattached or undesignated DC pow-
er cable.
• DO NOT forcibly pull or bend the DC power cable.
Install the devices far enough from the place where
people might put things or step on the DC power
cable.
2-7
AC outlet
Stabilized power supply
Fuse
holder
RED
BLACK
OPC-1457
Connect to
power supply
OPC-2095
2
