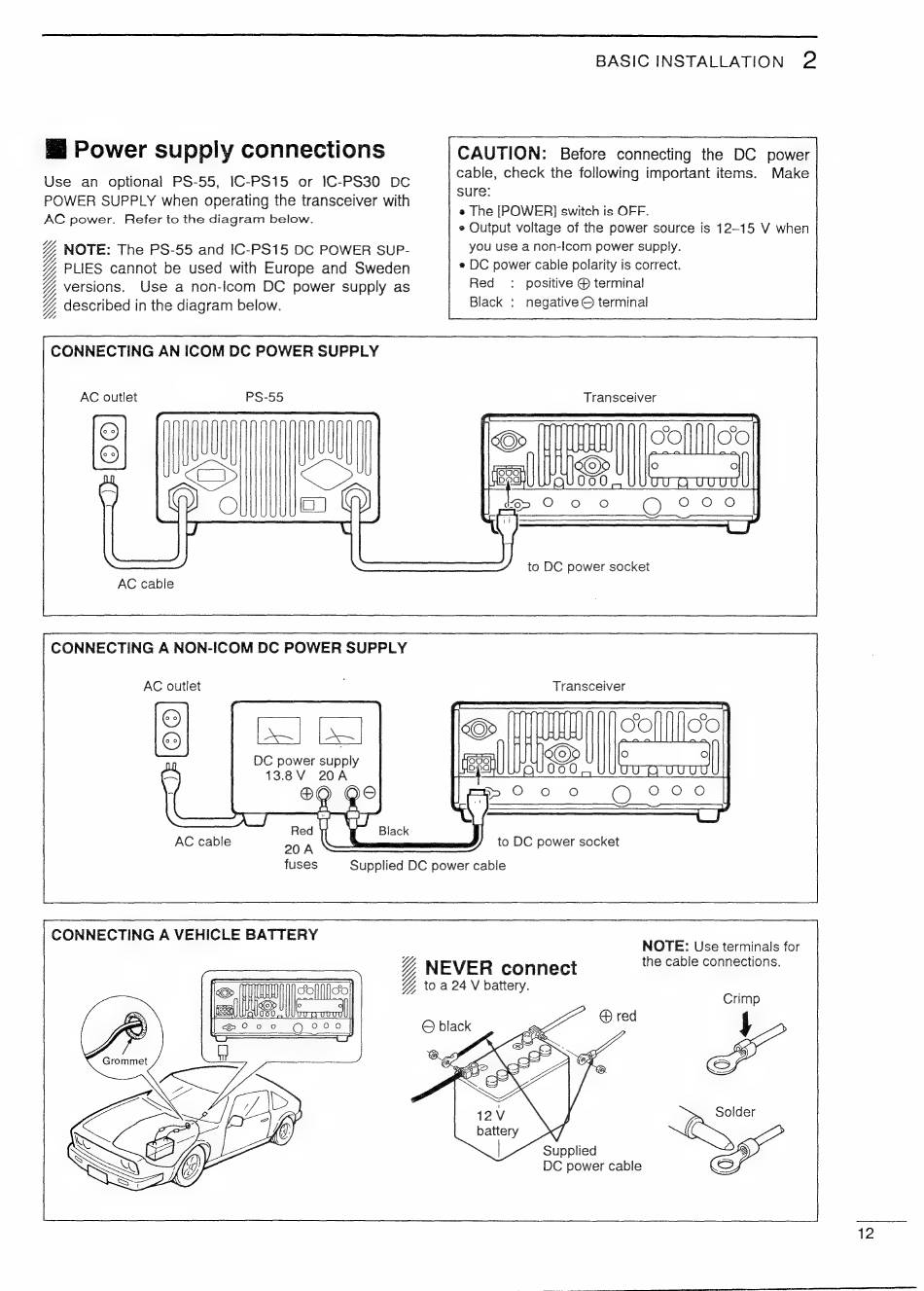

a Power Supply connections
Use an optional PS-55, IC-PS15 or IC-PS30 DC
POWER SUPPLY when operating the transceiver with
AC power. Refer to the diagram below.
Y% NOTE: The PS-55 and IC-PS15 DC POWER SUP-
PLIES cannot be used with Europe and Sweden
versions. Use a non-icom DC power supply as
described in the diagram below.
MQ
7
CONNECTING AN ICOM DC POWER SUPPLY
AC outlet PS-55
AC cable
CONNECTING A NON-ICOM DC POWER SUPPLY
AC outlet
Sen ed
DC power supply
13.8V 20A
AC cable 20 A
fuses
BASIC INSTALLATION 2
CAUTION: Before connecting the DC power
cable, check the following important items. Make
sure:
2 The [POWER] switch is OFF.
e Output voltage of the power source is 12-15 V when
you use a non-lcom power supply.
*® DC power cable polarity is correct.
Red : positive @ terminal
Black : negative © terminal
Transceiver
to DC power socket
Transceiver
NOTE: Use terminals for
the cable connections.
EVER connect
a 24 V battery.
Crimp
Q
£3
7
Supplied
DC power cable
12
