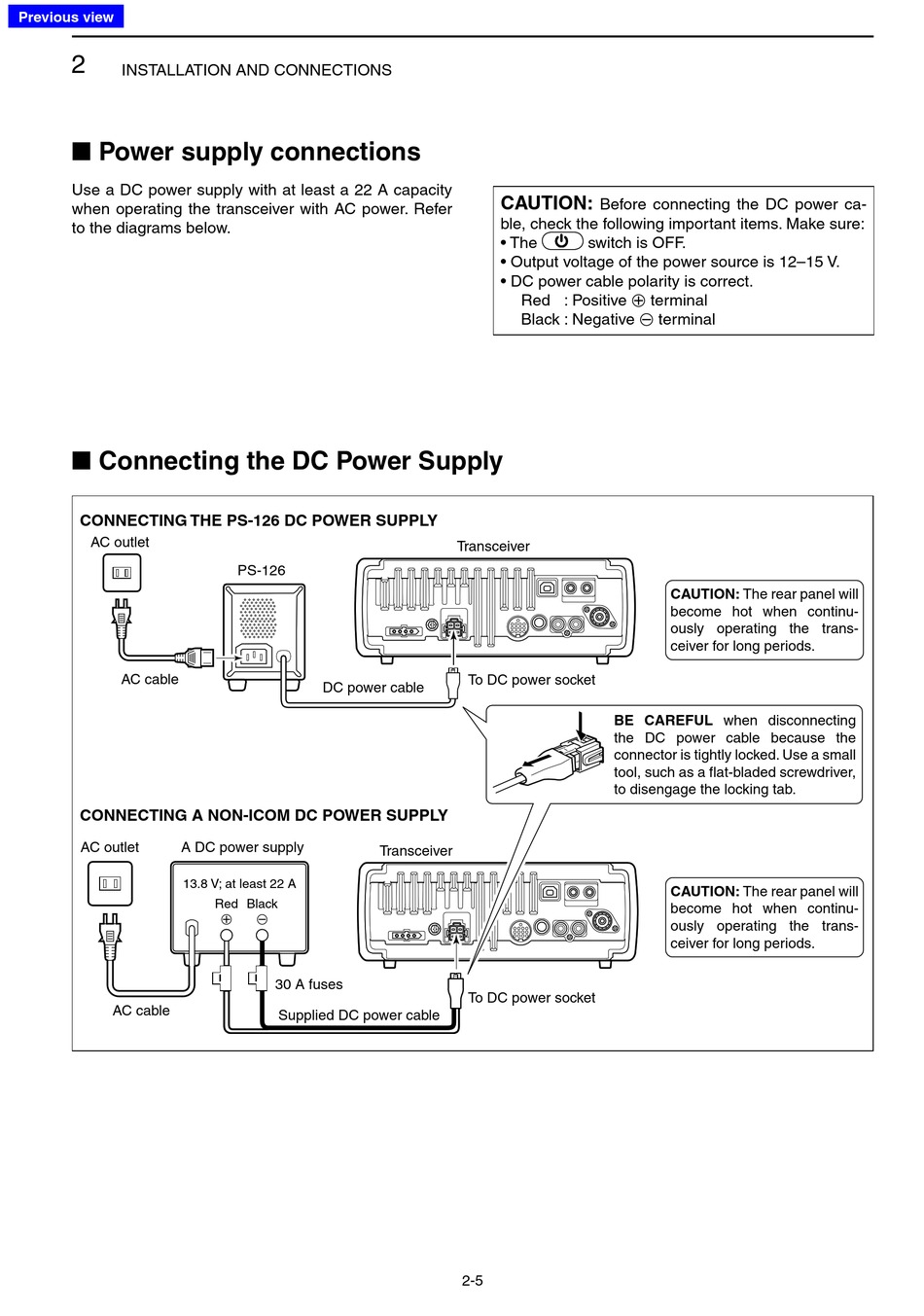

INSTALLATION AND CONNECTIONS

■ Power supply connections

Use a DC power supply with at least a 22 A capacity
when operating the transceiver with AC power. Refer
to the diagrams below.

■ Connecting the DC Power Supply

CONNECTING THE PS-126 DC POWER SUPPLY
AC outlet
AC cable
CONNECTING A NON-ICOM DC POWER SUPPLY
AC outlet A DC power supply
13.8 V; at least 22 A
AC cable
PS-126
DC power cable
Transceiver
Red Black
+ _
30 A fuses
Supplied DC power cable
CAUTION:
Before connecting the DC power ca-
ble, check the following important items. Make sure:
• The switch is OFF.
• Output voltage of the power source is 12–15 V.
• DC power cable polarity is correct.
Red : Positive + terminal
Black : Negative _ terminal
Transceiver
To DC power socket
BE CAREFUL when disconnecting
the DC power cable because the
connector is tightly locked. Use a small
tool, such as a flat-bladed screwdriver,
to disengage the locking tab.
To DC power socket
2-5
CAUTION: The rear panel will
become hot when continu-
ously operating the trans-
ceiver for long periods.
CAUTION: The rear panel will
become hot when continu-
ously operating the trans-
ceiver for long periods.
