Hardware Layout - Electronics Line iconnect Installation Manual

The Electronics Line Application Server (ELAS) handles all communication between the system, service providers and
web users enabling monitoring and control to be performed via the Web.
Central station communication and remote parameters programming and maintenance employ Ethernet, GPRS, GSM or
standard PSTN communication. SMS messaging provides an innovative method used for both central station and
Follow-Me user monitoring. Additionally, SMS messages can be sent to the iConnect
user to send commands to the system from anywhere on the planet.

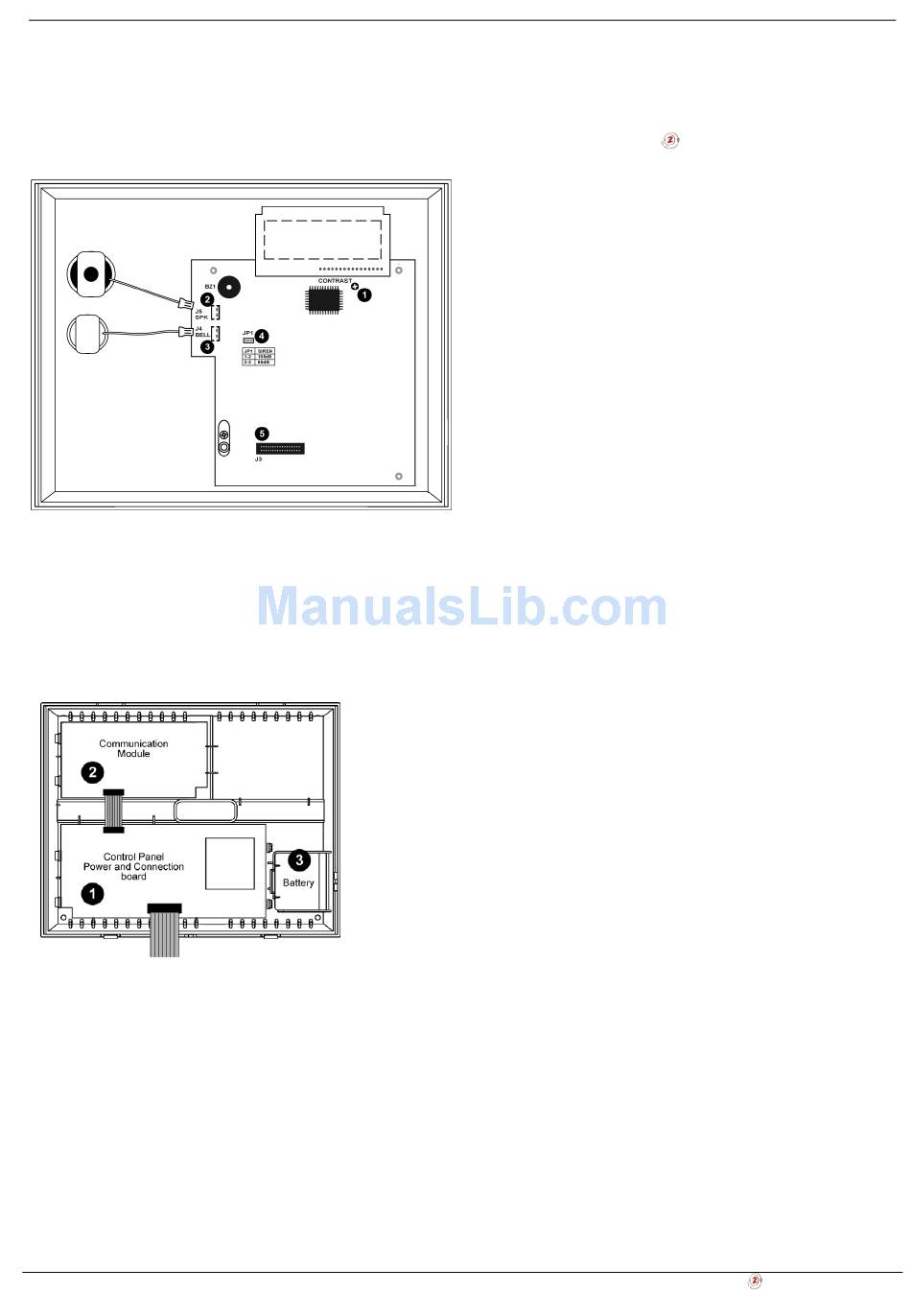

Figure 1-2: Main Panel
The Main panel has connectors to the built-in Siren and the Speaker.
1.4.

Hardware Layout

The aim of this section is to acquaint you with the various circuits that make up the system. Apart from the Main Panel,
each peripheral module is available as an optional extra designed for installation inside the plastic housing.
Figure 1-3: System Layout
1.4.1. Power Supply and Connection Board
The Power and Connection Board is the brain of the system and connects to various peripheral modules using a
number of interface connectors. Additionally the Power and Connection Board includes a programmable output, and
hardwired zones input.
4
1. Contrast LCD
2. Speaker
3. Bell
4. Jumper for siren volume (see
Table 1-2, Jumper Settings)
5. Flat Cable
1. Power and Connection board
2. Communication module (GPRS + GSM +
LAN)
3. Backup battery pack
1 Introduction
Control System enabling the
iConnect Installation Manual
