7.2.3. Supervision Time
The detectors in Electronics Line 3000's supervised wireless range send a supervision signal approximately 20 minutes
after its last transmission. If the system does not receive supervision signals from a specific transmitter, the transmitter
is regarded as inactive.
The amount of time after which a transmitter is considered inactive is called the Supervision Time. There is a separate
supervision time for general transmitters and devices that are registered to Fire zones.
To program the Supervision Time for general transmitters:
1. From the Programming menu, select Devices, Superv. Time, General [9171].
2. Enter a supervision time between 02:00 and 23:59 hours.
To program the Supervision Time for transmitters registered to Fire zones:
1. From the Programming menu, select Devices, Superv. Time, Fire [9172].
2. Enter a supervision time between 02:00 and 23:59 hours.
7.3.

Zones

The iConnect Control System supports Electronics Line 3000's supervised wireless range of transmitters that
includes various PIR detectors, magnetic contacts and smoke detectors. All these transmitters send supervision signals
to the Control System's receiver in order to indicate that the transmitter is functional.
The iConnect Control System includes 33-34 security zones. Zones 1-32 are intended for wireless detectors by
default, unless the zones 1 to 8 are programmed as wired zones connected to the Wired Zone Module. Only one
detector can be registered to each zone.
Zone 33-34 are on-board hardwire zones. These zones are programmed in the same way as the wireless zones with the
exception of registration and deletion.
This section explains the programming exclusive to detectors. For information on registration, descriptor editing, and
deletion, see p. 35, 7.1, 7.2.1, 7.2.2. The zone menu is displayed according to the zone type (see below).
Most of the programming options are identical for hardwire and wireless zones with the following exceptions:
Wireless Zones 1-32
• Register (see: p. 35, 7.2.1 Registering Wireless Devices)
• Delete (see: p. 35, 7.2.2 Deleting and Deactivating Wireless Devices)
• Repeater (see: p. 39, 7.3.9 Repeater)

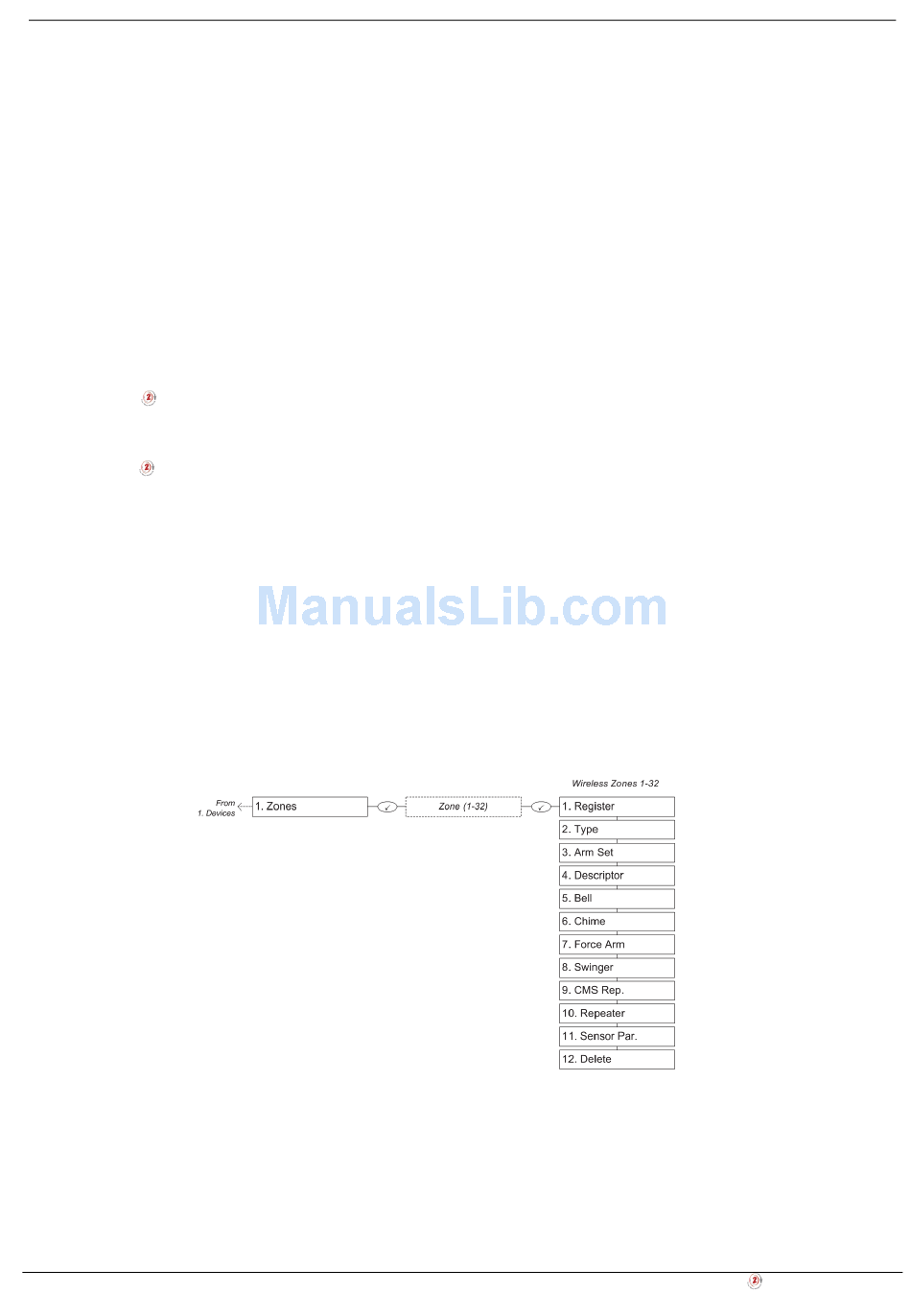

Figure 7-1: Wireless Zone Menu
Wired Zones 33-34
• Loop Type (see p. 39, 7.3.11, Loop Type (Wired zone 33-34 only)
• Loop Response (see p. 39, 7.3.12, Loop Response (hardwire zones 33-34 only)
36
