The reduction of the RF signals' strength is directly proportional to
the thickness of the obstacle, assuming that the obstacles are of
identical material.

2.2: Installation Procedure

After unpacking the kit and making certain that you have all the necessary equipment, it
is recommended that you install the system as follows:
STEP 1: Open the housing.
STEP 2: Temporarily power up the system.
STEP 3: Register the transmitters.
STEP 4: Test the chosen mounting location.
STEP 5: Permanently install the control system and transmitters.
2.2.1: Step 1 – Opening the Housing
To open the housing:
1. Remove the housing screw located
at the bottom of the front cover.
2. Using a screwdriver carefully
press the release tabs as shown
in Figure 2.4.
3. Lift the front cover away from the
back of the housing. You will
notice that the front cover is
attached
two fastening bands and the
keypad's flat cable.

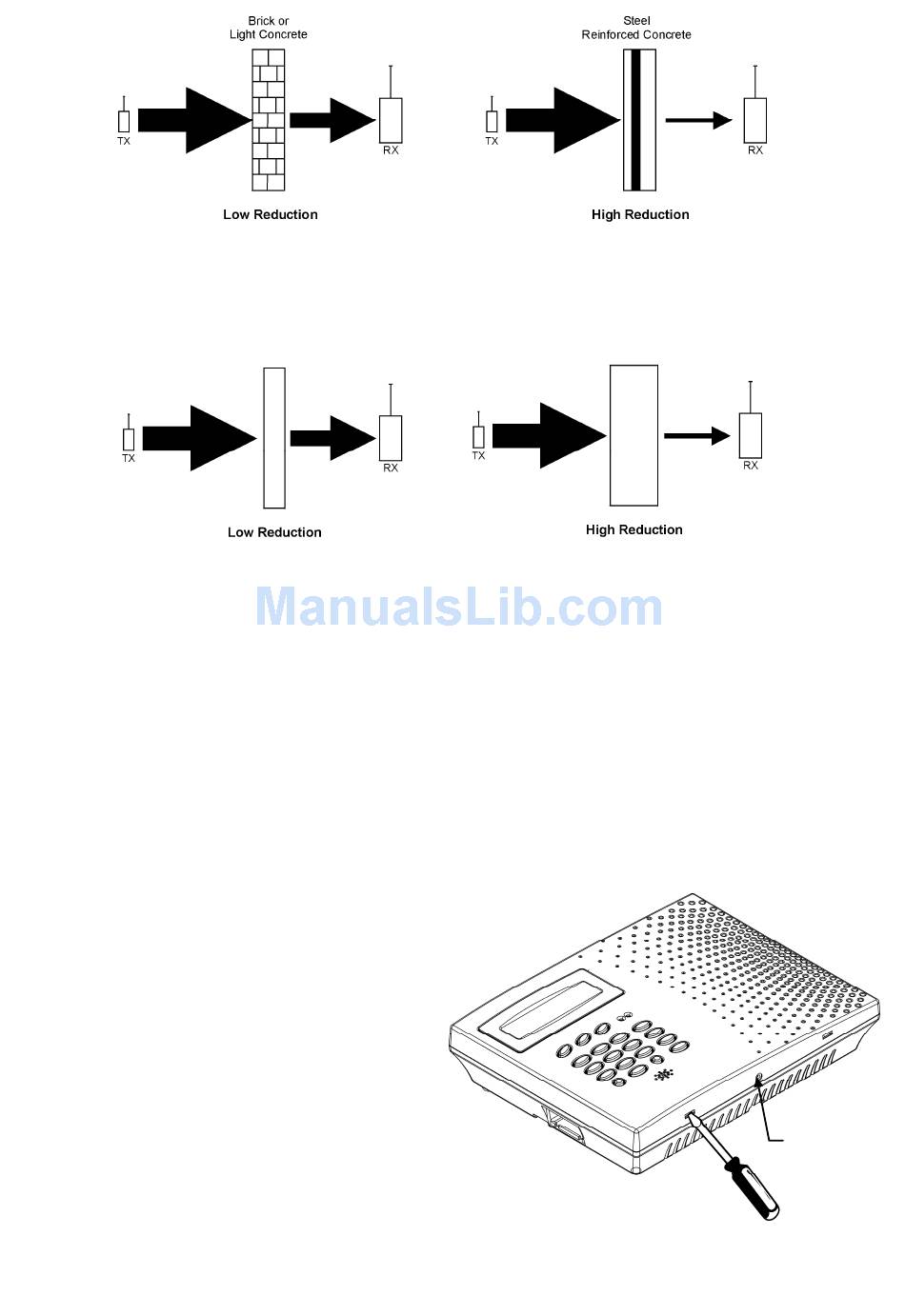

Figure 2.2: Considering Construction Materials
Figure 2.3: Considering Thickness of Obstacles
to the back with
Figure 2.4: Opening the Housing
-14-
Housing
Screw
