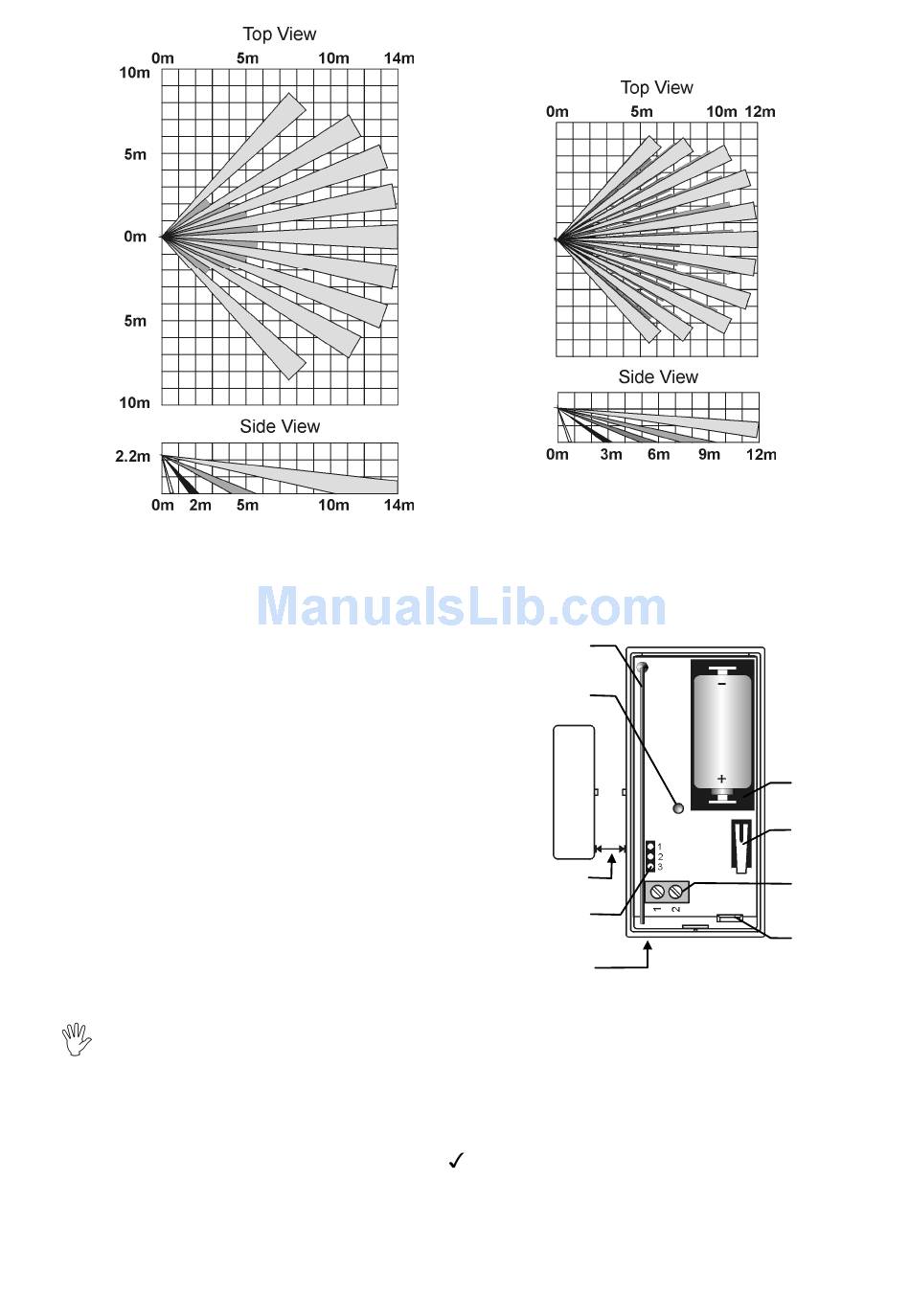

Figure B.2: Lens Coverage Diagrams EL-2600/EL-2645 (left) and EL-2600PI/EL-2645PI (right)

Magnetic Contact (EL-2601)

The EL-2601 is a magnetic contact designed for installation on doors and windows.
Installation Procedure
To install magnetic contacts.
1. To open the housing, insert a small
screwdriver at the bottom of the unit
between the front and back cover and
twist the screwdriver to release the cover.
2. Remove the divider separating the battery
from the contacts on the battery holder.
When you apply power and the Tamper
switch is open, the EL-2601 enters Test
mode during which a transmission is sent
every few seconds. You can terminate
Test mode by closing the Tamper switch.
Test mode is automatically terminated
after approximately five minutes.
When handling the PCB, do not apply pressure on the antenna.
3. From the Programming menu, select Devices, Zones [911].
4. Select the zone to which you want to register the transmitter; the
system initiates Registration mode. When Save? appears on the
control system's LCD display, press
5. After registration, press the EL-2601's tamper switch to terminate
Test mode.
6. Before permanently mounting the unit, test the transmitter from the
exact mounting position.
Antenna
LED
Indicator
1cm max.
Operation
Mode Jumper
Location
of wiring
knockout
Figure B.3: EL-2601 (cover off)
.
-96-
Battery
Holder
Tamper
Switch
Loop
Terminals
PCB
Release
Tab
