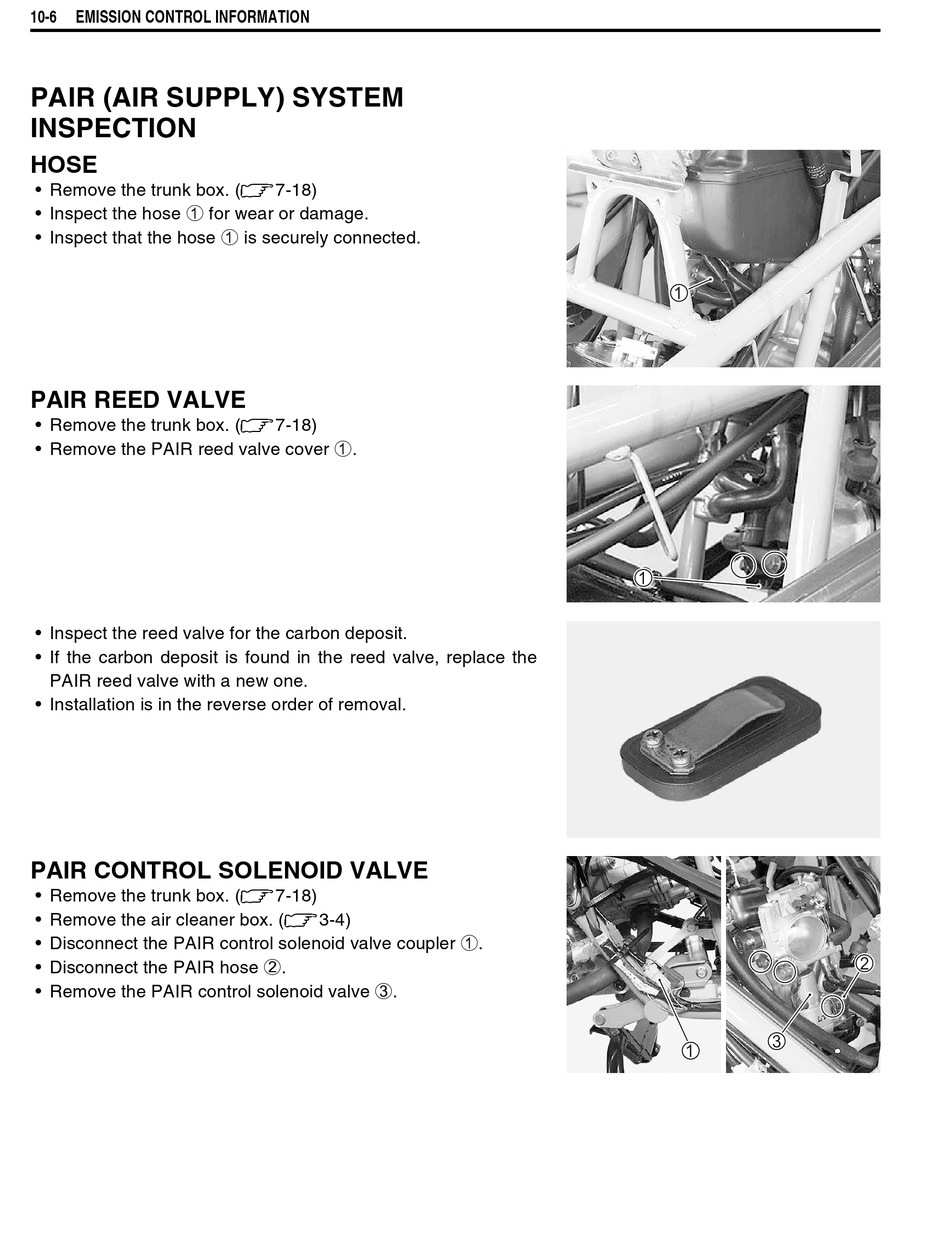

10-6 EMISSION CONTROL INFORMATION
PAIR (AIR SUPPLY) SYSTEM
INSPECTION

HOSE

• Remove the trunk box. (!7-18)
• Inspect the hose 1 for wear or damage.
• Inspect that the hose 1 is securely connected.

PAIR REED VALVE

• Remove the trunk box. (!7-18)
• Remove the PAIR reed valve cover 1.
• Inspect the reed valve for the carbon deposit.
• If the carbon deposit is found in the reed valve, replace the
PAIR reed valve with a new one.
• Installation is in the reverse order of removal.

PAIR CONTROL SOLENOID VALVE

• Remove the trunk box. (!7-18)
• Remove the air cleaner box. (!3-4)
• Disconnect the PAIR control solenoid valve coupler 1.
• Disconnect the PAIR hose 2.
• Remove the PAIR control solenoid valve 3.
