Managing Overlay Properties

The Overlay tab allows you to choose the output file for the overlay, its
live memory, and its linking algorithm.
To specify overlay properties:
1. Right-click an overlay object in the Memory Map pane.
2. Choose Properties and click on the Overlay tab

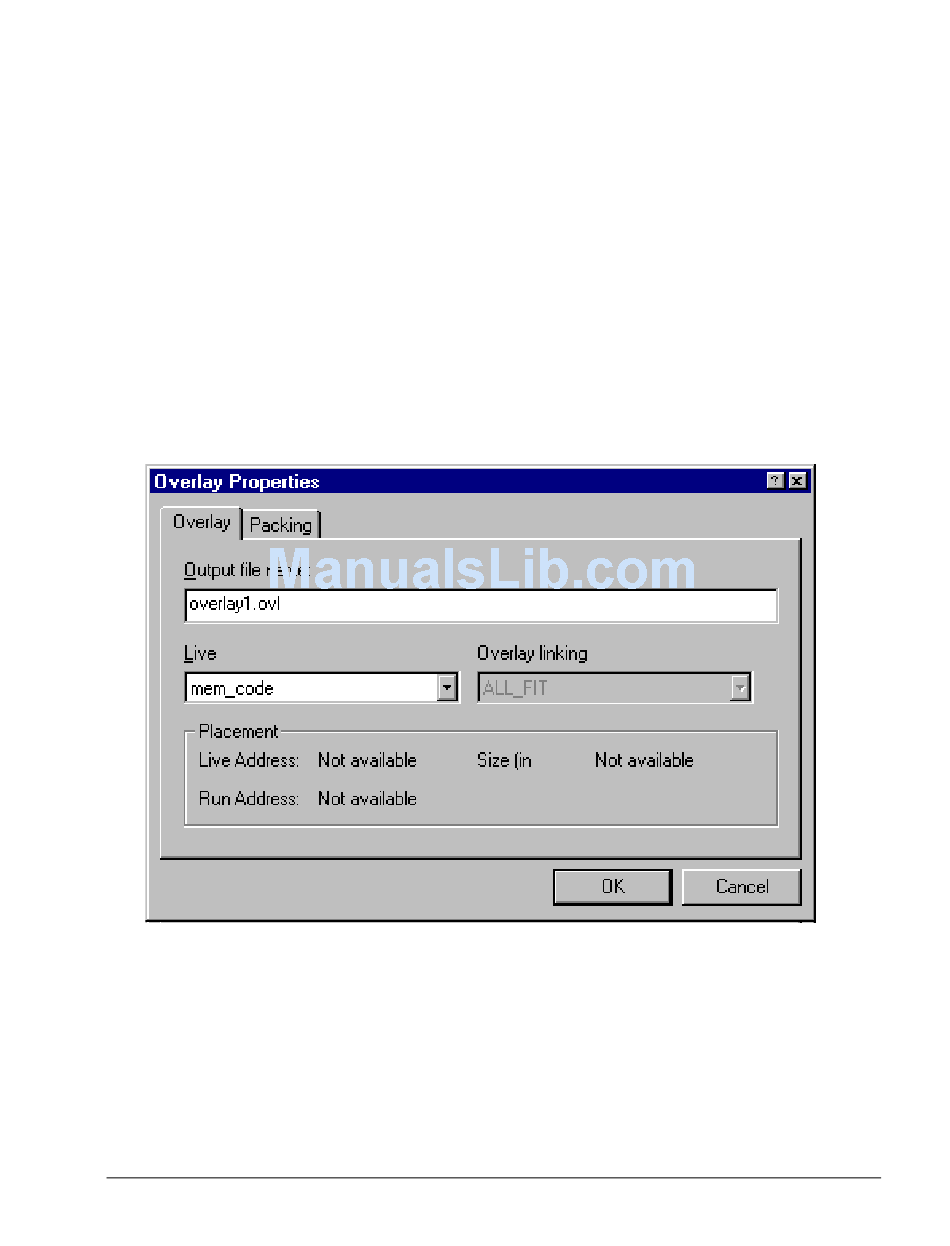

Figure 4-52. Overlay Properties Dialog Box – Overlay Tab
The Live memory drop-down list contains all output sections or memory
segments within one output section. The " live " memory is where the over-
lay is stored before it is swapped into memory.
VisualDSP++ 3.5 Linker and Utilities Manual
for 16-Bit Processors
Expert Linker
(Figure 4-52)
