Memory Map Pane
View Global Properties – Displays a Global Properties dialog box that
lists the map file generated after you link the project. It also provides
access to some processor and setup information (see
page 4-52).

Tree View Memory Map Representation

In the tree view (selected by right-clicking and choosing View Mode ->
Memory Map Tree), the memory map is displayed with memory seg-
ments at the top level.

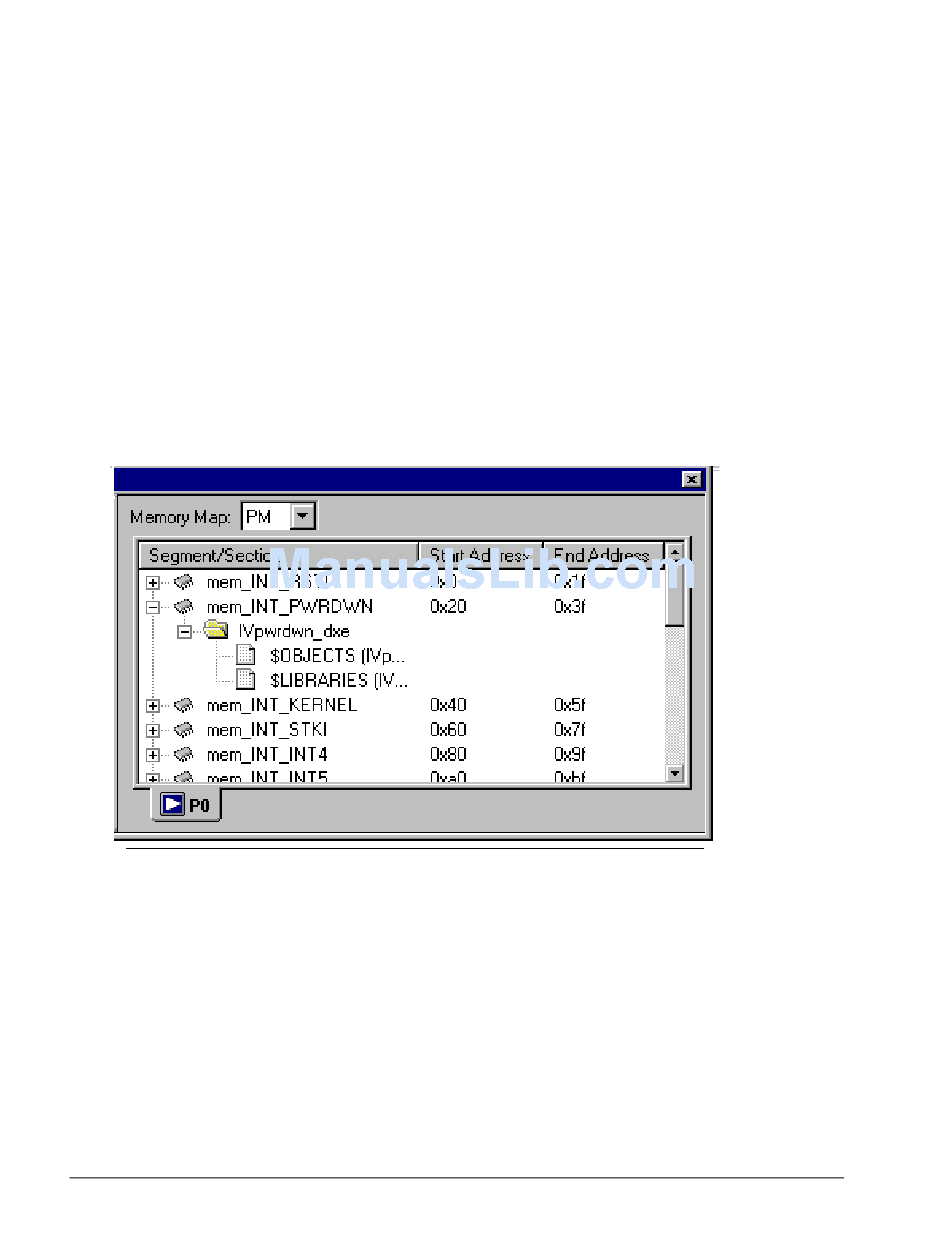

Figure 4-16. Expert Linker Window – Memory Map
Each memory segment may have one or more output sections under it.
Input sections mapped to an output section appear under that output
section.
The start address and size of the memory segments display in separate col-
umns. If available, the start address and the size of each output section are
displayed (for example, after you link the project).
