Viewing Symbols

Symbols can be displayed per processor program (.
or per input section. Initially, symbol data is in the same order in which it
appears in the linker's map output. Sort symbols by name, address, and so
on by clicking the column headings.

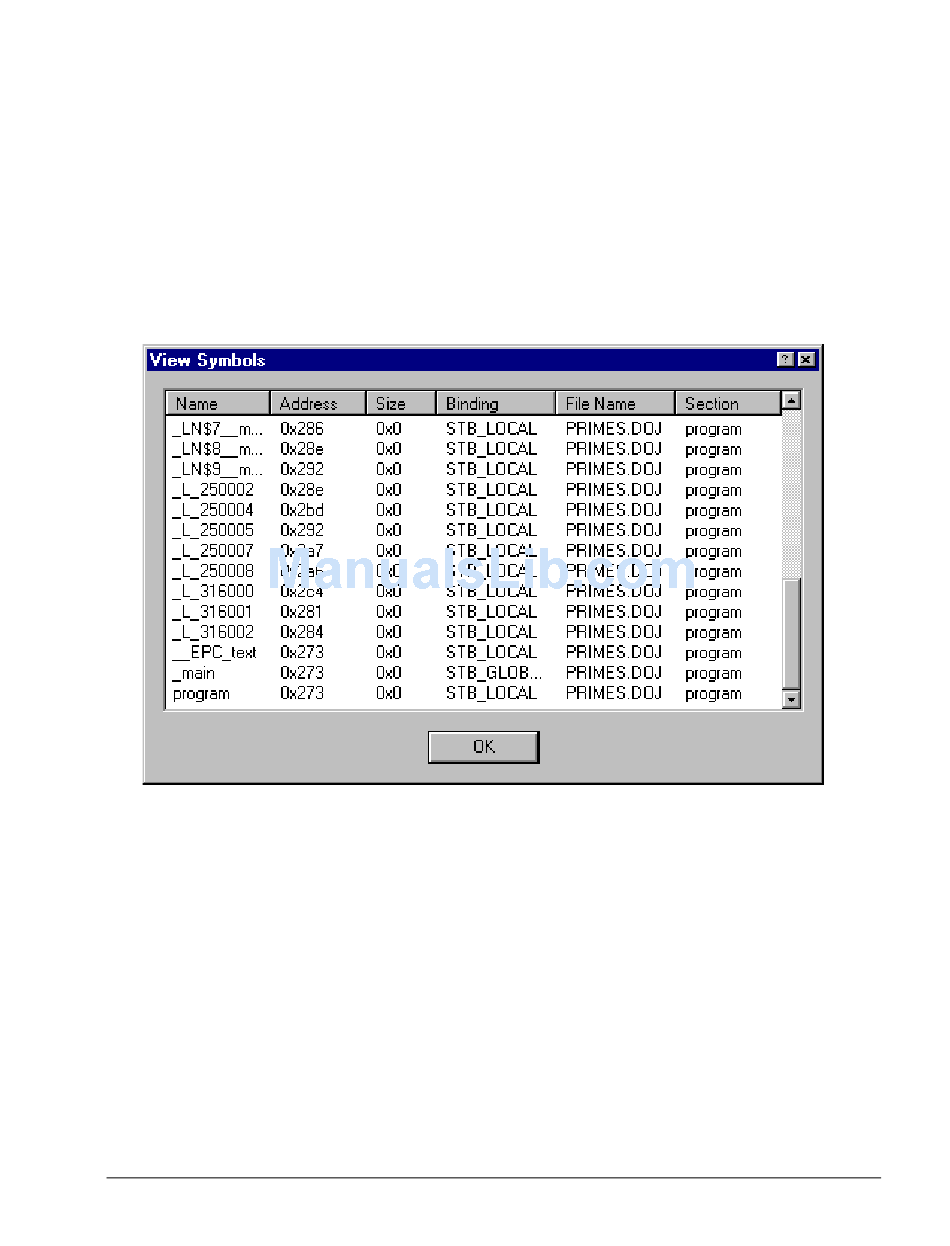

Figure 4-31. View Symbols Dialog Box
To view symbols
1. In the post-link view of the Memory Map pane, select the item
(memory segment, output section, or input section) whose symbols
you want to view.
2. Right-click and choose View Symbols.
The View Symbols dialog box displays the selected item's symbols.
The symbol's address, size, binding, file name, and section appear
beside the symbol's name.
VisualDSP++ 3.5 Linker and Utilities Manual
for 16-Bit Processors
(Figure 4-31):
Expert Linker
), per overlay (.
DXE
),
OVL
4-39
