The Memory Map pane has tabbed pages. You can page through the
memory maps of the processors and shared memories to view their
makeup. The two viewing modes are a tree view and a graphical view.
Select these views and other memory map features by means of the
right-click (context) menu. All procedures involving memory map han-
dling assume the Expert Linker window is open.
The Memory Map pane displays a tooltip when you move the mouse cur-
sor over an object in the display. The tooltip shows the object's name,
address, and size. The system also uses representations of overlays, which
display in "run" space and "live" space.
Invalid Memory Segment Notification:
When a memory segment is invalid (for example, when a memory range
overlaps another memory segment), the memory width is invalid. The tree
shows an Invalid Memory Segment icon (also see
page 4-15). Move the mouse pointer over the icon and a tooltip displays a
message describing why the segment is invalid.

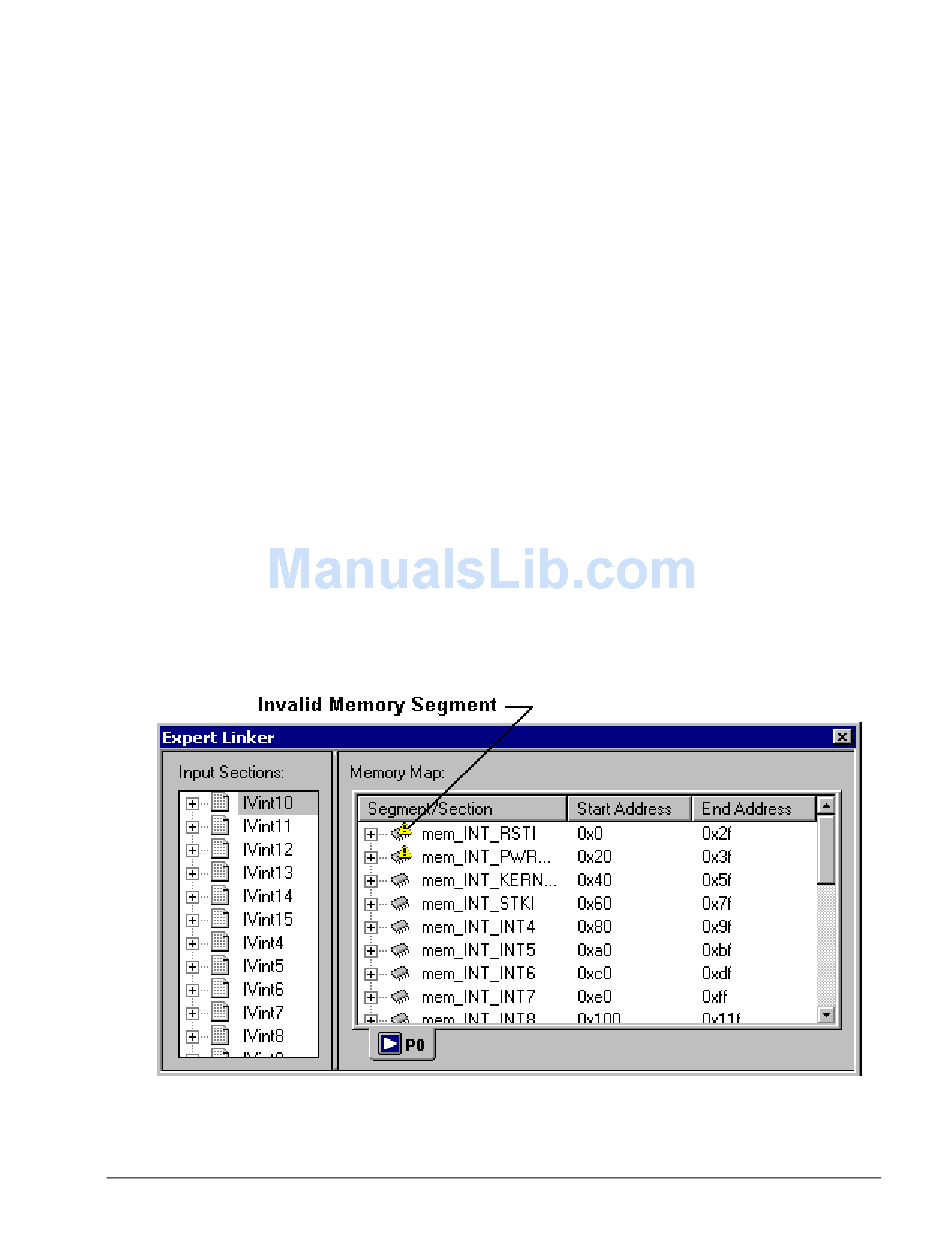

Figure 4-15. Memory Map With Invalid Memory Segments
