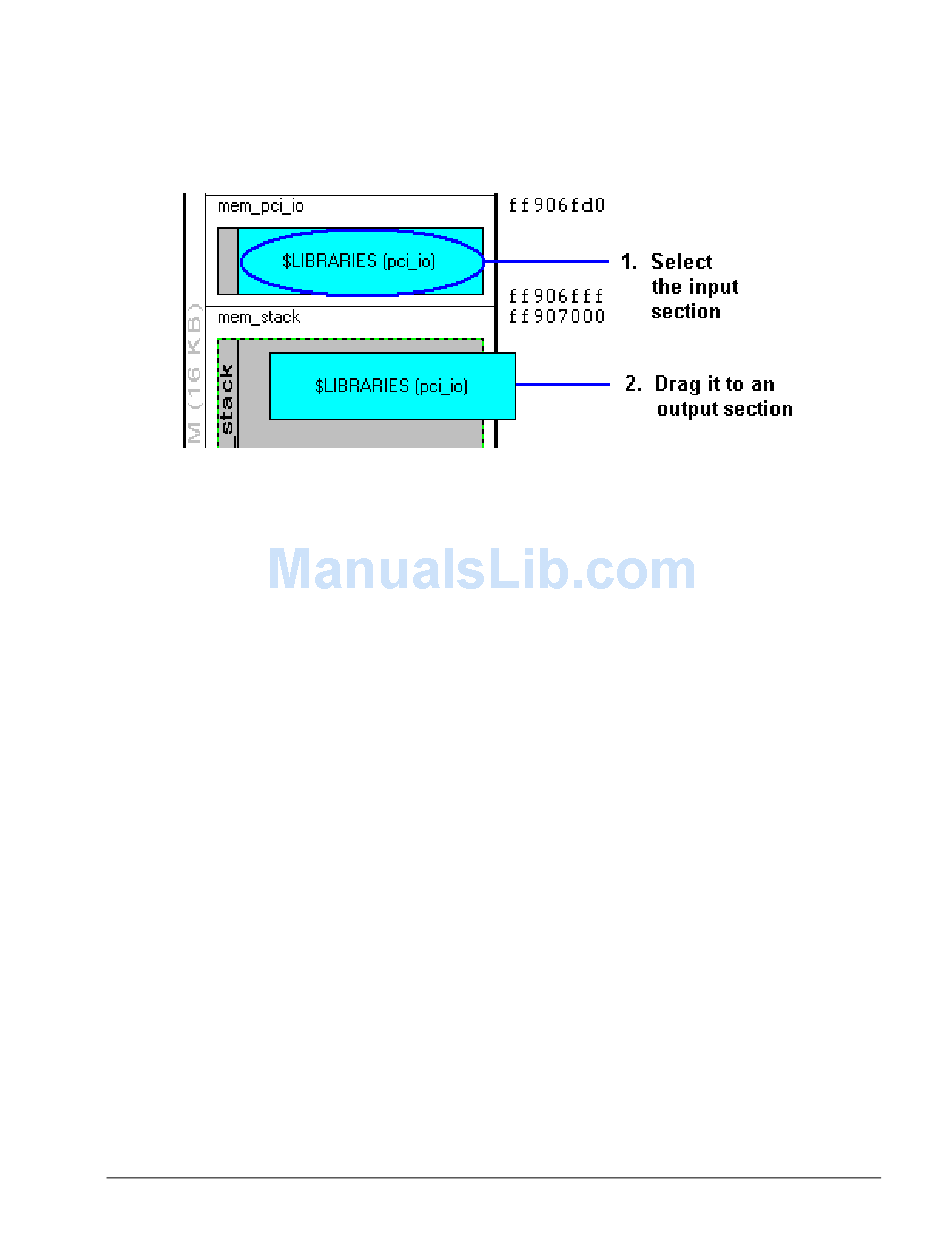

Figure 4-20. Dragging and Dropping an Object

Specifying Pre- and Post-Link Memory Map View

View the memory map from two perspectives: pre-link view and post-link
view. Pre-link view is typically used to place input sections. Post-link view
is typically used to view where the input sections are placed after you link
the project. Other information (such as the sizes of each section, symbols,
and the contents of each section) is available after linking.
• To enable pre-link view from the Memory Map pane, right-click
and choose View and Mapping Strategy (Pre-Link).
on page 4-30
• To enable post-link view from the Memory Map pane, right-click
and choose View and Link Results (Post-Link).
page 4-31
