Memory Map Pane
Click the up arrow or down arrow button in the header to display a previ-
ous or next overlay in "run" space. Click the browse button to display the
list of all available overlays. The header shows the number of overlays in
this "run space" and the current overlay number.

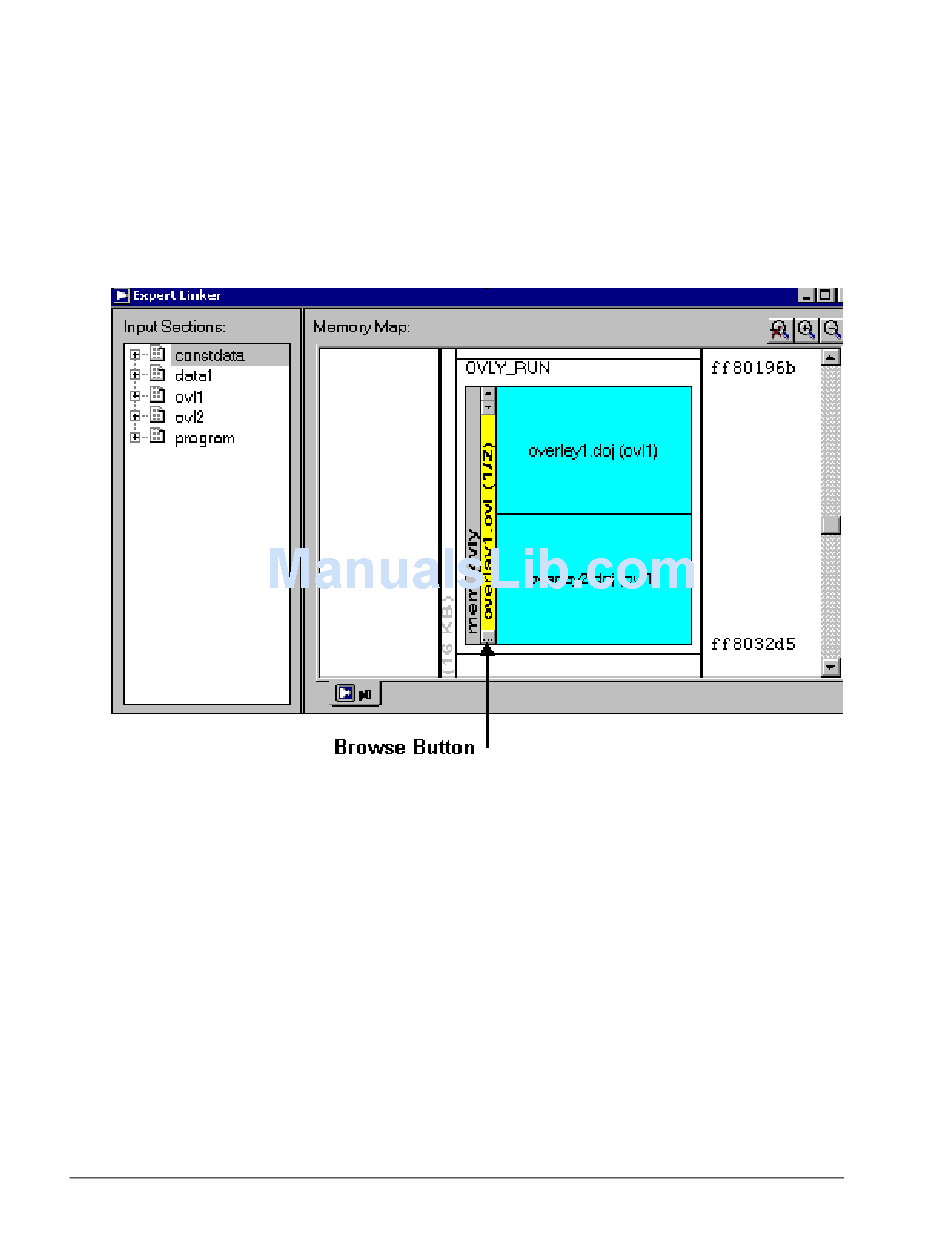

Figure 4-27. Graphical Memory Map Showing an Overlay Run Space
To create an overlay in the "run" space:
1. Right-click on an output section.
2. Choose New -> Overlay.
3. Select the "live" space from the Overlay Properties dialog box. The
new overlay appears in the "run" and "live" spaces in two different
colors in the memory map.
