The Expert Linker window contains two panes:
• The Input Sections pane
project's input sections (see
• The Memory Map pane displays each memory map in a tree or
graphical representation (see

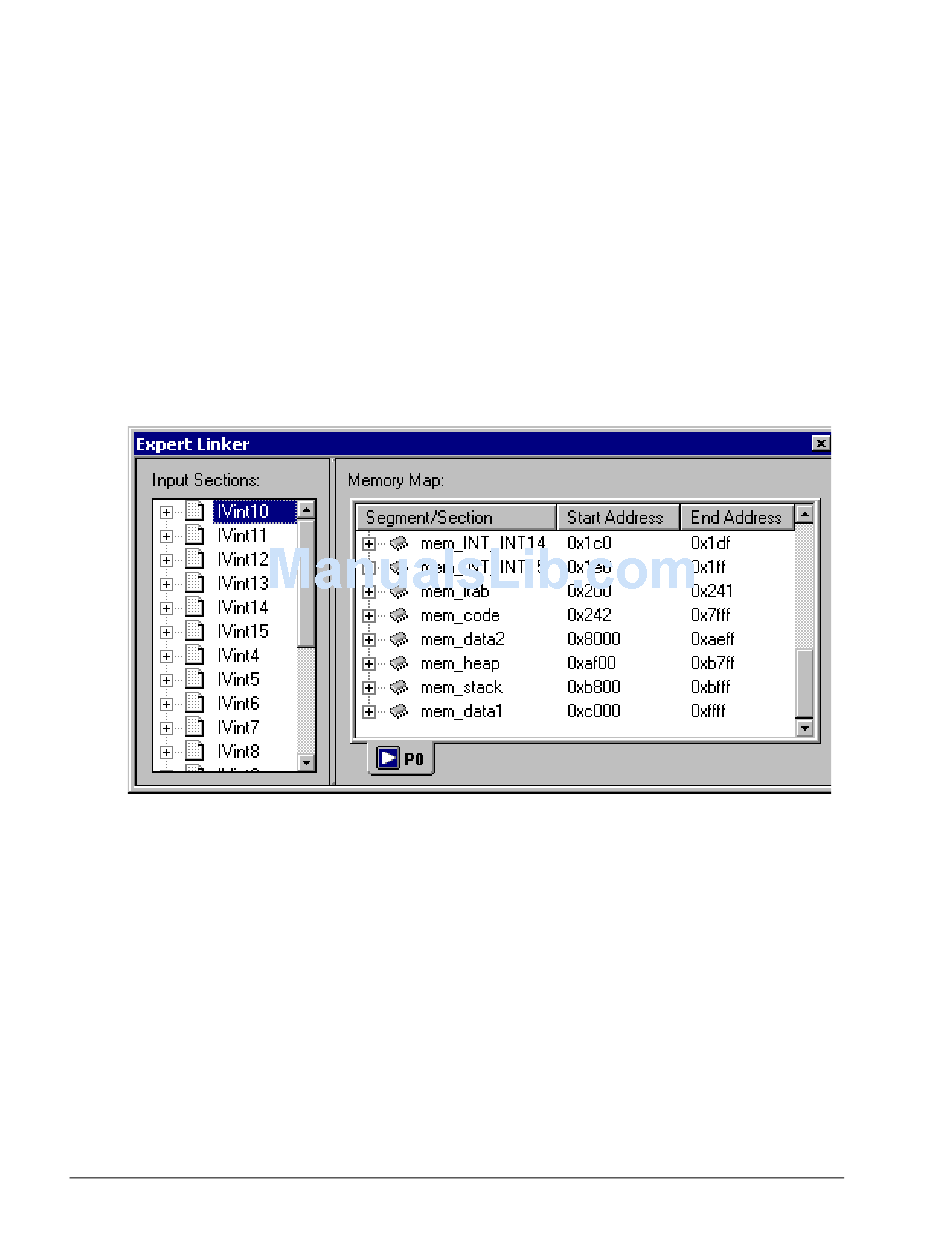

Figure 4-7. Expert Linker Window
Using commands in the LDF, the linker reads the input sections from
object files (
.DOJ
file. The LDF defines the DSP's memory and indicates where within that
memory the linker is to place the input sections.
Using drag-and-drop, you can map an input section to an output section
in the memory map. Each memory segment may have one or more output
sections under it. Input sections that have been mapped to an output sec-
4-10
(Figure
) and places them in output sections in the executable
