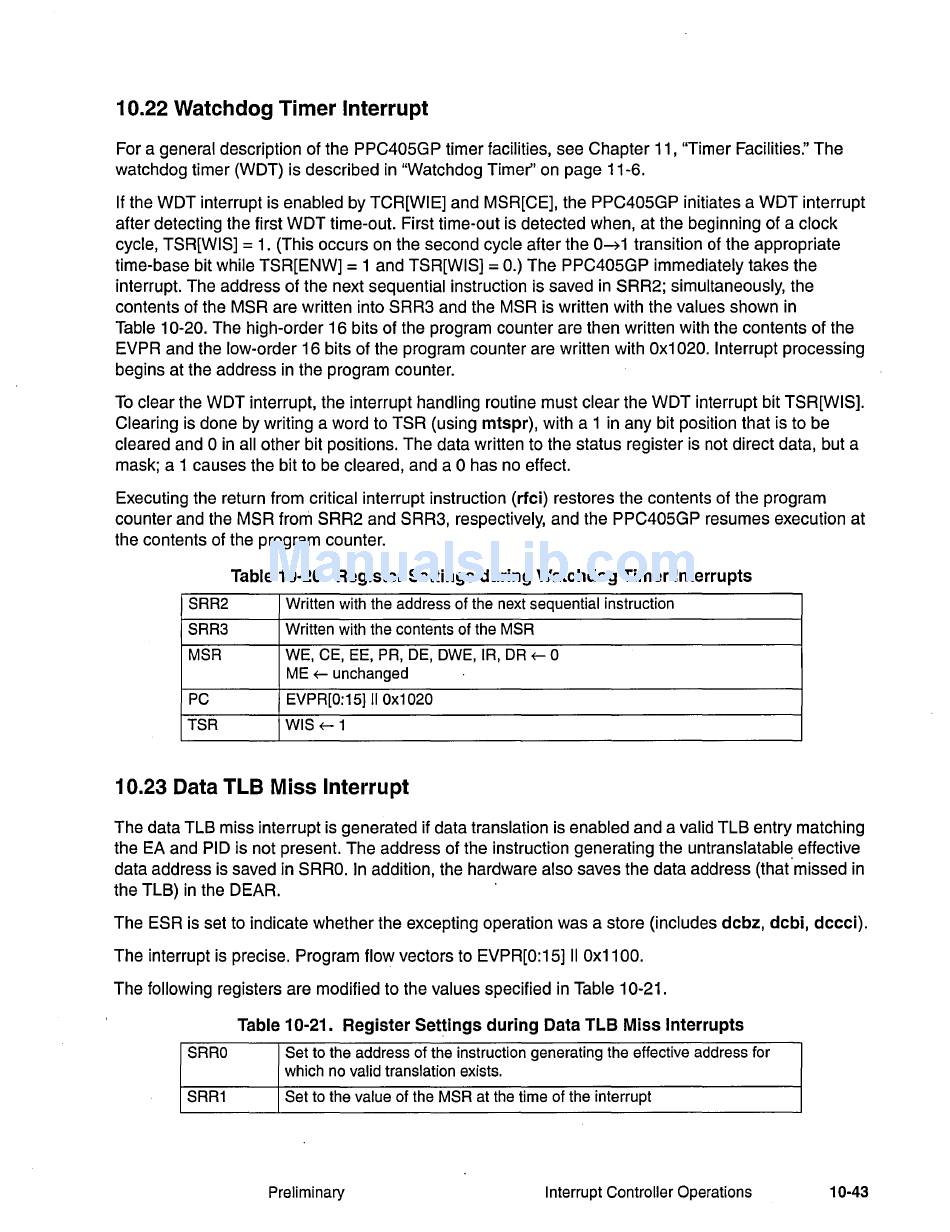

10.22 Watchdog Timer Interrupt
For a general description of the PPC405GP timer facilities, see Chapter 11, "Timer Facilities:' The
watchdog timer (WDT) is described in "Watchdog Timer" on page 11-6.
If the WDT interrupt is enabled by TCR[WIE] and MSR[CE], the PPC405GP initiates a WDT interrupt
after detecting the first WDT time-out. First time-out is detected when, at the beginning of a clock
cycle, TSR[WIS] = 1. (This occurs on the second cycle after the
O~
1 transition of the appropriate
time-base bit while TSR[ENW]
=
1 and TSR[WIS]
=
0.) The PPC405GP immediately takes the
interrupt. The address of the next sequential instruction is saved in SRR2; simultaneously, the
contents of the MSR are written into SRR3 and the MSR is written with the values shown in
Table 10-20. The high-order 16 bits of the program counter are then written with the contents of the
EVPR and the low-order 16 bits of the program counter are written with Ox1020. Interrupt processing
begins at the address in the program counter.
To clear the WDT interrupt, the interrupt handling routine must clear the WDT interrupt bit TSR[WIS].
Clearing is done by writing a word to TSR (using mtspr), with a 1 in any bit position that is to be
cleared and 0 in all other bit positions. The data written to the status register is not direct data, but a
mask; a 1 causes the bit to be cleared, and a 0 has no effect.
Executing the return from critical interrupt instruction (rfci) restores the contents of the program
counter and the MSR from SRR2 and SRR3, respectively, and the PPC405GP resumes execution at
the contents of the program counter.
Table 10-20. Register Settings during Watchdog Timer Interrupts
SRR2 Written with the address of the next sequential instruction
SRR3 Written with the contents of the MSR
MSR WE, CE, EE, PR, DE, OWE, IR, DR
~
0
ME ~ unchanged
PC EVPR[O:15] II Ox1020
TSR WIS~1
10.23 Data TLB Miss Interrupt
The data TLB miss interrupt is generated if data translation is enabled and a valid TLB entry matching
the EA and PID is not present. The address of the instruction generating the untranslatable effective
data address is saved in SRRO. In addition, the hardware also saves the data address (that'missed in
the TLB) in the DEAR. '
The ESR is set to indicate whether the excepting operation was a store (includes dcbz, dcbi, dccci).
The interrupt is precise. Program flow vectors to EVPR[0:15] II Ox11 00.
The following registers are modified to the values specified in Table 10-21.
Table 10-21. Register Settings during Data TLB Miss Interrupts
SRRO Set to the address of the instruction generating the effective address for
which no valid translation exists.
SRR1 Set to the value of the MSR at the time of the interrupt
Preliminary Interrupt Controller Operations 10-43
