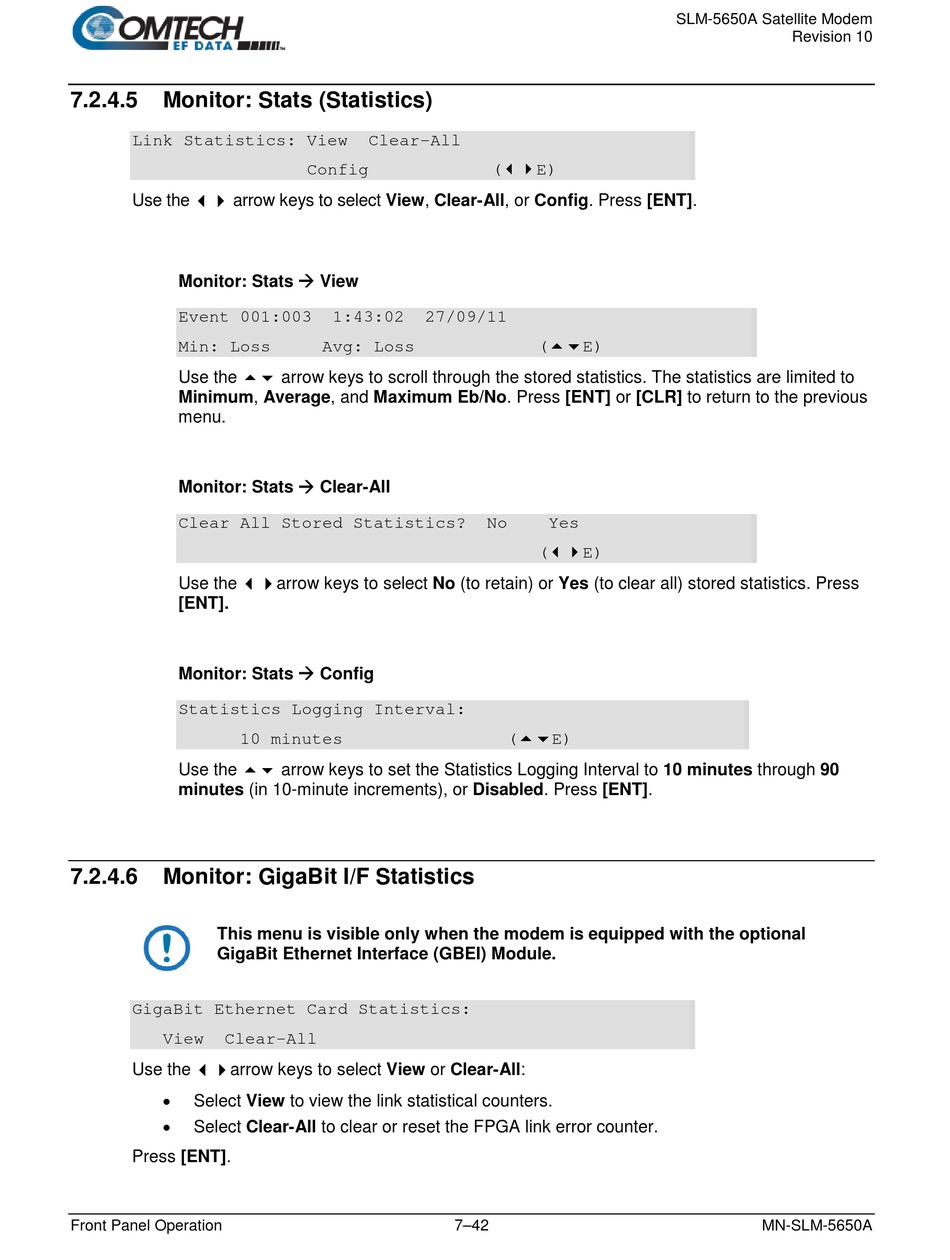

7.2.4.5

Monitor: Stats (Statistics)

Link Statistics: View
Use the  arrow keys to select View, Clear-All, or Config. Press [ENT].
Monitor: Stats  View
Event 001:003
Min: Loss
Use the  arrow keys to scroll through the stored statistics. The statistics are limited to
Minimum, Average, and Maximum Eb/No. Press [ENT] or [CLR] to return to the previous
menu.
Monitor: Stats  Clear-All
Clear All Stored Statistics?
Use the arrow keys to select No (to retain) or Yes (to clear all) stored statistics. Press
[ENT].
Monitor: Stats  Config
Statistics Logging Interval:
10 minutes
Use the  arrow keys to set the Statistics Logging Interval to 10 minutes through 90
minutes (in 10-minute increments), or Disabled. Press [ENT].
7.2.4.6

Monitor: GigaBit I/F Statistics

This menu is visible only when the modem is equipped with the optional
GigaBit Ethernet Interface (GBEI) Module.
GigaBit Ethernet Card Statistics:
View Clear-All
Use the arrow keys to select View or Clear-All:
•
Select View to view the link statistical counters.
•
Select Clear-All to clear or reset the FPGA link error counter.
Press [ENT].
Front Panel Operation
Clear-All
Config
1:43:02 27/09/11
Avg: Loss
7–42
(E)
(E)
No Yes
(E)
(E)
