CDM-Qx Satellite Modem
Front Panel Operation
(Monitor%Event-Log%View) – VIEW STORED EVENTS
The user may scroll backwards or forwards through the entries in the event log, using the
#$ arrow keys. Pressing
The event log can store up to 255 events. When a fault condition occurs, it is time-
stamped and put into the log. Similarly, when the fault condition clears, this is also
recorded, as shown below:
If the user selects Clear-All, the event log is cleared, and the user is taken directly back
to the previous menu. However, if there are faults present on the unit at this time, they
will be re-time-stamped, and new log entries will be generated.
IMPORTANT

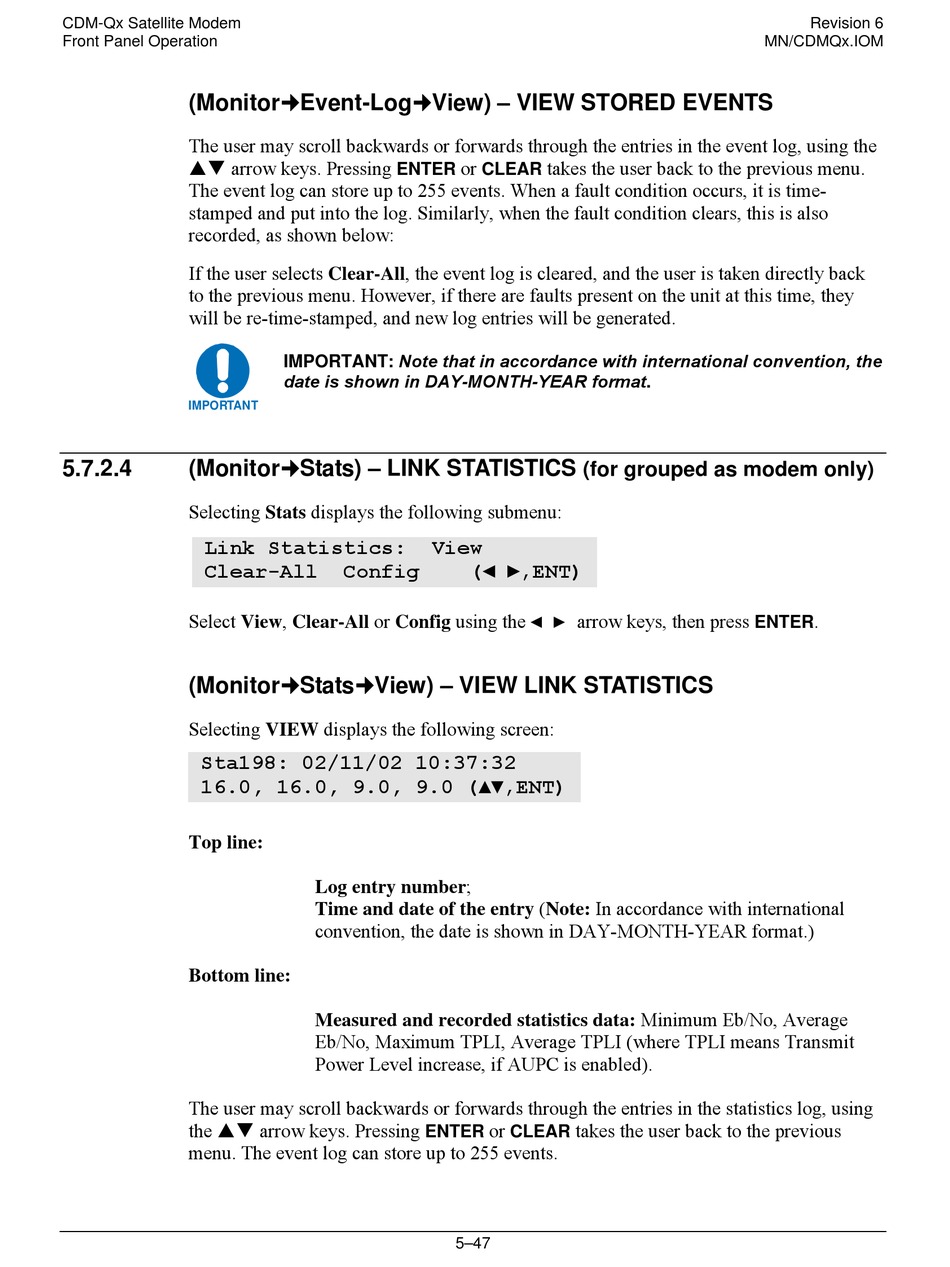

5.7.2.4 (Monitor%Stats) – LINK STATISTICS
Selecting Stats displays the following submenu:
Link Statistics:
Clear-All
Select View, Clear-All or Config using the ◄ ► arrow keys, then press
(Monitor%Stats%View) – VIEW LINK STATISTICS
Selecting VIEW displays the following screen:
Sta198: 02/11/02 10:37:32
16.0, 16.0, 9.0, 9.0 (▲▼,ENT)
Top line:
Bottom line:
The user may scroll backwards or forwards through the entries in the statistics log, using
the #$ arrow keys. Pressing
menu. The event log can store up to 255 events.
or
ENTER
IMPORTANT: Note that in accordance with international convention, the
date is shown in DAY-MONTH-YEAR format.
View
Config
Log entry number;
Time and date of the entry (Note: In accordance with international
convention, the date is shown in DAY-MONTH-YEAR format.)
Measured and recorded statistics data: Minimum Eb/No, Average
Eb/No, Maximum TPLI, Average TPLI (where TPLI means Transmit
Power Level increase, if AUPC is enabled).
ENTER
5–47
takes the user back to the previous menu.
CLEAR
(for grouped as modem only)
(◄ ►,ENT)
or takes the user back to the previous
CLEAR
Revision 6
MN/CDMQx.IOM
.
ENTER
