v If the system hangs on a progress code, follow the suggested actions in the order in which they are listed
in the Action column until the problem is resolved.
v See Chapter 3, "Parts listing, Types 7988 and 8844," on page 137 to determine which components are
CRUs and which components are FRUs.
v If an action step is preceded by "(Trained service technician only)," that step must be performed only by a
trained service technician.

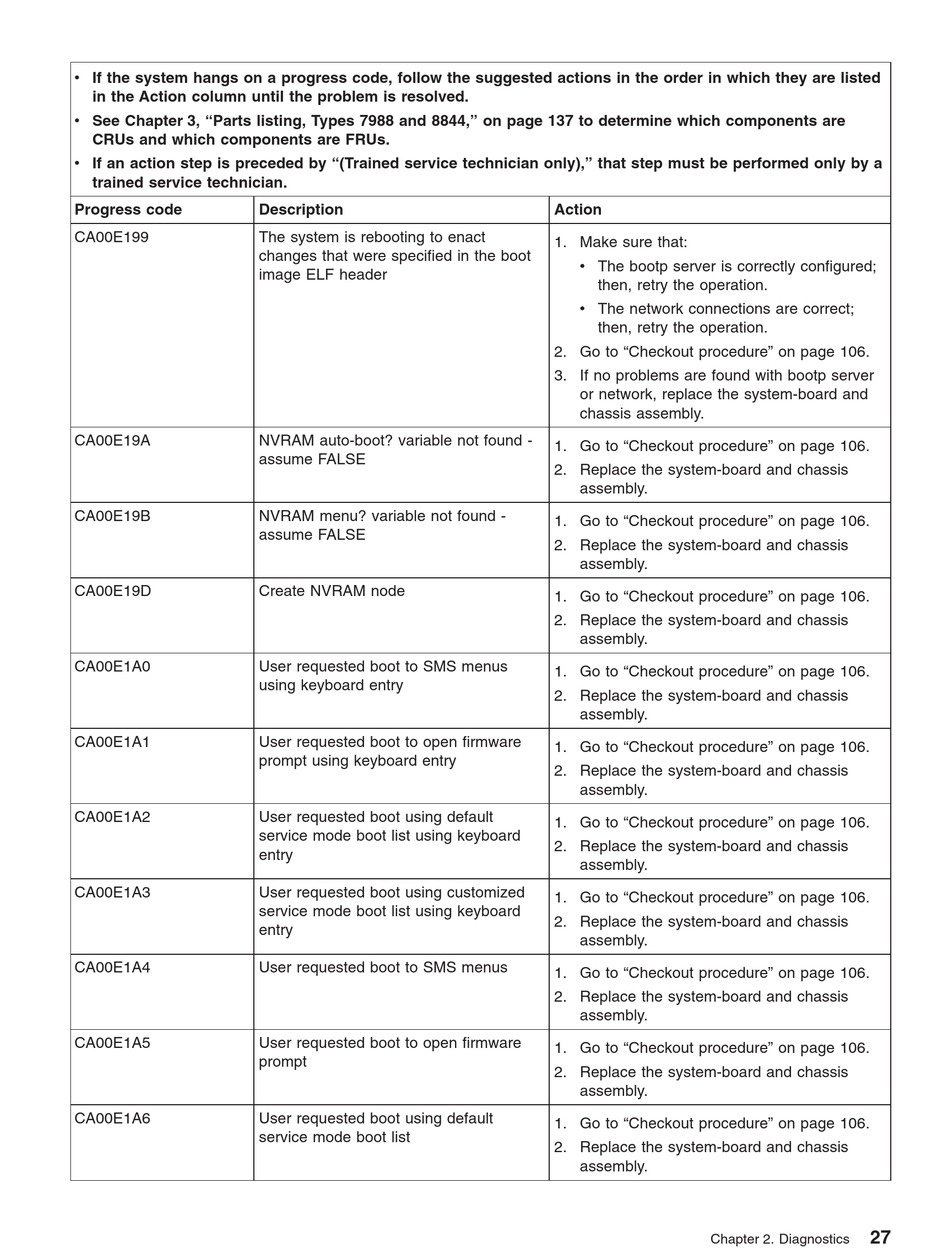

Progress code
CA00E199
CA00E19A
CA00E19B
CA00E19D
CA00E1A0
CA00E1A1
CA00E1A2
CA00E1A3
CA00E1A4
CA00E1A5
CA00E1A6
Description
The system is rebooting to enact
changes that were specified in the boot
image ELF header
NVRAM auto-boot? variable not found -
assume FALSE
NVRAM menu? variable not found -
assume FALSE
Create NVRAM node
User requested boot to SMS menus
using keyboard entry
User requested boot to open firmware
prompt using keyboard entry
User requested boot using default
service mode boot list using keyboard
entry
User requested boot using customized
service mode boot list using keyboard
entry
User requested boot to SMS menus
User requested boot to open firmware
prompt
User requested boot using default
service mode boot list
Action
1. Make sure that:
v The bootp server is correctly configured;
then, retry the operation.
v The network connections are correct;
then, retry the operation.
2. Go to "Checkout procedure" on page 106.
3. If no problems are found with bootp server
or network, replace the system-board and
chassis assembly.
1. Go to "Checkout procedure" on page 106.
2. Replace the system-board and chassis
assembly.
1. Go to "Checkout procedure" on page 106.
2. Replace the system-board and chassis
assembly.
1. Go to "Checkout procedure" on page 106.
2. Replace the system-board and chassis
assembly.
1. Go to "Checkout procedure" on page 106.
2. Replace the system-board and chassis
assembly.
1. Go to "Checkout procedure" on page 106.
2. Replace the system-board and chassis
assembly.
1. Go to "Checkout procedure" on page 106.
2. Replace the system-board and chassis
assembly.
1. Go to "Checkout procedure" on page 106.
2. Replace the system-board and chassis
assembly.
1. Go to "Checkout procedure" on page 106.
2. Replace the system-board and chassis
assembly.
1. Go to "Checkout procedure" on page 106.
2. Replace the system-board and chassis
assembly.
1. Go to "Checkout procedure" on page 106.
2. Replace the system-board and chassis
assembly.
