Bat t e r y Re pla c e m e nt , Alt e r nat e Bat t e r y Door
•
pump.
•
To open the door, depress the recessed release pin. (Use a
small coin such as a penny to depress the pin.)
•
Do not use a screwdriver or other sharp objects to open
battery compartment door.
•
Slide the battery door down and remove it from the pump.
•
If your pump contains a plastic tab between the batteries,
pull up on the tab until the batteries can be removed.
Otherwise:
•
Using the small coin (penny) pry up and out on the top (+)
edge of the battery to cause the battery to pop out.
•
Use the same technique on the second battery.
•
Do not use a screwdriver or other sharp objects to pry
batteries out of the pump.
•
Install two new C-cell batteries by depressing the coil spring
with bottom (–) end of the battery and sliding the top of
the battery into place.
•
Please note: Both positive poles are at the top of the
battery compartment. To depress the coil spring, insert the
battery at a slight angle.
•
Slide the battery door compartment back to its closed
position until the recessed pin locks into place.

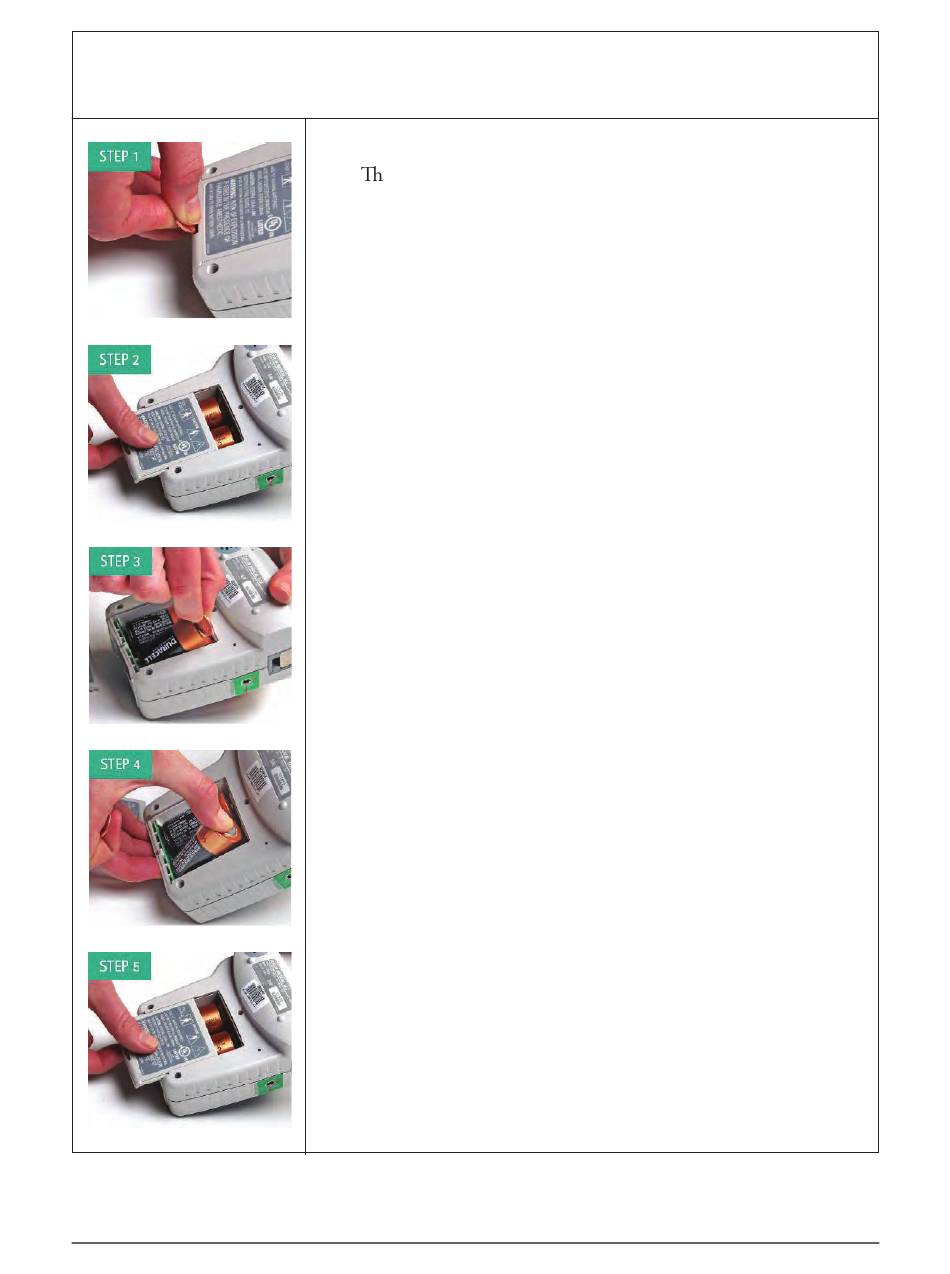

Figure 1 .1 1
e battery door compartment is located on the back of the
