PUMP ALARMS & RESOLUTIONS
LCD DISPLAY RESOLUTION
Press PAUSE, add another IV bag,
INFUSION
select REPEAT Rx and confirm
COMPLETE
fields, or turn the pump off.
Remove air from administration set
ALARM
and IV bag. (Disconnect set from
AIR-IN-LINE
patient's access site prior to using
prime function.)
Check administration set from the
pump to patient's access site for
ALARM
cause of occlusion. Correct obstruc-
DOWN
tion per protocol. Consider changing
OCCLUSION the pressure setting from Low to High.
When occlusion is resolved, the alarm
will stop and pumping will resume.
Check administration set from IV
ALARM
bag to pump for cause of occlusion.
UP
When ready to begin infusion, press
OCCLUSION PAUSE, select RESUME, and press
RUN.
Check for excessive pressure on IV
ALARM
bag. When ready to begin infusion,
HIGH UP
press PAUSE, select RESUME, and
PRESSURE
press RUN.
Install appropriate Curlin Medical
ALARM
administration set. Use ONLY
SET NOT
Curlin Medical administration sets.
INSTALLED See User's Manual or IV set directions
for proper installation instructions.
ALARM
To resolve, press RUN and resume
UNATTENDED
the therapy or continue with operating
PUMP procedure.
ALARM
Replace set, prime set if necessary,
REPLACE
select RESUME and press RUN
SET 3 when ready to begin.
Check placement of administration
ALARM
set and close pump door properly.
DOOR OPEN
See User's Manual for instructions.
ALARM
Press the pause key and turn pump
EMPTY
off. Install 2 new "C" size alkaline
BATTERY batteries.
ERROR
If an error code occurs, turn pump off
CODE
and consult provider or manufacturer.
OPTIONS
1 LOCK: Press NO to change Lock Setting (may need access
code). Press YES to accept new setting.
2 HOURLY TOTAL Press NO then YES to view. Scroll to
review each hour's totals. Press NO to exit.
3 CLEAR HOURLY: Press NO then YES to view. Press YES
to clear, NO to retain and exit.
4 MedLMTS: (Appears only if previously selected) Press NO
to change, YES to accept, enter new rate and press YES
to accept.
5 DOWN OCCLUSION: Press NO to change, YES to accept.
6 AIR SENSITIVITY: Press NO to change, YES to accept.
7 AUDIO: Press 1-9 to hear level, press YES to accept.
8 POWER CHECK: Press NO then YES to check level.
9 ACCEPT OPT? Press YES to accept any changes made.
HOW TO CHANGE THE LOCK SETTING
1 Lock may be initially selected in BIOMED SETUP.
2 When infusing, press OPTIONS key.
3 Scroll to LOCK and press NO to change.
4 Enter access code at prompt.
5 Select NO until the desired lock setting is obtained.
6 Press YES/ENTER to select.
7 Exit Options menu by pressing YES at "ACCEPT OPT?" field.
INSTALLING BATTERIES
1 Turn pump OFF or connect to AC adapter.
2 Open the battery door on the back of pump.
3 Insert 2 new "C" size alkaline (Duracell ProCell) batteries
bottom side first with both positive poles at the top of the
battery compartment.
4 Slide the battery compartment door back into place.
USING THE HELP FUNCTIONS
1 When programming, press the HELP key. While running,
press PAUSE, then press HELP key.
2 When a HELP screen is displayed and there is more text to
read that is not displayed on the screen, or icons will appear,
scroll up and down the text using the ARROW keys.
3 When finished, press the HELP key again to exit the HELP
screen.
Moog Medical Devices Group
tf 800.970.2337
4314 Zevex Park Lane ph 801.264.1001
Salt Lake City, Utah 84123 USA fx 801.264.1051
www.moog.com/medical
Moog is a registered trademark of Moog, Inc. and its subsidiaries. All trademarks indicated herein are
the property of Moog, Inc. and its subsidiaries. © 2011 Moog, Inc. All rights reserved. 46258 Rev. A

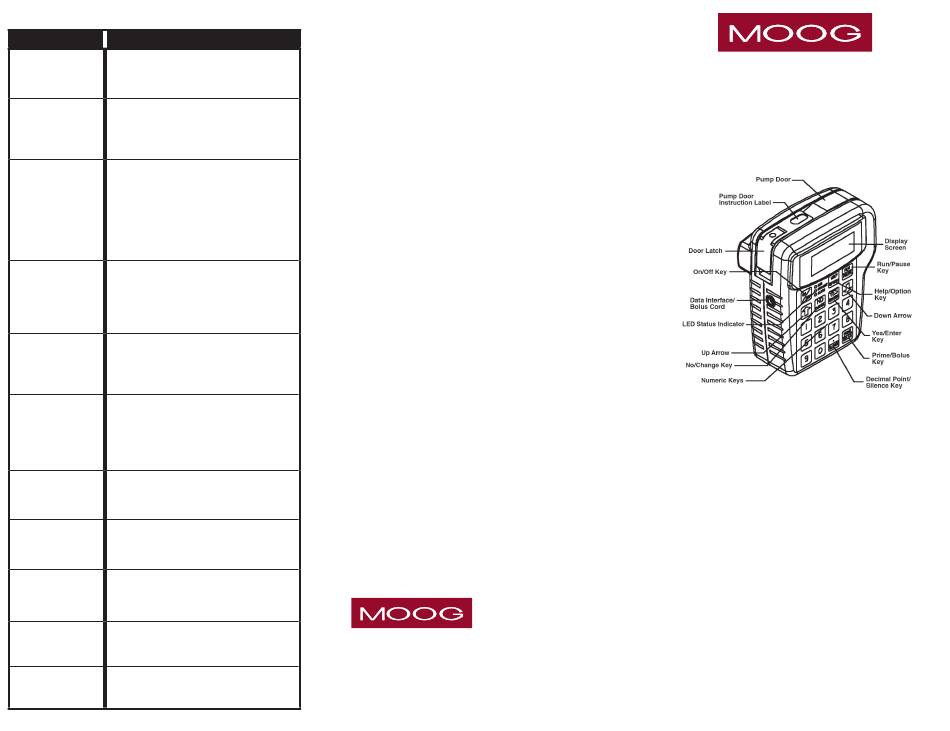

MOOG MEDICAL DEVICES GROUP
Curlin 6000 Series™ V2.01
Ambulatory Infusion Pumps
Clinician's Guide
CONTINUOUS THERAPY
REFER TO USER'S MANUAL
FOR DETAILED INSTRUCTIONS

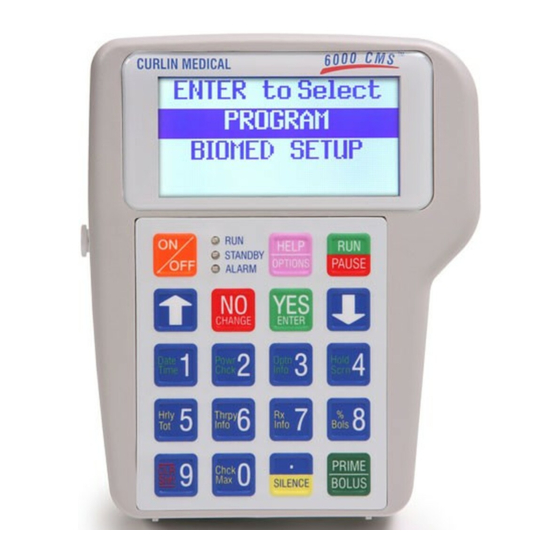

KEYPAD FUNCTION
ON/OFF: Turns pump on and off. When the pump is
running, the PAUSE key must be used to stop infusion first.
Then press the OFF key to turn pump off.
RUN/PAUSE: Starts or pauses the pump. When the pump is
paused, pressing this key will resume pumping.
UP ARROW/ DOWN ARROW: Used to scroll through the dis-
play screens.
NO/CHANGE: Rejects highlighted data.
YES/ ENTER: Accepts highlighted data.
HELP/OPTIONS: Used to request and exit help screen when
pump is paused, or go to options screen when pump is run-
ning.
./SILENCE: Used to silence alarm for 1 minute intervals, and
as a decimal point.
PRIME/BOLUS: Used to prime fluid through the tubing to
clear it of air.
LED INDICATORS
Green- pump is running
Yellow- standby
Red- pump in alarm status
