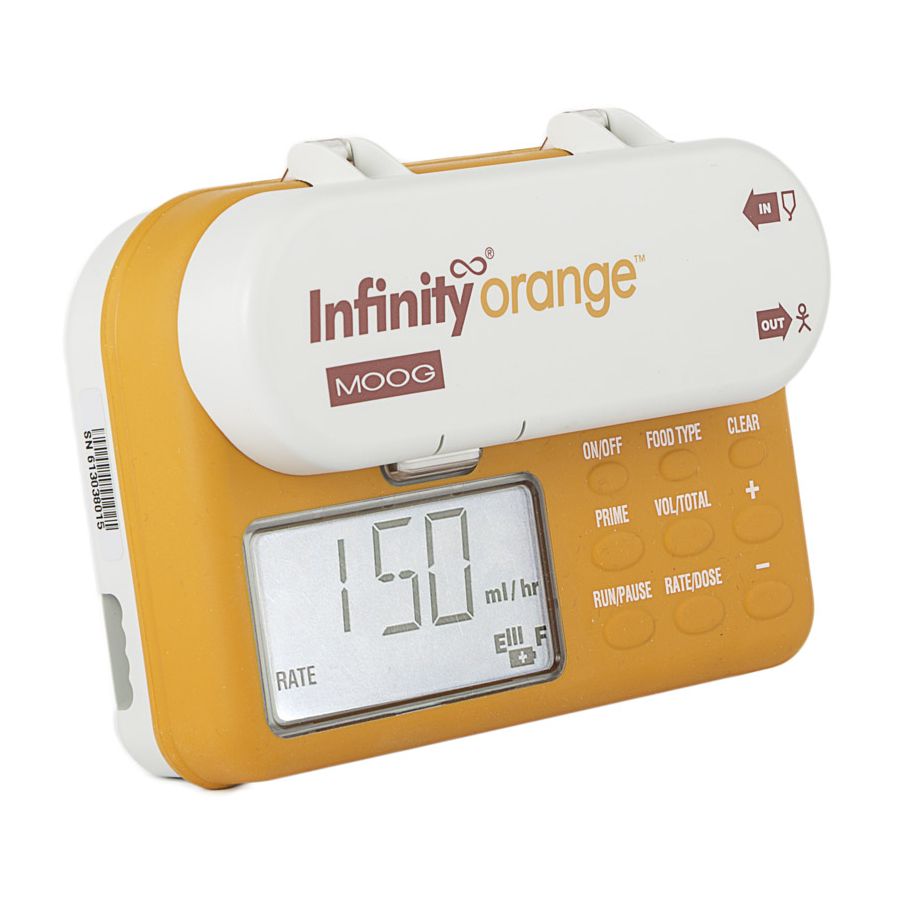

Moog Infinity orange Quick Reference Instructions

Priming and Loading the Disposable Set

These instructions are not a substitute for the operator's manual. Be sure to read the operator's
manual thoroughly prior to operating the pump. See other side for pump operation instructions.
STEP 1
• If you are using the Infinity Spike set, remove
protective cover from connector and insert connector
tip into compatible port on the enteral formula
container (image A). Secure the connector by tightly
screwing threaded components together.
• If you are using the 100 mL, 500 mL, or 1200 mL disposable
set, hold the bag's funnel upright and pour in feeding
formula. Close cap tightly and hang bag (image B).
• If you are using the Screw Cap delivery set, fill a feeding
bottle/container with a 440 mm opening and secure it
to the screw cap. Please the bottle into the suspension
bag and secure the bag to an IV pole (image C).
STEP 2
Remove protective cover from the feeding
tube connector (image D).
STEP 3 - PRIMING
IF PUMP PRIMING: Loop the silicone tubing around
the pump wheel stretching lightly. Seat cassette
into the pump and close the door (image E).
Turn pump on by pressing and holding the
until the pump beeps (image F). Then, press and hold the
PRIME
key until formula reaches the feeding tube connector.
IF MANUAL PRIMING: Gently pinch orange colored tubing below the " " symbol (image
G). While pinching, gently squeeze the bag at the same time to assist fluid flow. Hold
this position until formula reaches the feeding tube connector.
Loop silicone tubing around pump wheel stretching lightly. Seat
cassette into pump (image E). Close pump door.
FOR BACKPACK USE: Turn the bag upside down and tilt the bag to keep air at tubing port (image H).
Gently pinch orange colored tubing below the " " symbol (image G). While pinching, gently squeeze the
bag at the same time to assist fluid flow. Hold this position until formula reaches the feeding tube connector.
Speak live with a Moog Clinical Representative for pump questions
and troubleshooting guidance 24 hours per day, 7 days per week.
Clinical & Customer Support 800.970.2337
Visit infinityfeedingpump.com for additional information
A
C
E
G
ON/OFF
key
Quick Reference
Instructions
B
D
F
H
