3-10 Option Installation
5. Insert the screw removed earlier to secure the expansion board to the support
bracket.
6. Attach any signal cables required by the expansion board.
Replace the system unit cover (see "Replacing the System Unit Cover" in this
7.
section).

Expansion Board Removal

1. Remove the system unit cover (see "Removing the System Unit Cover" in this
section).
2. Label and remove any cables connected to the expansion board.
Remove the screw that secures the board to the support bracket (see "Expansion
3.
Board Installation" in this section).
Pull the board out of the connector. You might have to gently rock the board
4.
from side-to-side to release it from its connector.
Replace the system unit cover (see "Replacing the System Unit Cover" in this
5.
section).

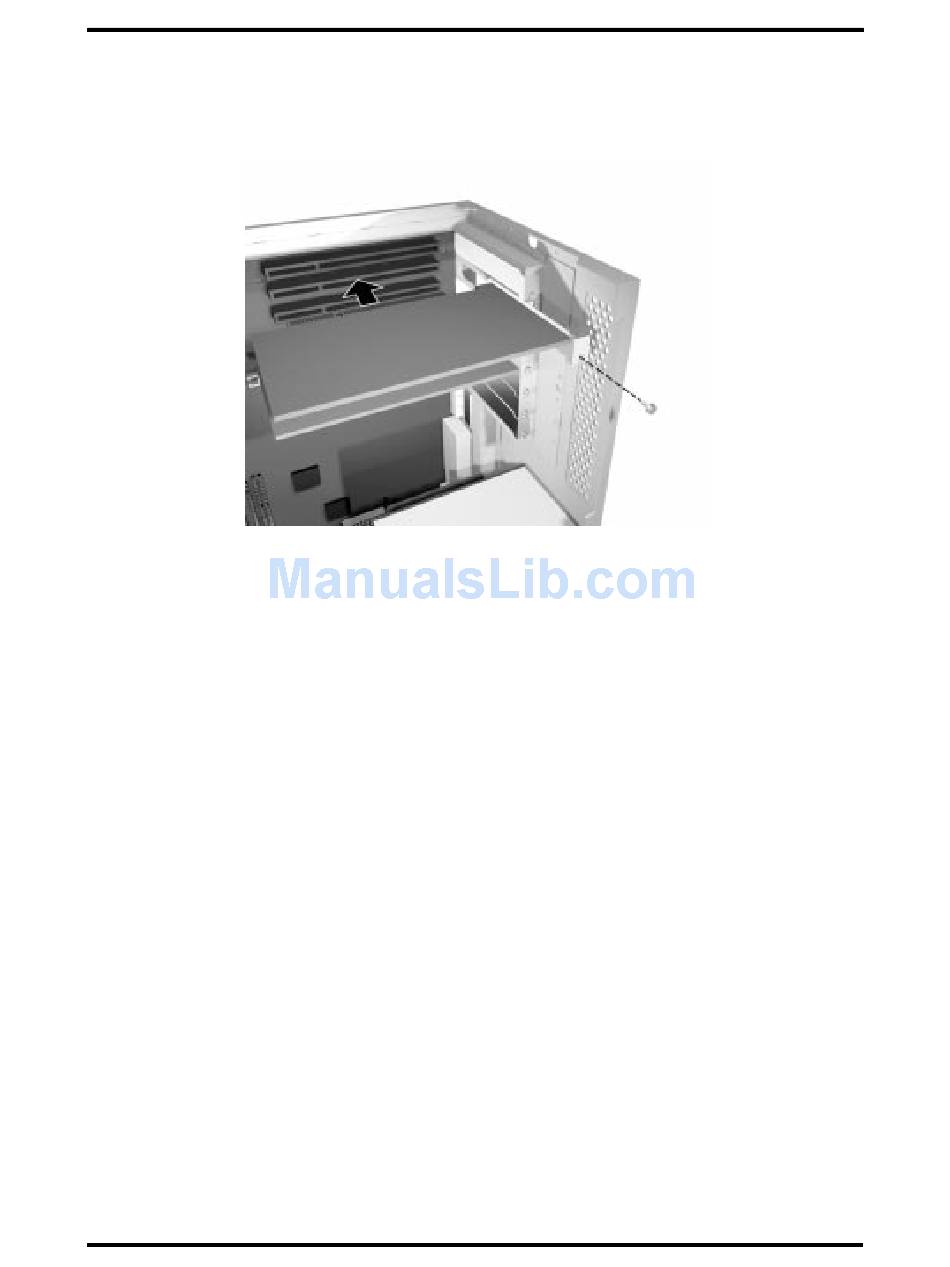

Figure 3-7 Inserting the Expansion Board
