1/2-Inch Hard Disk Drive Removal - NEC POWERMATE PROFESSIONAL - SERVICE MANUAL 05-1997 Service Manual

5-10 Repair

3 1/2-Inch Hard Disk Drive Removal

Remove the 3 1/2-inch hard disk drive as follows:
1. Remove the system unit cover as previously described (see "System Unit Cover
Removal").
2. Unplug the hard disk drive power and signal cables from the hard disk drive (see
Figure 5-12).
NOTE: When reinstalling the drives, note that
all power cables are keyed to fit only in the
correct position.

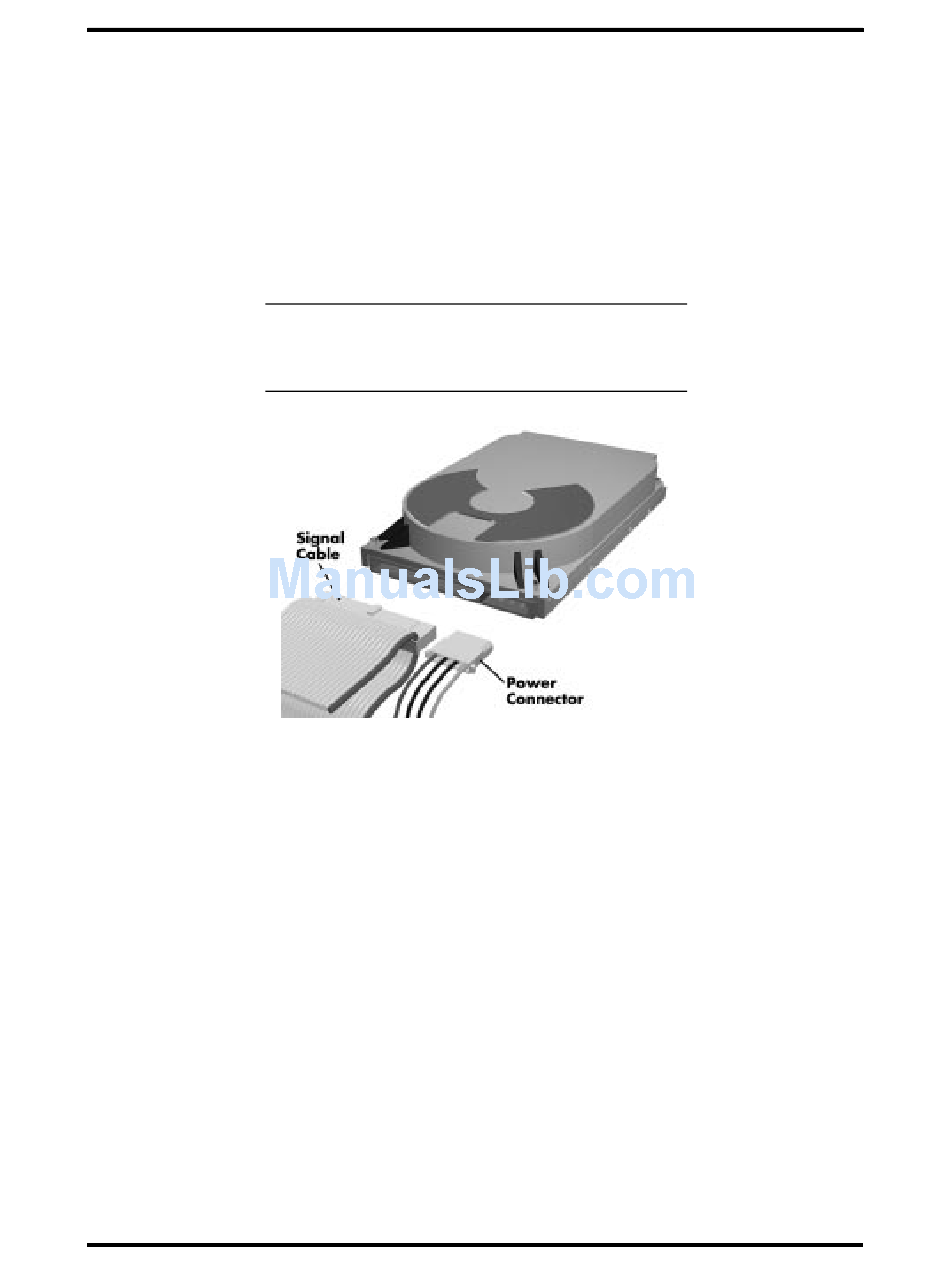

Figure 5-12 3 1/2-Inch Hard Disk Drive Cables
