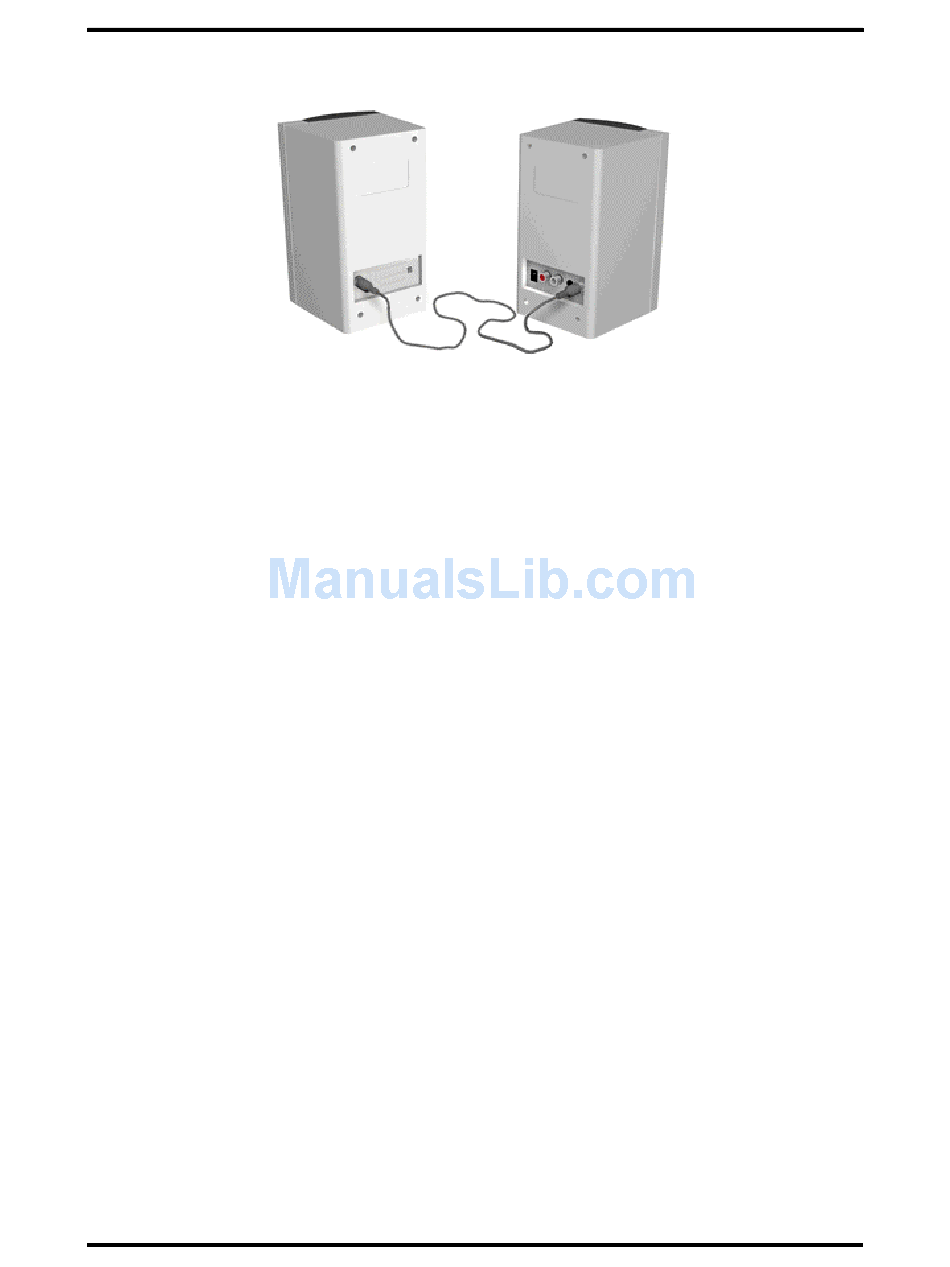

Figure 2-6 Connecting the Two Speakers
Attach the Y-cable as follows.
4.
T
Insert the red connector into the red jack marked "RIGHT LINE IN" on the
back of the right speaker.
T
Insert the white connector into the white jack marked "LEFT LINE IN" on
the back of the right speaker.
T
Insert the other end of the cable into the Line Out jack on the rear of the
system unit (see Figure 2-7).
5. Connect an optional microphone cable to the Microphone In connector on the
rear of the system unit (see Figure 2-7).
Setup and Operation 2-5
