Power LED Connector

The following figure shows the power LED connector on the system board. Table A-15
provides the pin assignments.
Pin
1
2
3

Reset Button Connector

The following figure shows the reset button connector on the system board. Table A-16
provides the pin assignments.
Pin
1
2
3
1
Speaker
Reset Pwr LED
HDLED Infrared

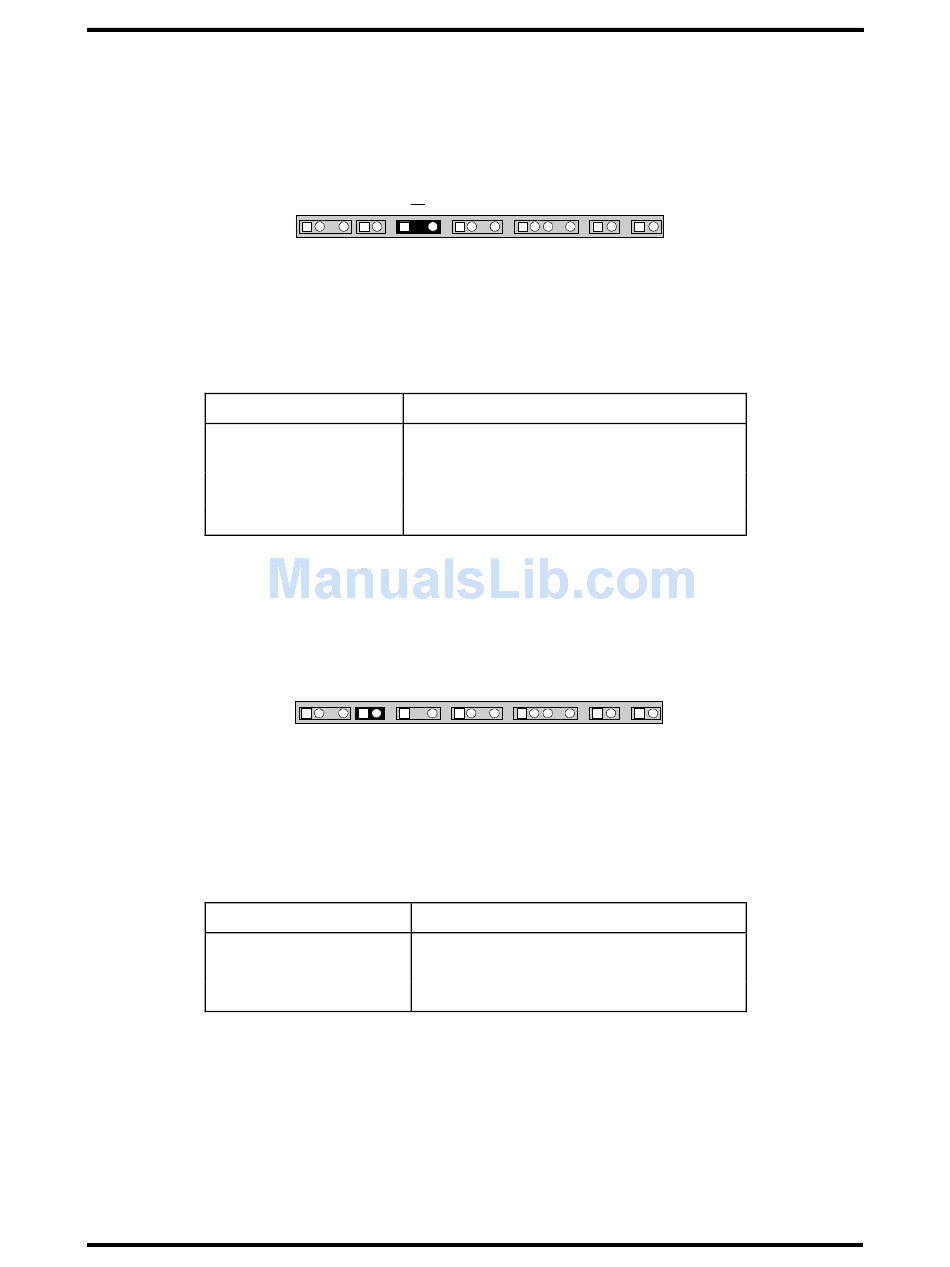

Figure A-8 Power LED Connector
Table A-15 Power LED Pin Assignments
Signal Name
LED_PWR (green)
Key
Ground (blue)
1 2
Speaker
Reset Pwr LED
HDLED Infrared
Figure A-9 Reset Button Connector
Table A-16 Reset Pin Assignments
Signal Name
RESET
Ground
Connector Pin Assignments
Sleep Power On
Sleep Power On
A-11
