Cd-Rom Reader Settings; Cd-Rom Reader Controls And Indicators - NEC POWERMATE PROFESSIONAL - SERVICE MANUAL 05-1997 Service Manual

T
busy lamp that lights during read operations
T
CD tray that opens and closes when the open/close button is pressed
T
open/close button for opening or closing the CD tray when the power is on
T
emergency eject hole in the front panel for manually opening the CD tray if power
is lost. Insert a paper clip into the hole and press inward to open the tray.

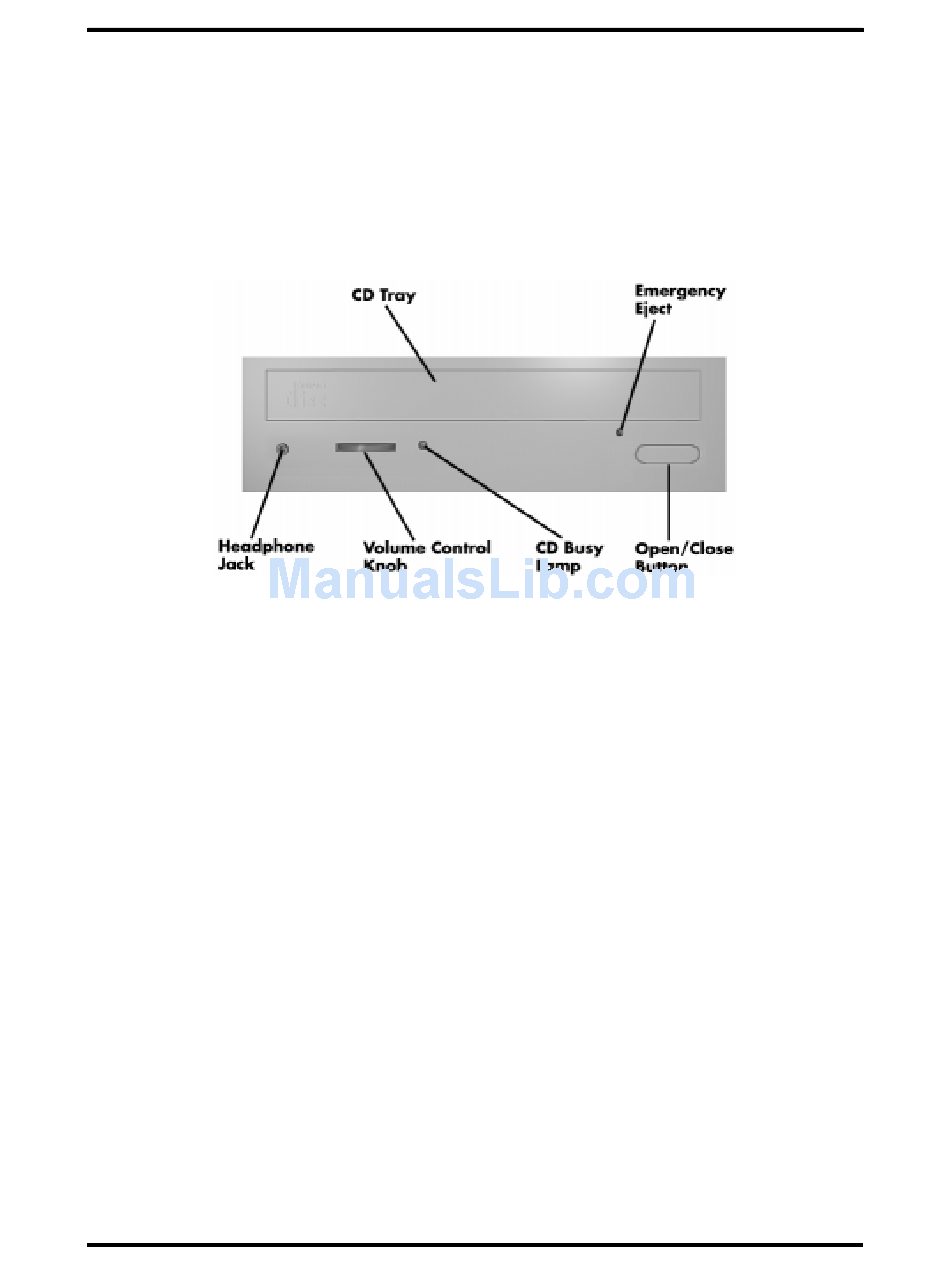

Figure 1-4 CD-ROM Reader Controls and Indicators
To load a disc in the sixteen-speed CD-ROM reader, follow these steps.
1. Press the open/close button. The CD tray opens.
Put the CD, printed side up, into the tray.
2.
Press the open/close button. The tray closes.
3.
4. To remove the disc, press the open/close button. The tray opens, allowing
removal of the disc.

CD-ROM Reader Settings

The reader is set as the master device on the secondary IDE/PCI port (see Figure 1-5). For
details about CD-ROM jumper settings and connector descriptions, see Appendix D.
Technical Information 1-21
