Expansion Boards; System Board Upgrade Sockets And Connectors - NEC POWERMATE PROFESSIONAL - SERVICE MANUAL 05-1997 Service Manual

These options require that the system unit cover be removed. Procedures for removing the
cover are provided in "Removing the System Unit Cover" earlier in this section. Use

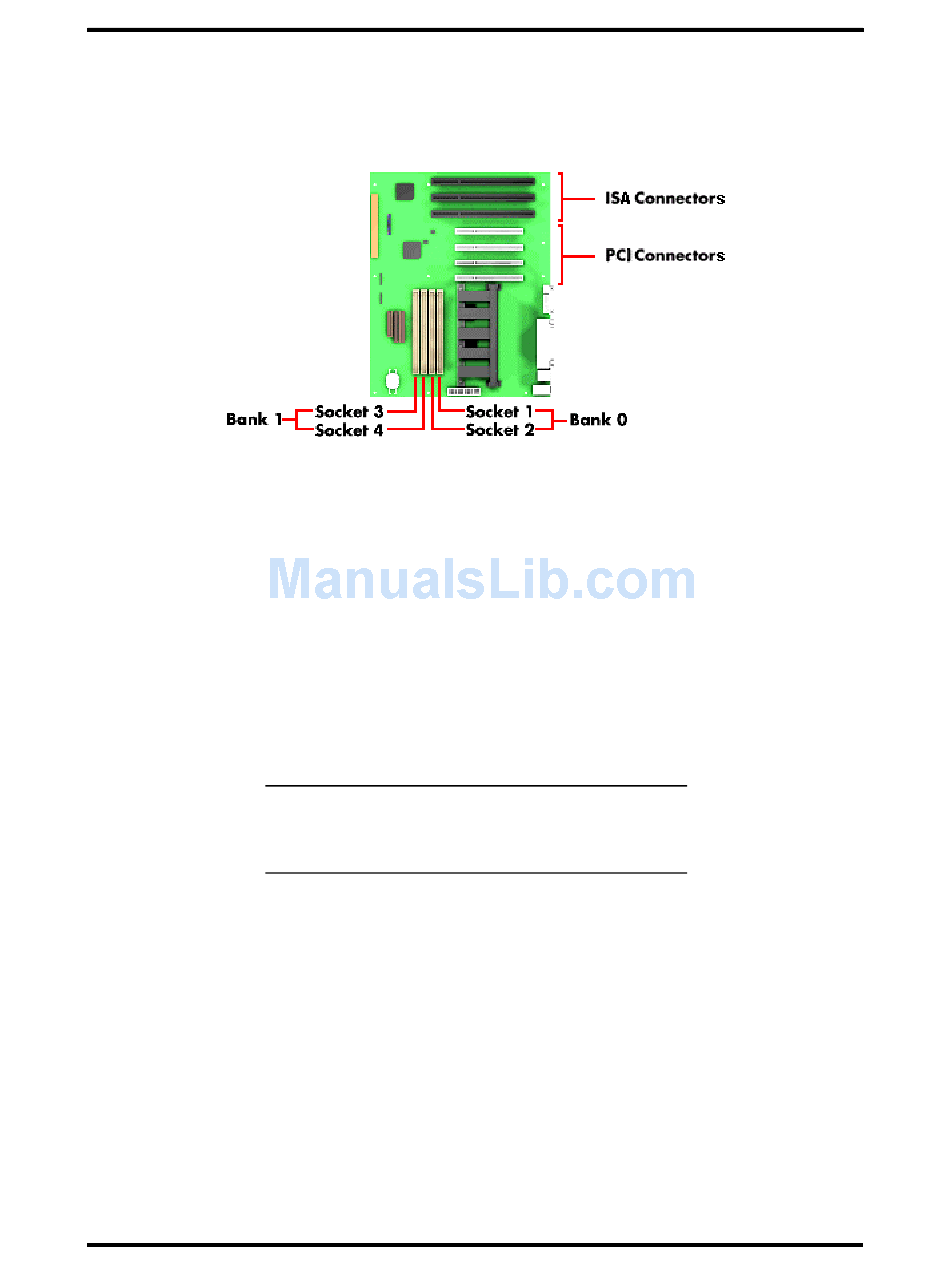

Figure 3-4 to locate the sockets and connectors for system board upgrades.
Figure 3-4 System Board Upgrade Sockets and Connectors

Expansion Boards

The computer supports Plug and Play expansion boards (see "Plug and Play Support" in
Section 1). Plug and Play expansion boards allow you to simply install the board in an
expansion slot without changing the hardware settings. There are no system resource
conflicts to resolve. Plug and Play automatically configures the board for the system.
Industry-standard 8- or 16-bit, ISA and 32-bit, PCI expansion boards are supported in the
system unit. ISA expansion boards can either be Plug and Play or non-Plug and Play boards.
NOTE: The system unit cover must be removed
before installing an expansion board. See
"Removing the System Unit Cover."
Option Installation 3-7
