2. Remove the video board installed in the PCI expansion board slot labeled PCI 3
(see Expansion Board Removal).
3. Locate the upgrade module connectors on the video board.
CAUTION: Before installing the video module,
reduce static discharge by touching the system's
metal chassis.
Align the connectors on the bottom of the upgrade module with the connectors on
4.
the video board (see Figure 3-10). Press slowly and firmly until the module is
seated.

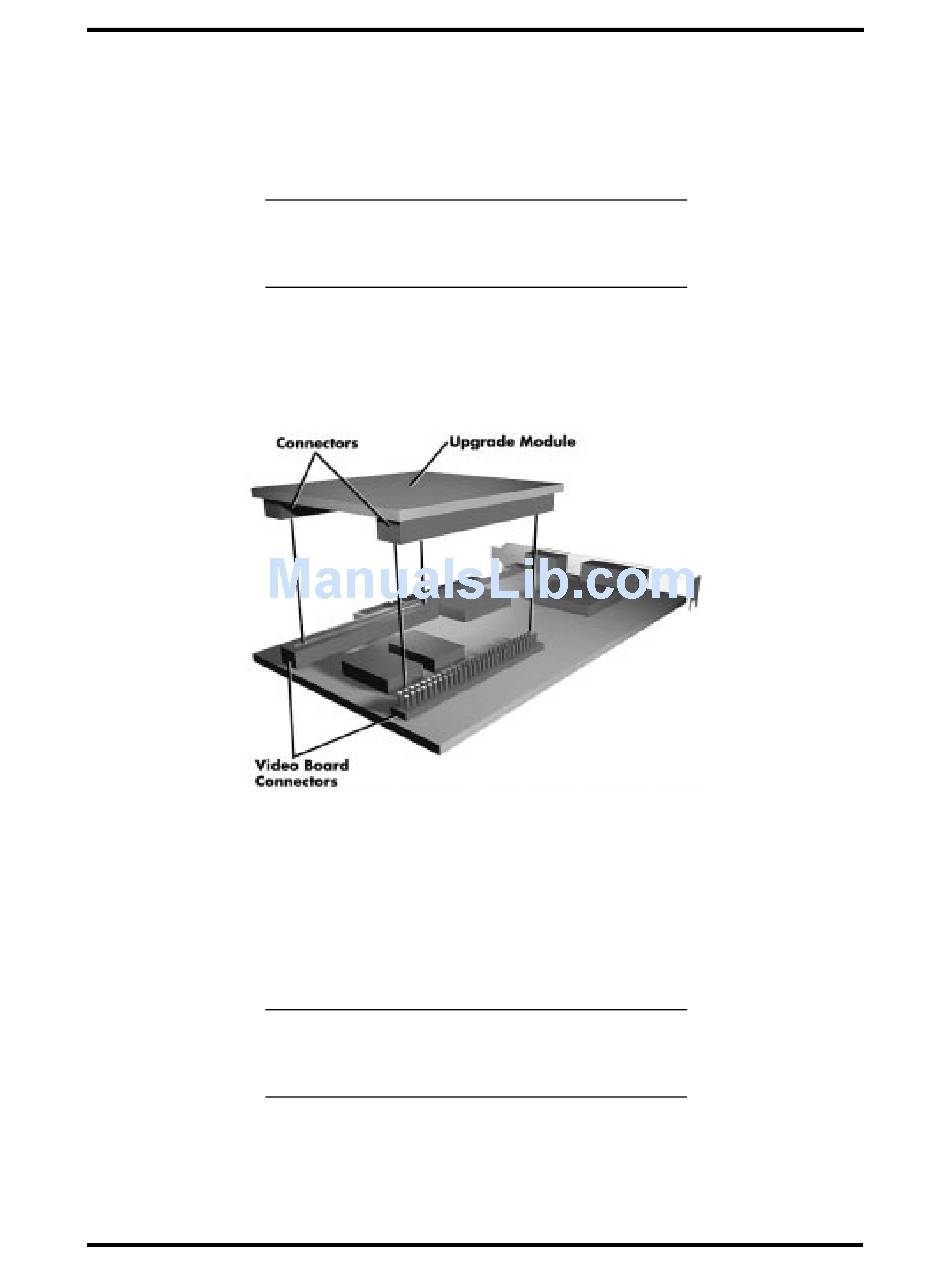

Figure 3-10 Aligning the Video Module with the Socket
5. Replace the removed video board (see "Expansion Board Installation" earlier in
this section).
6. Replace the system unit cover.
NOTE: After upgrading the video memory,
different video driver can be used to display more
colors at higher resolutions.
Option Installation 3-15
