Attaching The Microphone And Y-Cable; Connecting The Ac Adapter - NEC POWERMATE PROFESSIONAL - SERVICE MANUAL 05-1997 Service Manual

2-6 Setup and Operation

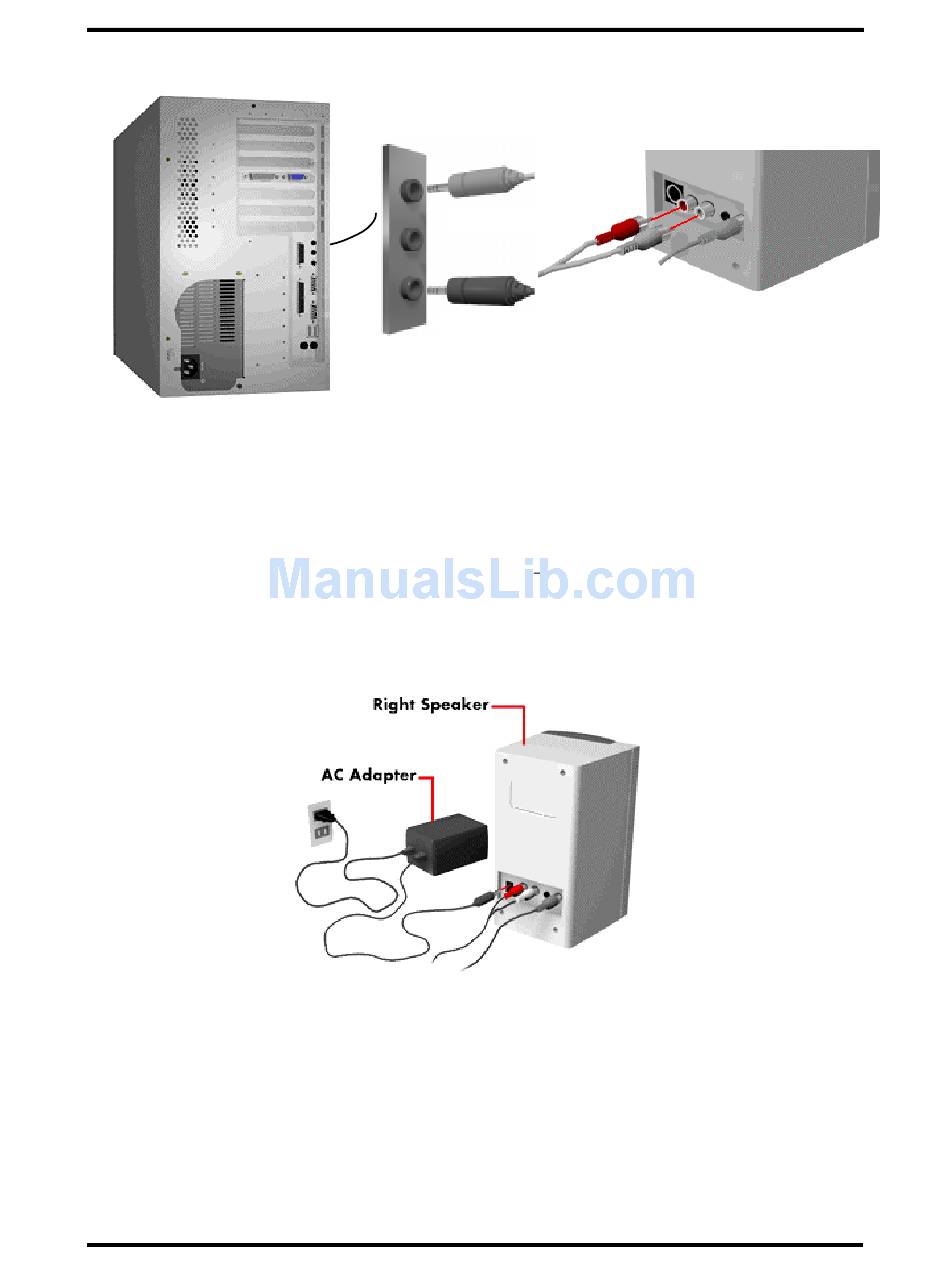

Figure 2-7 Attaching the Microphone and Y-Cable
Locate the AC adapter (see Figure 2-8).
1.
2. Plug the AC adapter into the jack marked "+15 DC" on the back of the right
speaker.
3. Plug the other end of the cable into a properly grounded wall outlet.
Power on the speakers after the operating system has been loaded. To operate the speakers,
push the power button on the front of the right speaker and adjust the volume control.
This completes setup procedures.
Mic In
Line Out
Figure 2-8 Connecting the AC Adapter
