Replacing the Front and Side Panels

Replace the front panel only after it has been removed in a 5 1/4-inch device installation.
If you are installing a 5 1/4-inch device, see "Installing the 5 1/4-Inch Device."
1. Align the four front panel tabs with the holes in the front of the system unit.
2. Evenly press the front panel into position until the tabs lock the panel in place.
3. Replace the side panel and reinsert the screws to hold the side panel in place.
4. Continue at step 8 of the "Installing the 5 1/4-Inch Device" procedure.

ADDING EXTERNAL OPTIONS

The following subsections provide information about attaching peripherals to the external
connectors on the system unit.
T
Parallel Printer
T
Serial Devices
T
SCSI Devices

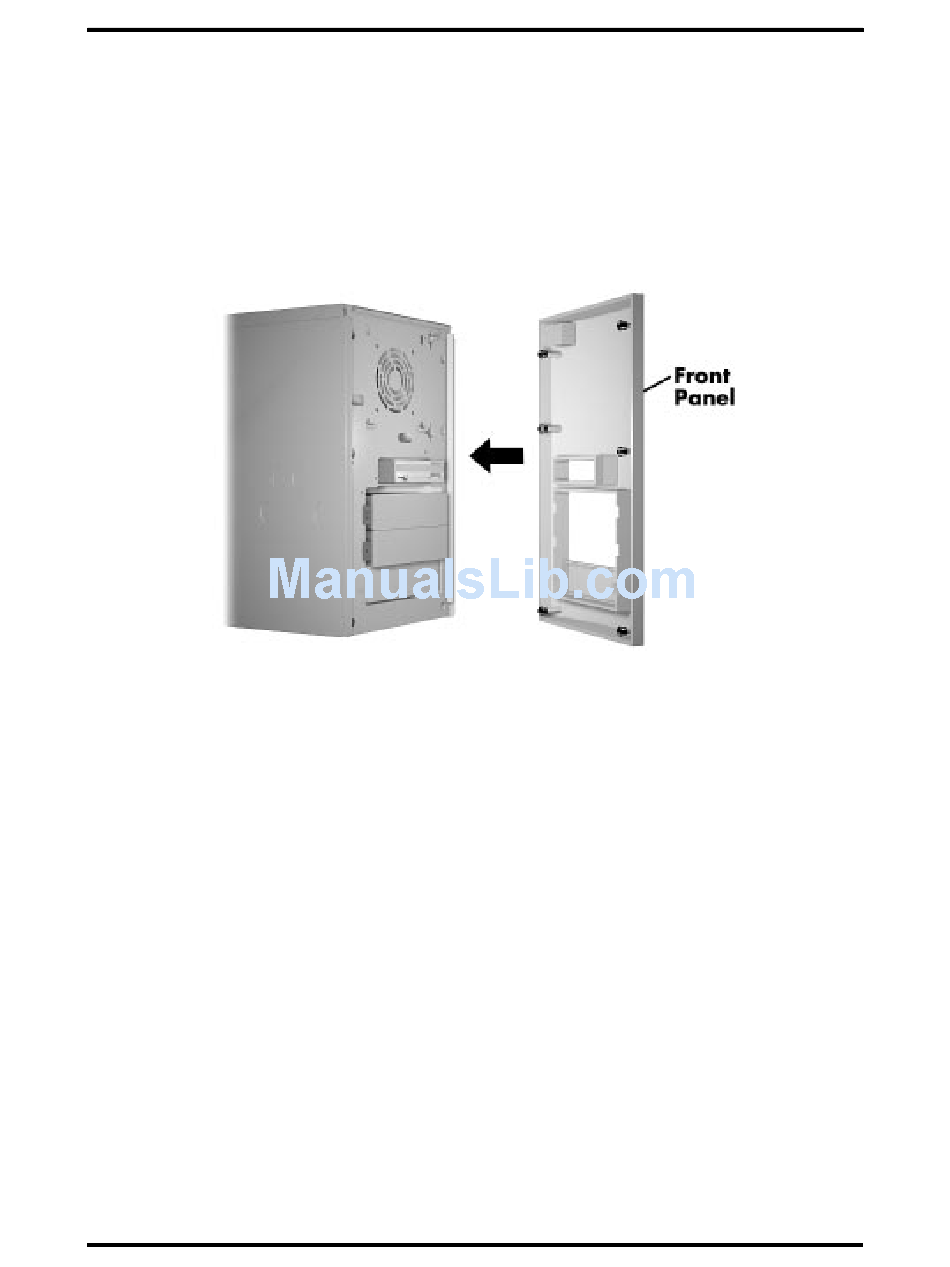

Figure 3-27 Aligning the Front Panel
Option Installation 3-31
