Electrical Connection

The enclosure requires a dedicated, hard-wired power source appropriately rated per
Section 2: Electrical Requirements. To make the supply electrical connection, follow
these steps.
Using a step ladder and #2 Phillips screwdriver, remove the four (4) Screws and
Electrical Box Cover (see Figure 4-22).

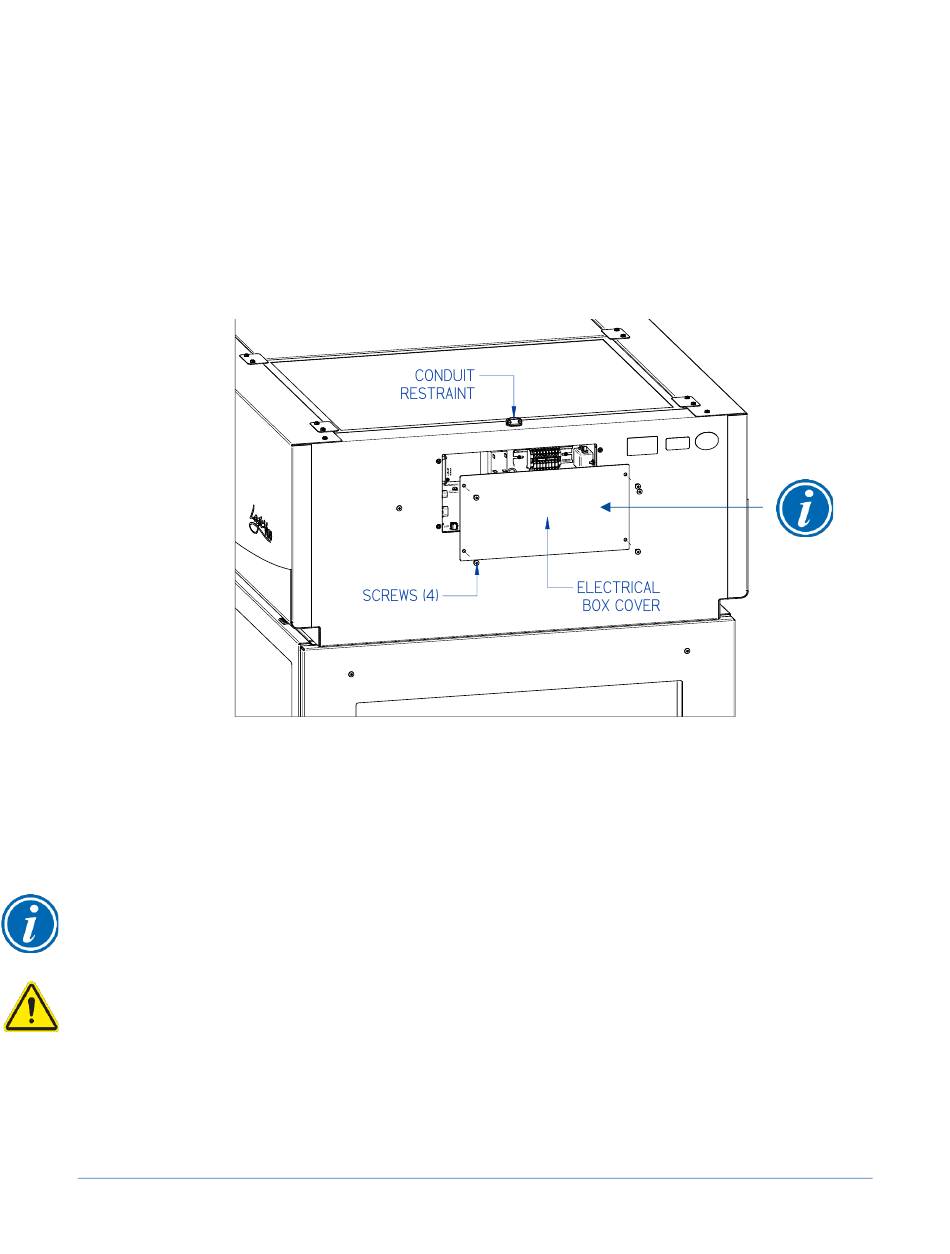

Figure 4-22
Run the supply electrical flexible conduit through the strain relief fitting (labeled Conduit
Restraint in Figure 4-22) and into the Electrical Box. Wire stripping/finishing work can
be done once the flexible conduit is through the fitting and excess wire available in the
box.
A copy of the Wiring Diagram is located on the inside of the Electrical Box Cover.
Verify the supply electrical source is single phase.
Locate the DIN Rail in the upper right corner of the Electrical Box. Using the
illustrations on the following page, strip the outer insulation and connect L1, L2 and
earth ground to the appropriate DIN Rail terminals.
