To pass a cable, cord, or tube through the cable entry system, follow these instructions
and reference Figure 9-4.
INSERTS (8)
1. Flex the two (2) Entry Frame Clips outward while pulling the Pass Thru Frame out
of the Entry Frame.
2. Separate Pass Thru Frame Top from the Pass Thru Frame Bottom by sliding the
Top off of the Bottom Frame.
3. Select the solid plug insert(s) to run a cable through. The solid plug has a thin
center section, which can be carefully cut to accept the cable, or the solid plug can
be replaced with an insert with a hole specifically sized for the cable. For
convenience two (2) 4-5 mm inserts are provided in the Parts Box.
4. If replacing one or more solid plugs with specific inserts, remove the solid plug(s).
5. The new insert contains a slit. Fit the insert over the cable by pressing the cable
through the slit until it is seated in the insert's hole.
PASS THRU
FRAME - TOP
ENTRY FRAME
PASS THRU
FRAME - BOTTOM
101

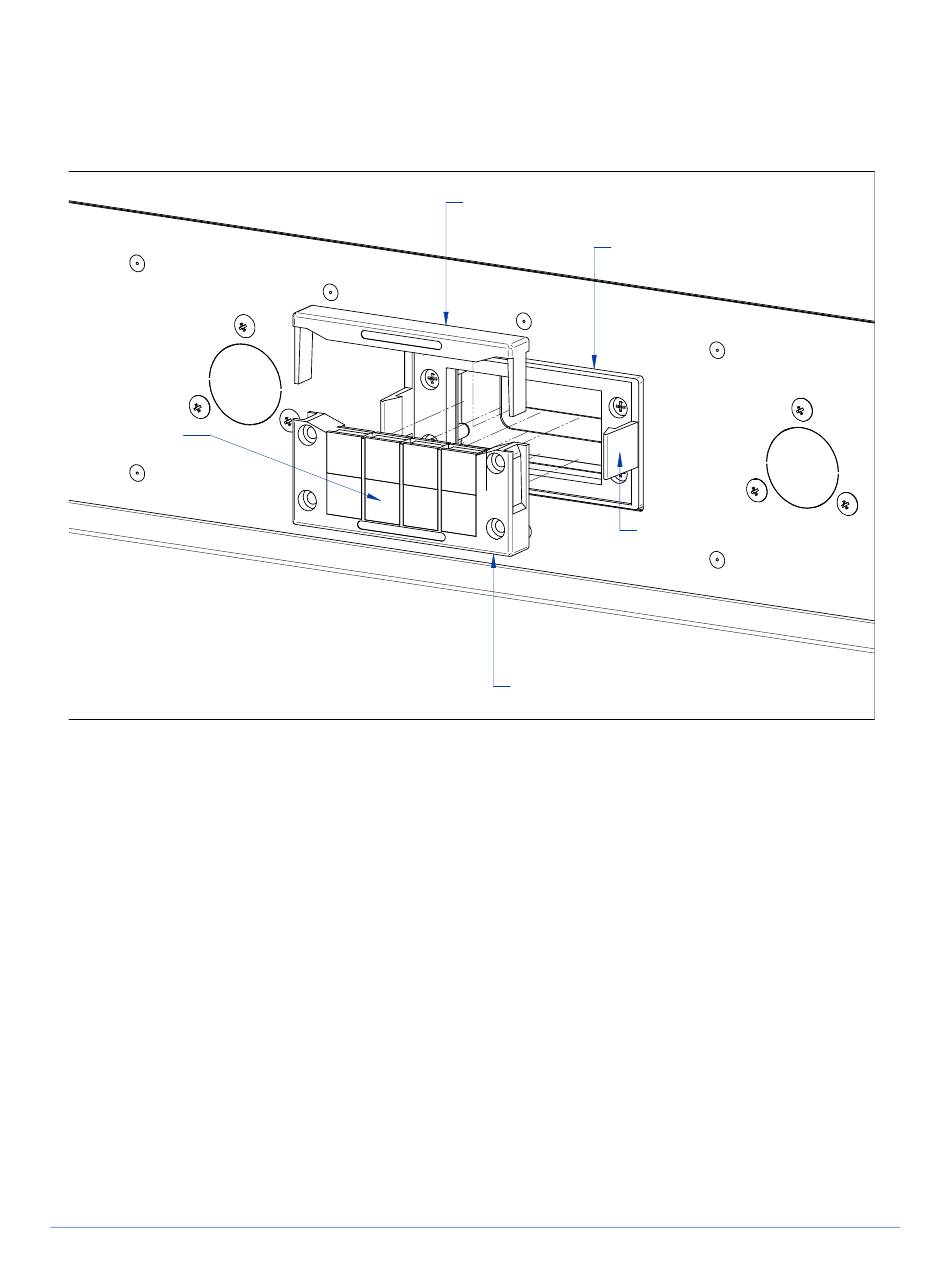

Figure 9-4
ENTRY FRAME
CLIPS
