Connection Type; Data Output Format - Labconco Logic Vue User Manual

Once the USB Cable is connected, the operation of the Logic Vue enclosure can be
monitored using a computer connected to the end opposite the mini USB connector.
The remotely connected computer can monitor the cabinet, but not control the
enclosure.

Connection Type

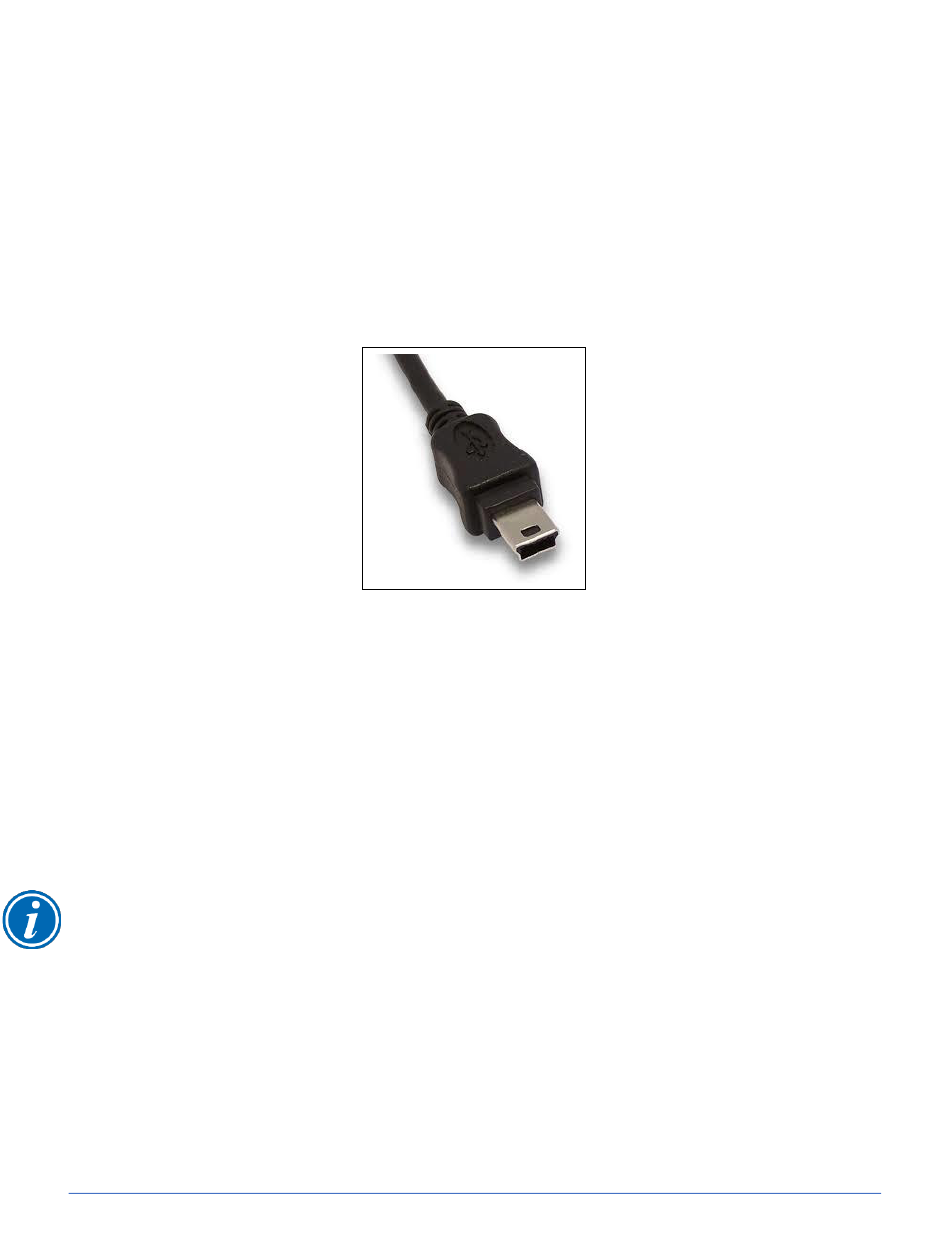

To connect to the mini USB port on the cabinet, a mini USB A connector is required
(see Figure 9-9).

Data Output Format

To correctly receive data output from the Logic Vue enclosure, set the following
communication configurations on the receiving computer:
1. Data Rate = 9600 Baud
2. Word Length = 8-Bit
3. 1 Start Bit, 1 Stop Bit
4. No parity is transmitted
5. Standard ASCII character set
Note: The mini USB port on the enclosure does not supply power, it only transmits
data.
Figure 9-9
