Place the Levelling Foot on the floor near the enclosure's caster support. Examine how
far the Scissor Jack must be raised to fit the Levelling Foot and its threaded stem into
the now vacant attachment hole. Raise the Scissor Jack enough to install the Levelling
Foot's threaded stem into the attachment hole. Install the Lock Nut, tighten fully.
Repeat for the other Caster/Foot on the same end. See Figure 4-8.
Lower the enclosure with the Scissor Jack. Reposition the Jack at the far end, and
repeat for the two (2) remaining Casters.
END CAP
Replace the four (4) End Caps. Using a Carpenter's Level on the work surface, level the
Replace the four (4) End Caps. Using a Carpenter's Level on the work surface, level
enclosure from side to side and from front to back by adjusting each Levelling foot as
the enclosure from side to side and from front to back by adjusting each Levelling foot
necessary. It may be easier to lift each end of the enclosure with the Scissor Jack to
as necessary. It may be easier to lift each end of the enclosure with the Scissor Jack to
rotate the Levelling Foot up/down as needed.
rotate the Levelling Foot up/down as needed.
If seismic restraint is required, use appropriate screws for the flooring substrate and
secure each of the four (4) Levelling Feet using the two (2) holes provided per Levelling
Foot.
32

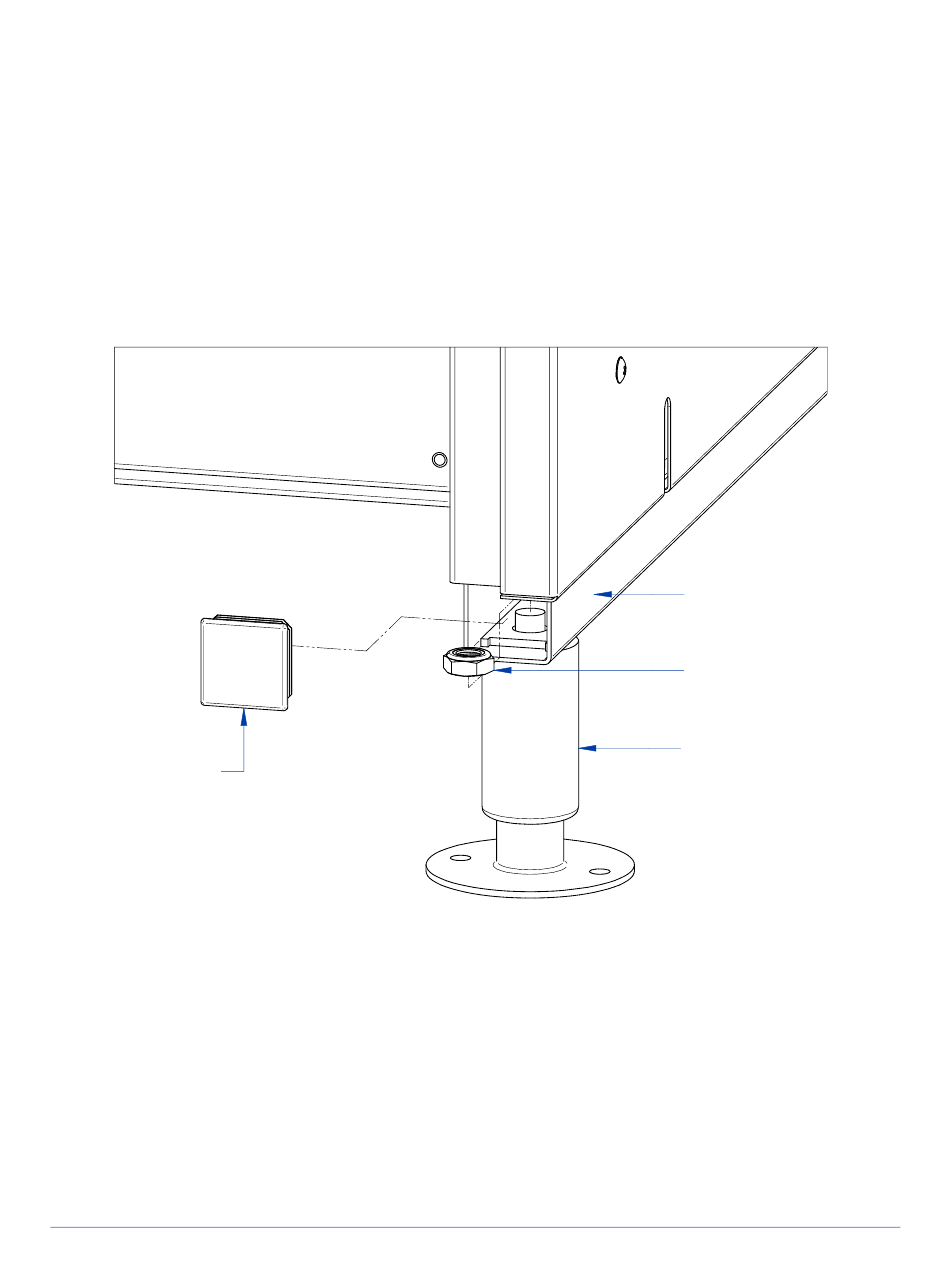

Figure 4-8
CASTER SUPPORT
LOCK NUT
LEVELLING
FOOT
