Step 3 – Final Unpacking and Assembly
Once the enclosure has been moved to its final location for use, perform the following
steps to finish unpacking and assembling several components.
If proceeding through a low or narrow doorway, see
Door Clearance later in this section.
Remove any remaining tape securing the sashes, drip tray and work surfaces. Open
the front sash hatch, and retrieve the white parts box (see Figure 4-2) on top of the drip
tray. The following parts are located in the white parts box:
• (4) Sash Restraint Latches
• (4) Screws
• (2) Work Surface Lift Tools & 2 Cable Entry Inserts [provide to end user]
Install the Sash Restraint Latches (4) in the lowest set of threaded holes on the far left
and right ends of the front and rear sash hatch. Install the Screws (4) in the upper set of
threaded holes in the front and rear sash hatch. See Figure 4-6. Place the Work
Surface Lift Tools on the lower front panel (they contain a small magnet) as shown in
Figure 4-6, so the user can locate them easily.

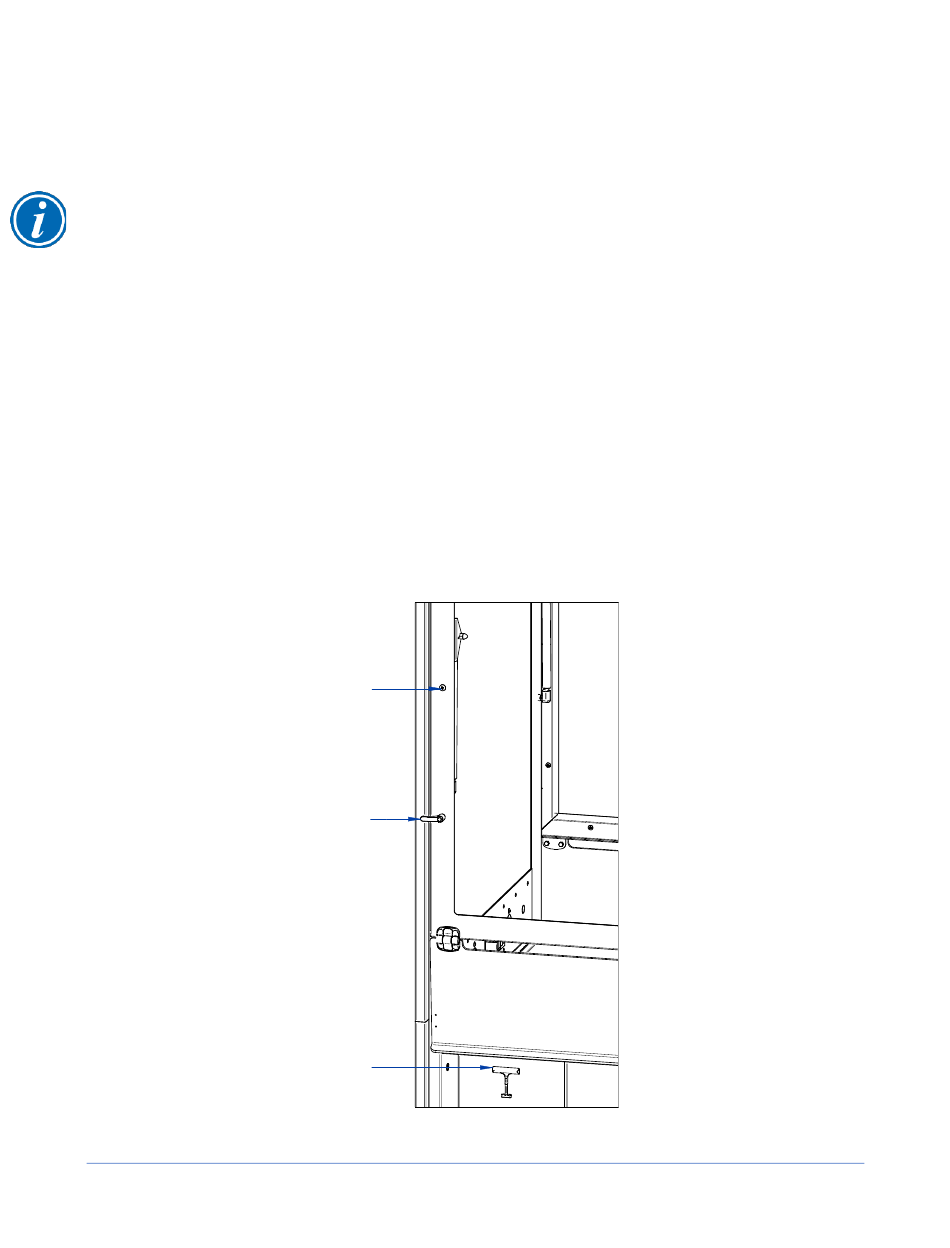

IN UPPER POSITION
SASH LATCH (4)
IN LOWER POSITION
WORK SURFACE
SCREWS (4)
LIFT TOOL (2)
Narrow Door Clearance
Figure 4-6
