IMPORTANT – while the Scissor Jack is bearing the weight of the enclosure, never
place any body part underneath the enclosure casters. Never place your head or other
body parts underneath any part of the enclosure.
The casters on the enclosure end NOT being raised must be chocked with a board or
otherwise secured BEFORE the Scissor Jack is used to raise one end of the enclosure.
Locate the Scissor Jack near one end. Place jack such that when raised, it contacts
fully on the Center Lateral Strut underneath the enclosure. There are three Lateral
Struts, be sure to position the Jack on the Center Strut. Reference Figure 4-4 below.
Raise the Scissor Jack until it begins to make contact with the Center Strut, then stop
raising it.
Remove the two (2) Lag Bolts and Washers from the Bottom Frame Bracket on the end
where the Scissor Jack is located. Reference Figure 4-4. Continue raising the Scissor
Jack until the weight of the enclosure is off of the Bottom Frame Bracket. Remove the
Bracket; discard it and the hardware.
Carefully lower the Scissor Jack until the Casters bear the weight of the enclosure.
Repeat this procedure for the opposite end.
12 inches
(30 cm)
maximum
CENTER
SCISSOR JACK
LATERAL
STRUT
27

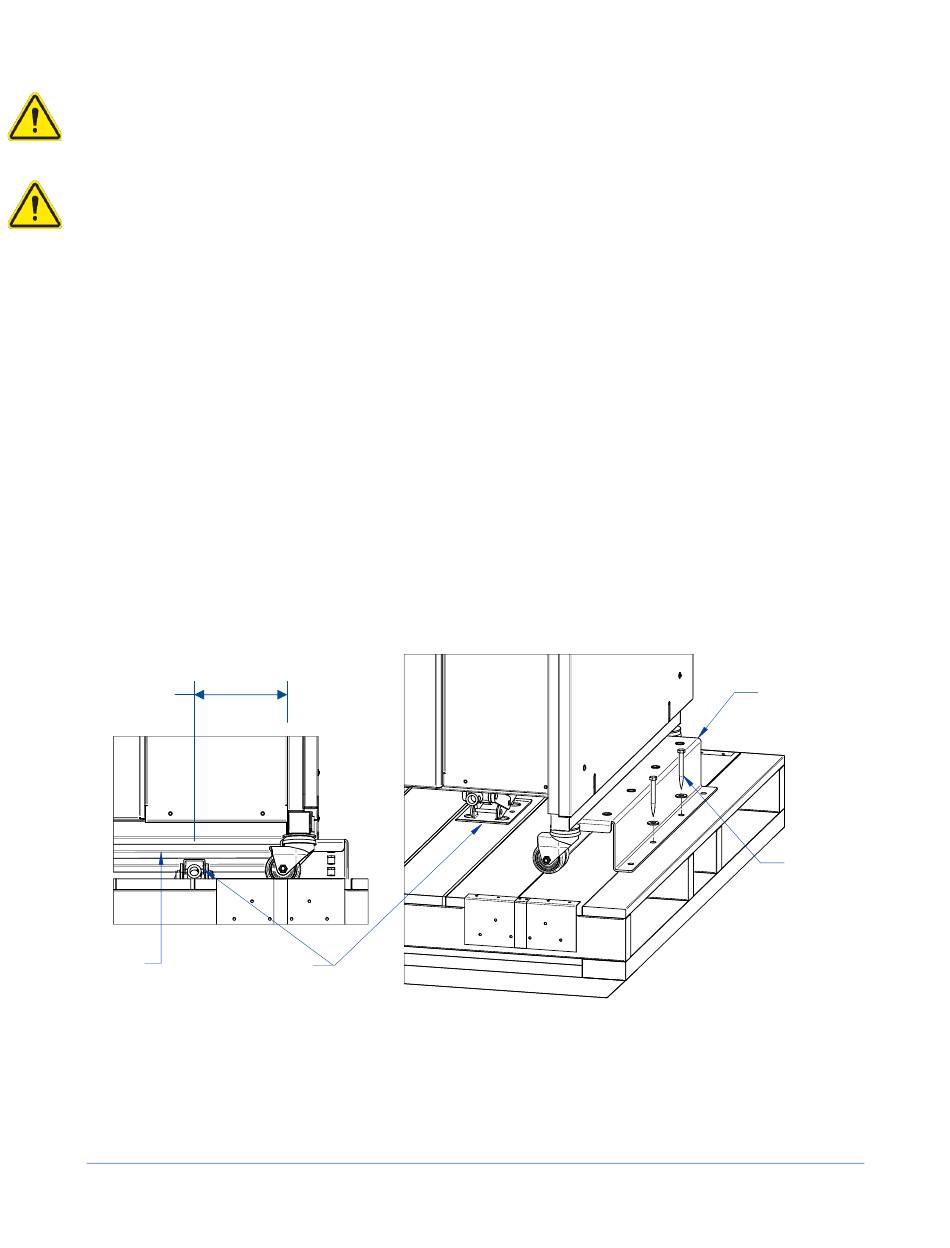

Figure 4-4
BOTTOM
FRAME
BRACKET (2)
LAG BOLT
& WASHER
(2 PER END)
