Using the large flatblade screwdriver and hammer, remove the Knockout of the location
to install the Large Tube Pass-Thru. Start on the top, and once the Knockout is opened
slightly, use pliers to work it repeatedly until it comes free. Remove the three (3)
Screws around the open Knockout. Insert the Tube Pass-Thru into the hole left by the
Knockout. Place the supplied Gasket between the Pass-Thru flange and the inner wall.

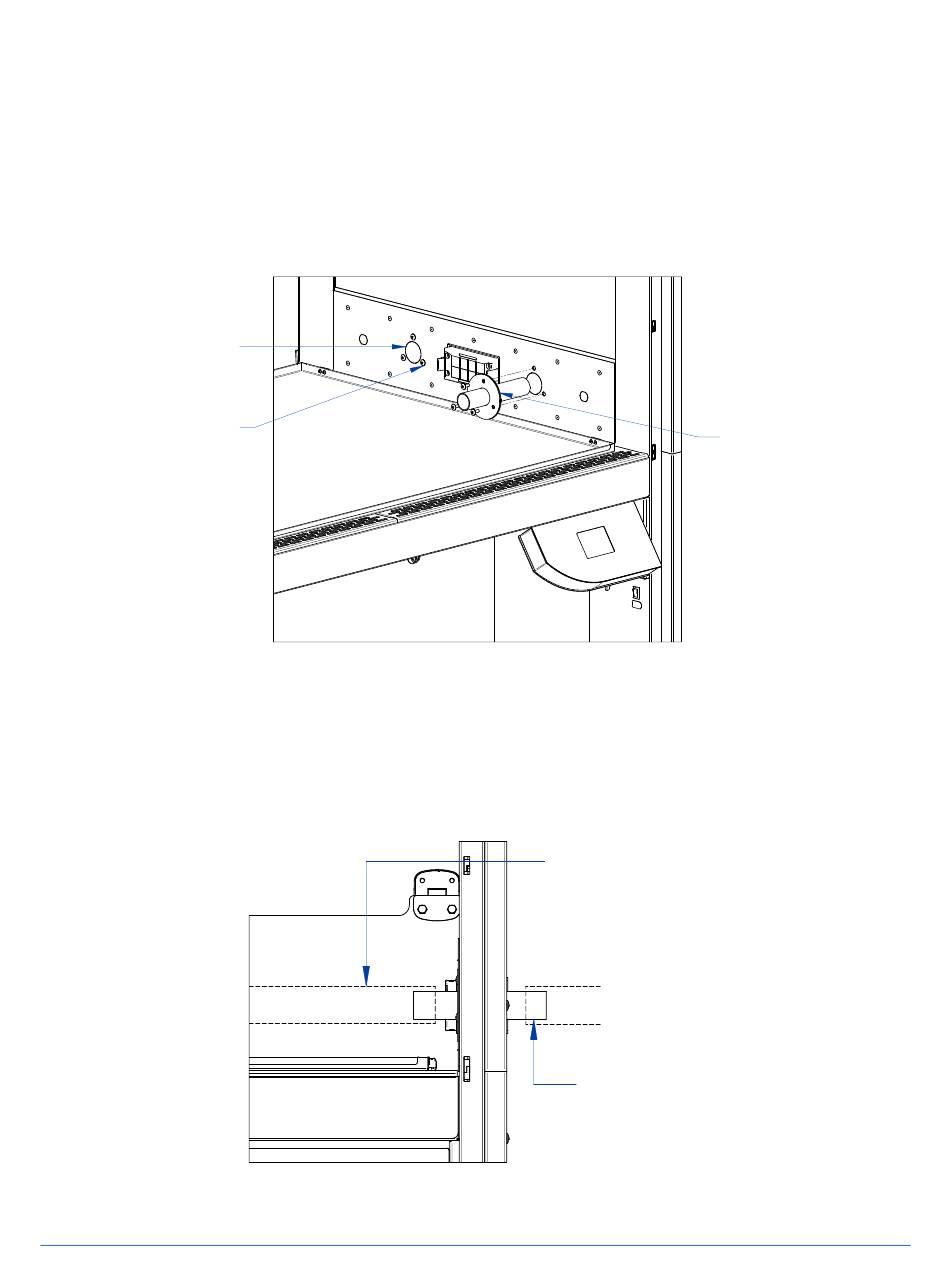

Secure the Pass-Thru with the three (3) Screws removed earlier. See Figure 12-5.
KNOCKOUT
SCREWS (3)
Step #3
Connect the desired tubing to the either side of the Pass-Thru, secure as desired.
Figure 12-5
Figure 12-6
LARGE TUBING
(USER PROVIDED)
TUBE
PASS-THRU
144
TUBE
PASS-THRU
