3. Place each End Panel on first. Note: the End Panel with Electrical Schematic
adhered to the inside goes on the right end when facing the front of the unit. The
End Panel has two tabs that will locate in slots atop the unit. Once the tabs are
inserted, rotate each End Panel toward the frame, and secure each End Panel
with two (2) Screws.
4. Place each Header Panel atop the unit. A Hex Head Screw will secure the top
right, and top left corners of each Header Panel to the End Panel. The Hex Head
Screws come down from the top flange through the holes in the Header Panel
and secure into the End Panel. Three remaining Phillips Screws secure the
bottom flange of each Header Panel (one Screw on each end, and one in the
center).
5. Place the Top Cover in the lip created by the Header Panels and left End Panel.
Slide the Top Cover all the way to the left when facing the front of the unit.
6. Place the Pre-Filter in the lip created by the Header Panels and the left End
Panel.

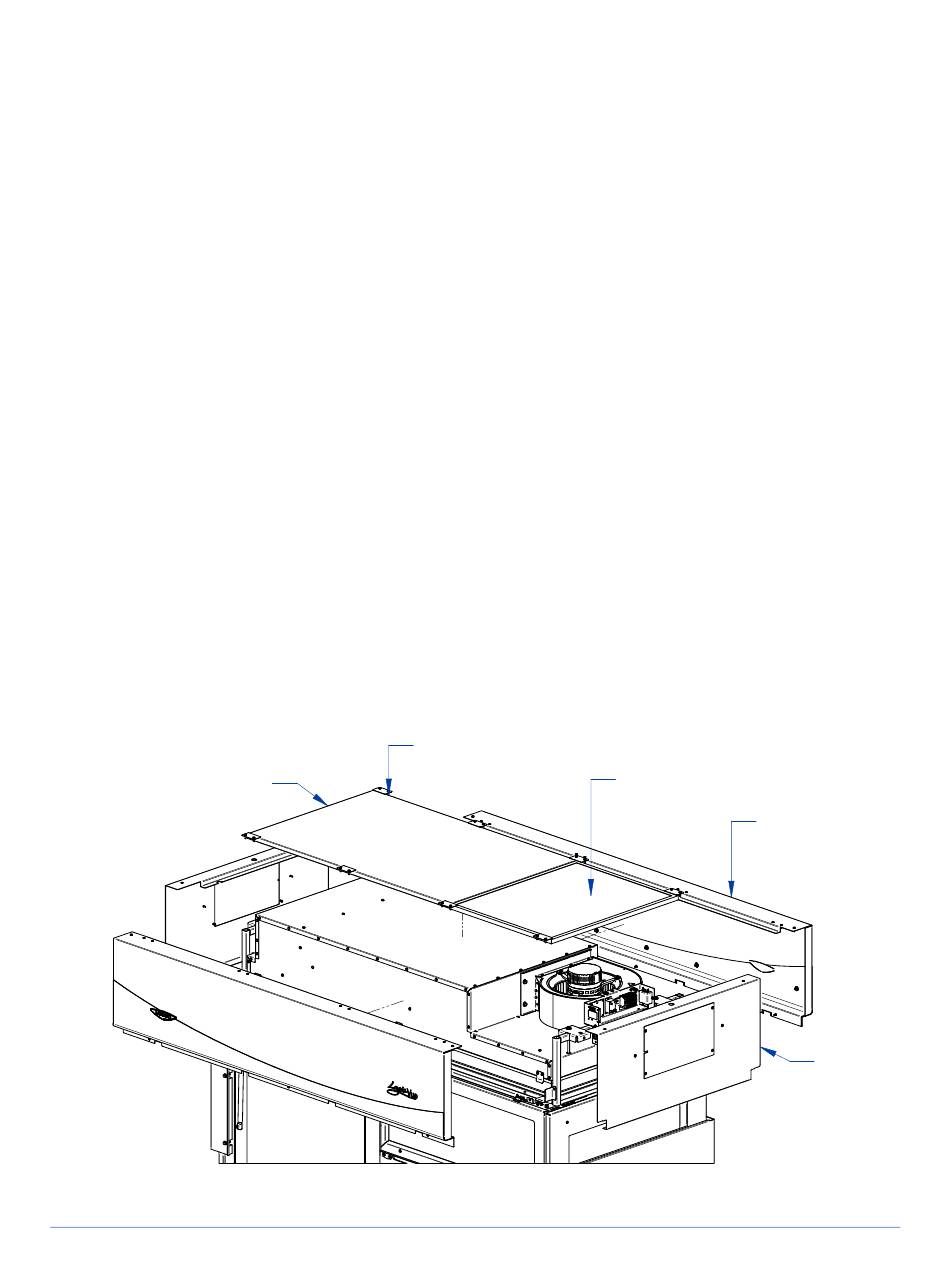

7. Place the Plates at each junction point as shown in Figure 4-34, and secure with
two (2) Hex Head Screws per Plate.
TOP COVER
PLATE (6 OR 8)
67
Figure 4-34
PRE-FILTER
HEADER
PANEL
(2)
END
PANEL
(2)
