Step 3 – Electrical Box Removal

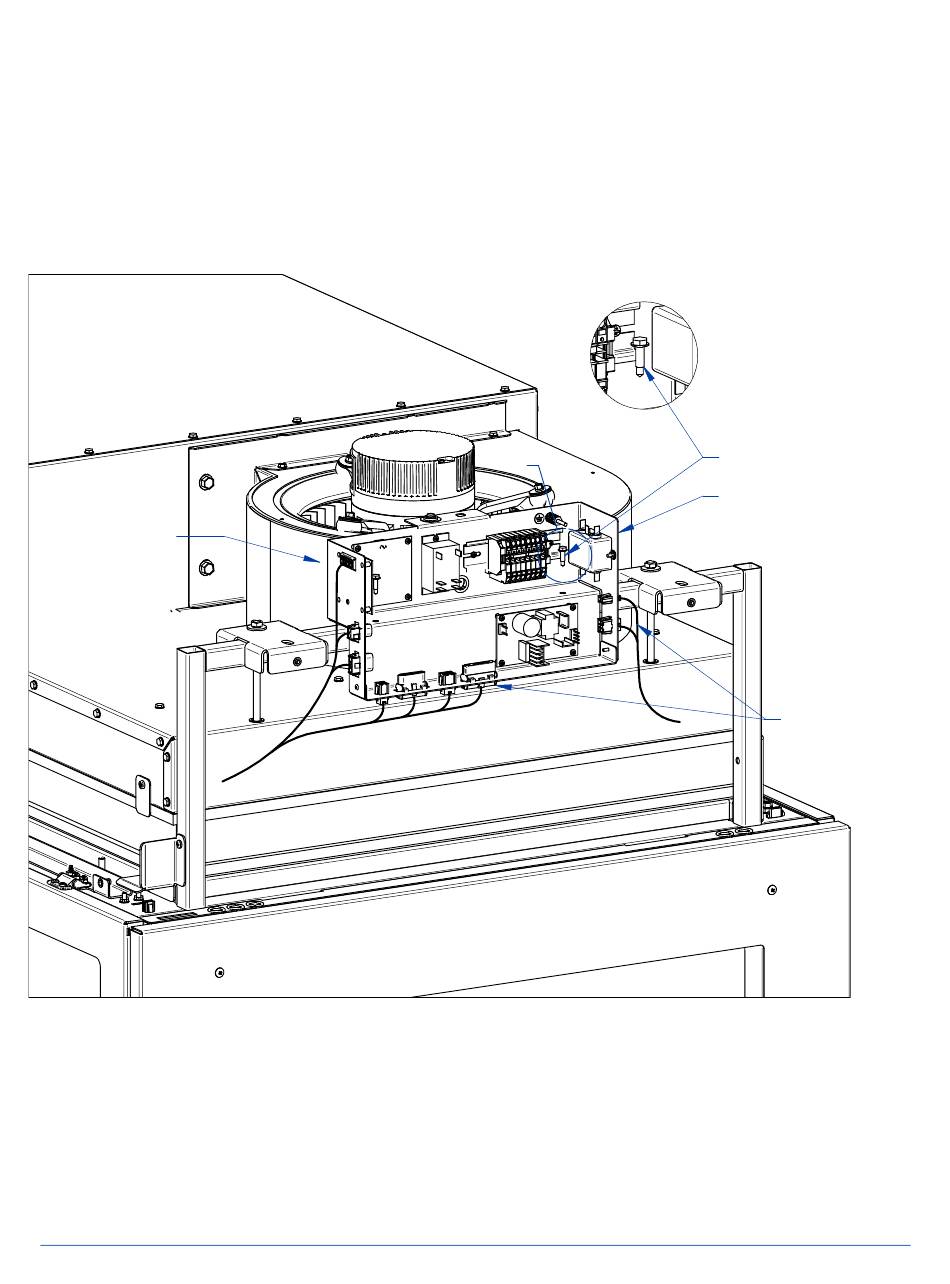

Reference Figure 4-17. Disconnect all Wiring Connectors from the Electrical Box. Note
the two connectors in the rear face of the box – disconnect them as well. Lay all
wiring/cables carefully over the end of the enclosure. Remove the two (2) Screws that
secure the Electrical Box, and remove the Electrical Box.
WIRING
CONNECTORS
(2 ON REAR)
DETAIL D
D
41
Figure 4-17
SCREWS (2)
ELECTRICAL BOX
WIRING
CONNECTORS
