Step #2

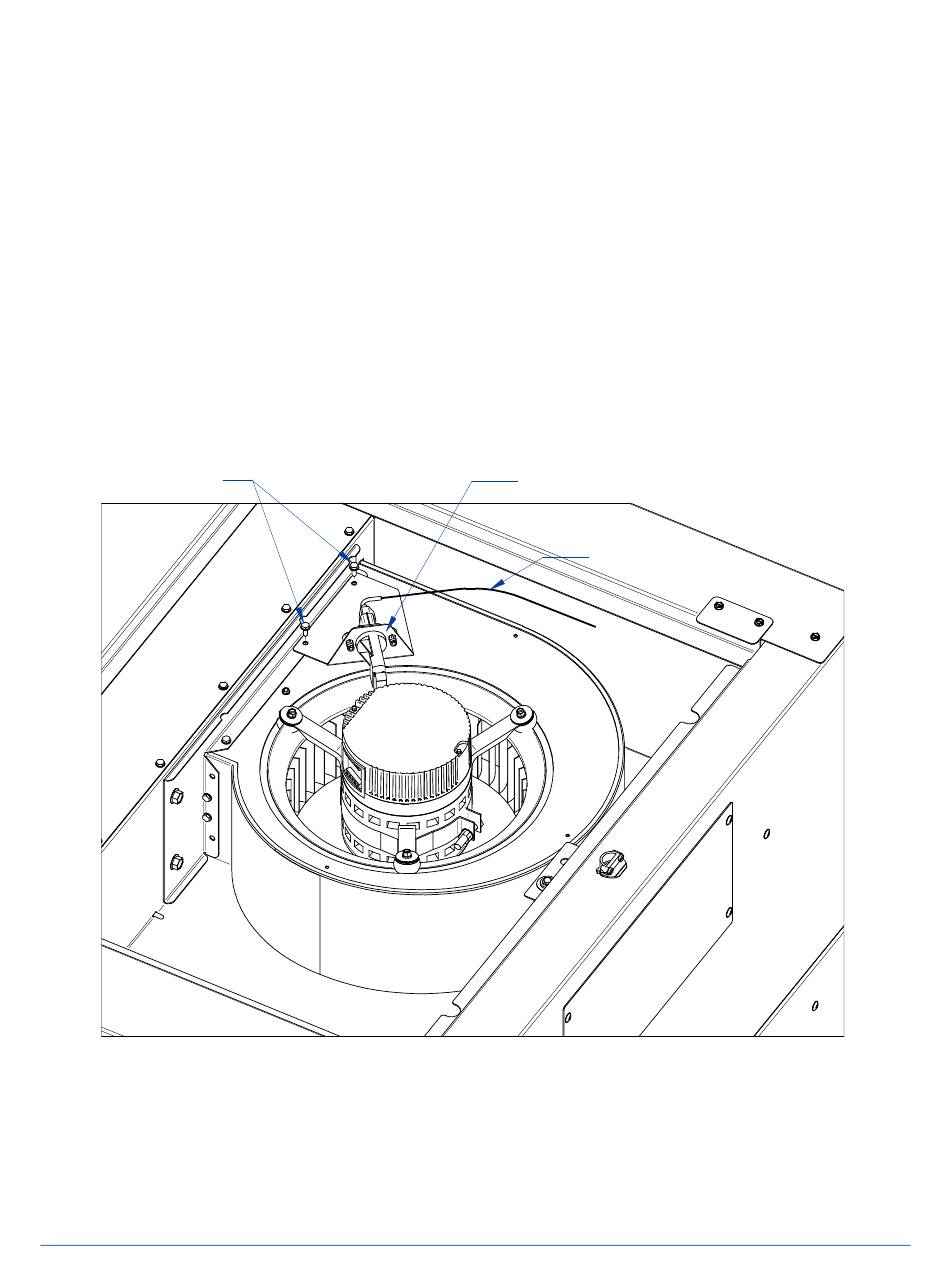

1. Locate the two Screws as shown in Figure 12-8.
2. Remove these two Screws and place the Airflow Sensor Assembly as shown in
Figure 12-8. The two holes in the Assembly Bracket should line up with the two
holes where the Screws were removed.
3. Replace the two Screws removed previously, inserting them both through the
holes in the Assembly Bracket. Tighten the two Screws snugly. Do not
overtighten.
SCREWS (2)
AIRFLOW SENSOR ASSEMBLY
WIRE HARNESS
147
Figure 12-8
