Pull excess flexible conduit back out of the Electrical Box, then secure the Conduit
Restraint on the outer conduit jacket by tightening the two (2) screws on the clamp.
208-240V 50/60Hz
100-120V 50/60Hz
EARTH
EARTH
GROUND
GROUND
L2 SUPPLY
L1 SUPPLY
L1 SUPPLY L2 SUPPLY

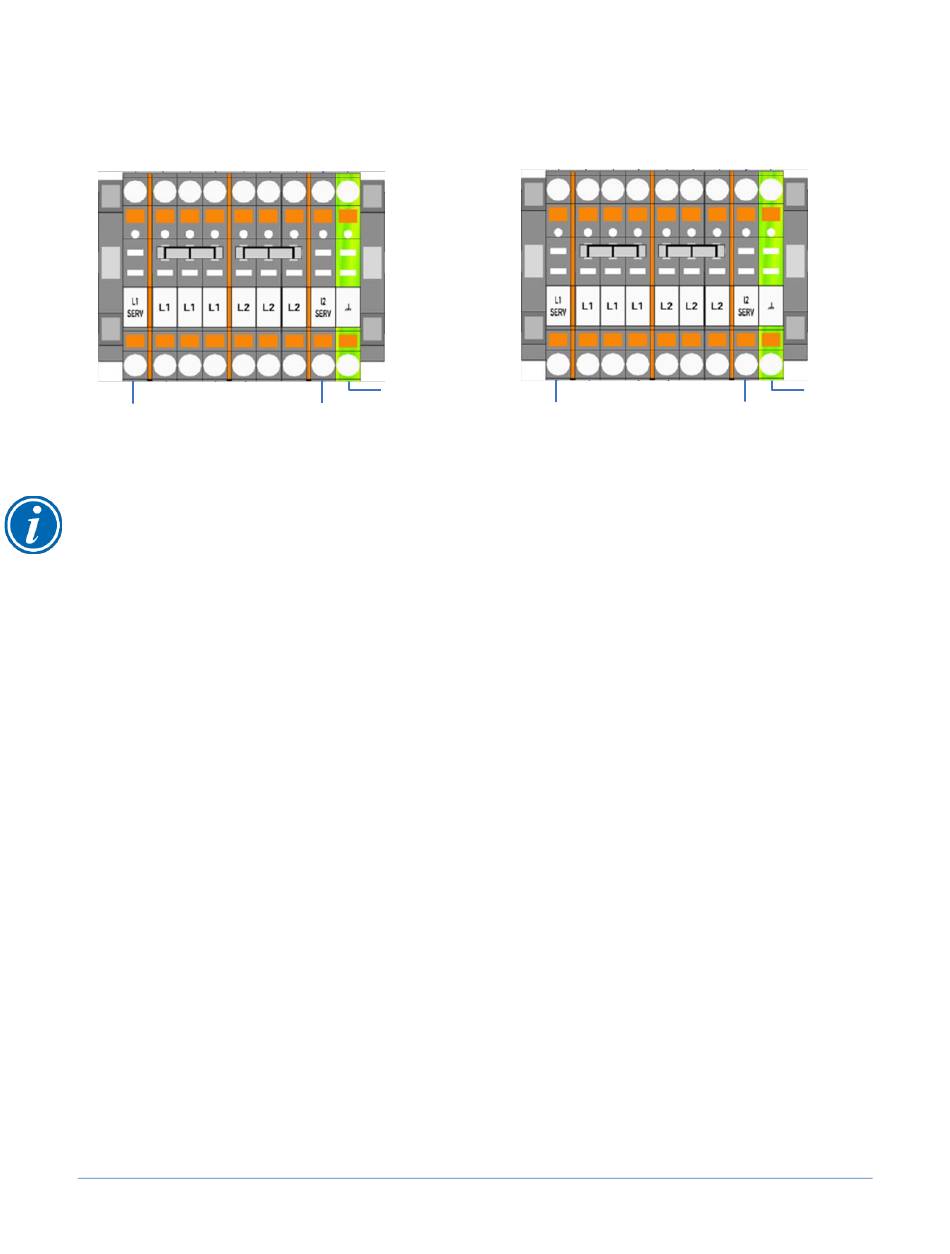

To open the appropriate DIN terminal, use a flat blade screwdriver to press on the
orange contact, this will lever the catch open and the stripped wire can be inserted.
Release pressure on the orange contact, and the catch will close on the wire.
Once all wiring is complete, verify the supply wires are not resting on any components
within the Electrical Box. Replace the Electrical Box Cover and the four (4) Screws.
