Large Tube Pass-Thru Kit

The Logic Vue enclosure offers 16 total Cable Pass Thru ports for passing cords up to
17 mm in diameter through the end walls. However, some applications may require
passing a larger diameter tube out of the enclosure. Two sizes of Large Tube Pass-
Thru Kits are offered: 3/4 inch (19 mm) and 1-1/4 inch (31 mm). The kits are 304
stainless steel tubes, and allow a more rigid connection for larger tubing. Four (4) total
can be installed (2 per end) on the Logic Vue. The Catalog Numbers of each diameter
Large Tube Pass-Thru Kit are shown in Table 12-2.
Note: If kit is installed and later removed, order Blocking Plate (P/N 3351000) to fill the resulting hole.
The following tools and supplies are required to install the Large Tube Pass-Thru Kit:
• #2 Phillips Screwdriver
• Large Flatblade Screwdriver
• Hammer
• Pliers
Step #1
Remove the Cap on the outside of the corresponding Knockout where the Large Tube
Pass-Thru is to be installed. Reference Figure 12-4.
Step #2
Kit Tube Diameter
3/4 inch (19 mm)
1-1/4 inch (31 mm)
143
Table 12-2
Catalog Number
3349200
3349201

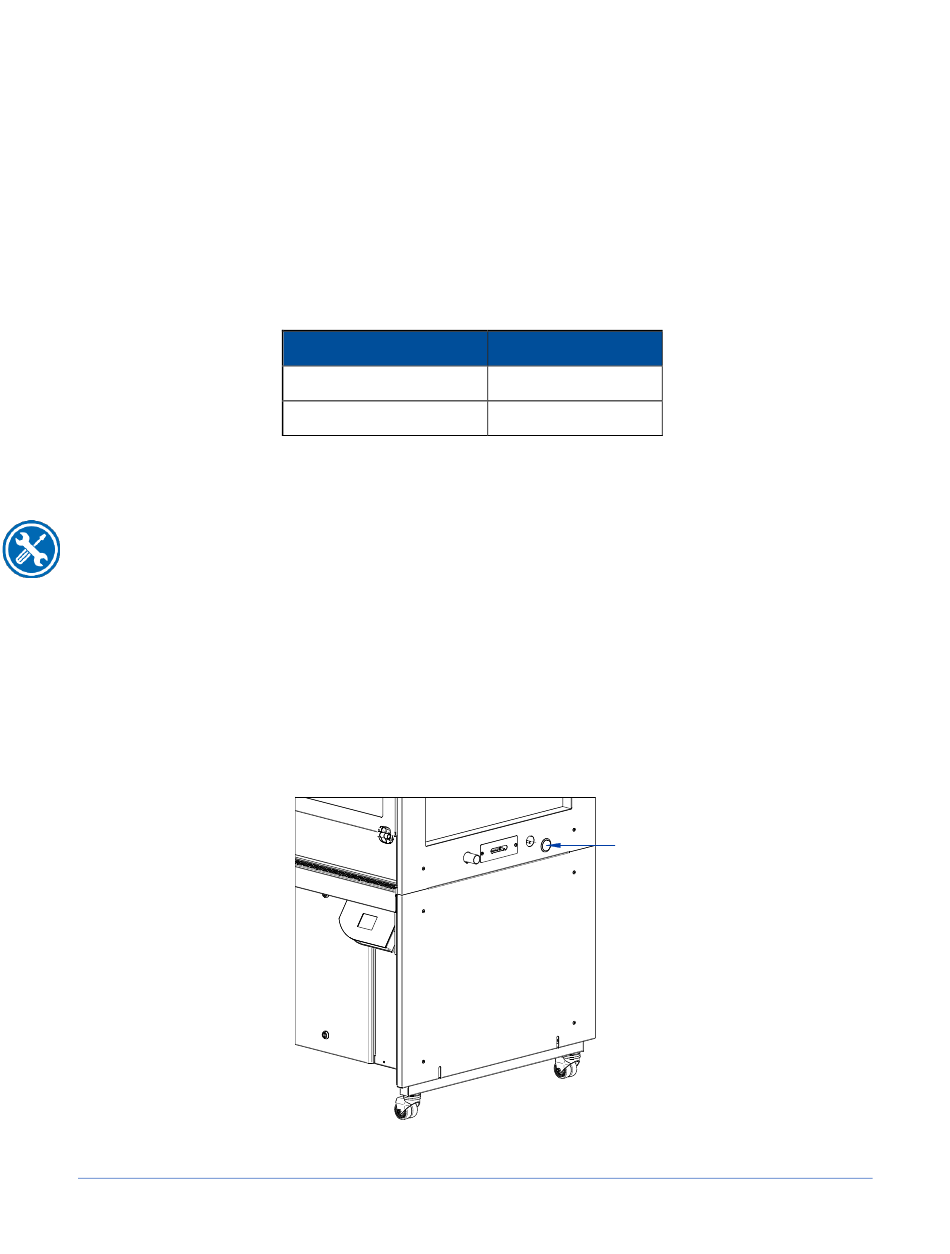

Figure 12-4
CAP
