Step 5 – Levelling Feet Installation
The enclosure must be in its final location before proceeding with this step.
The four (4) Levelling Feet provided must be installed for the following reasons:
• To completely level the enclosure's work area
• To allow full work area load capacity (casters have a lower load capacity
of 165 lbs. per 2 linear feet of work surface width)
• To comply with seismic restraint regulations
The casters on the end that is NOT being raised must be chocked with a board or
otherwise secured BEFORE the Scissor Jack is used to raise one end of the enclosure.
Remove the four (4) Levelling Feet from the box. While holding the Levelling Foot
Body, rotate the seismic foot to collapse each Levelling Foot completely. Using the
Scissor Jack from Step 2, raise one end of the enclosure approximately 1/4 inch (6 mm)
off the floor. Be sure to follow all safety precautions when Scissor Jack is in use.
Remove the End Cap (see Figure 4-7). Hold the Caster Bolt with appropriate socket
and ratchet, then loosen and remove the Lock Nut. Remove the Washer, Caster Bolt,
Caster Washer, Shipping Caster, and Caster Top Plate – these items can be discarded
or stored for future re-use. The End Cap and Lock Nut will be reused when installing
the Levelling Feet.
END CAP - REUSE
SHIPPING
CASTER
CASTER WASHER
CASTER BOLT
LOCK NUT - REUSE
WASHER
CASTER TOP
PLATE
31

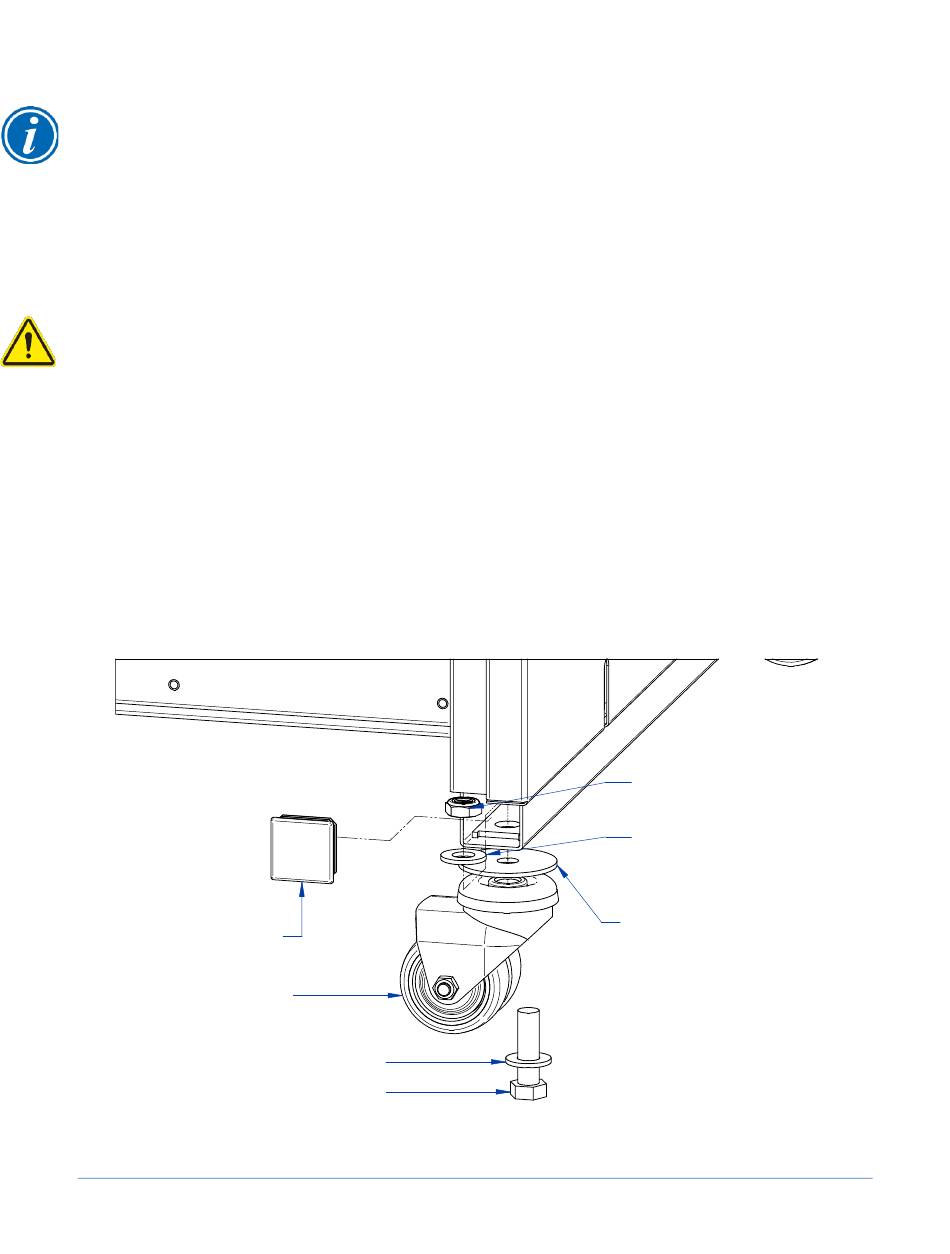

Figure 4-7
