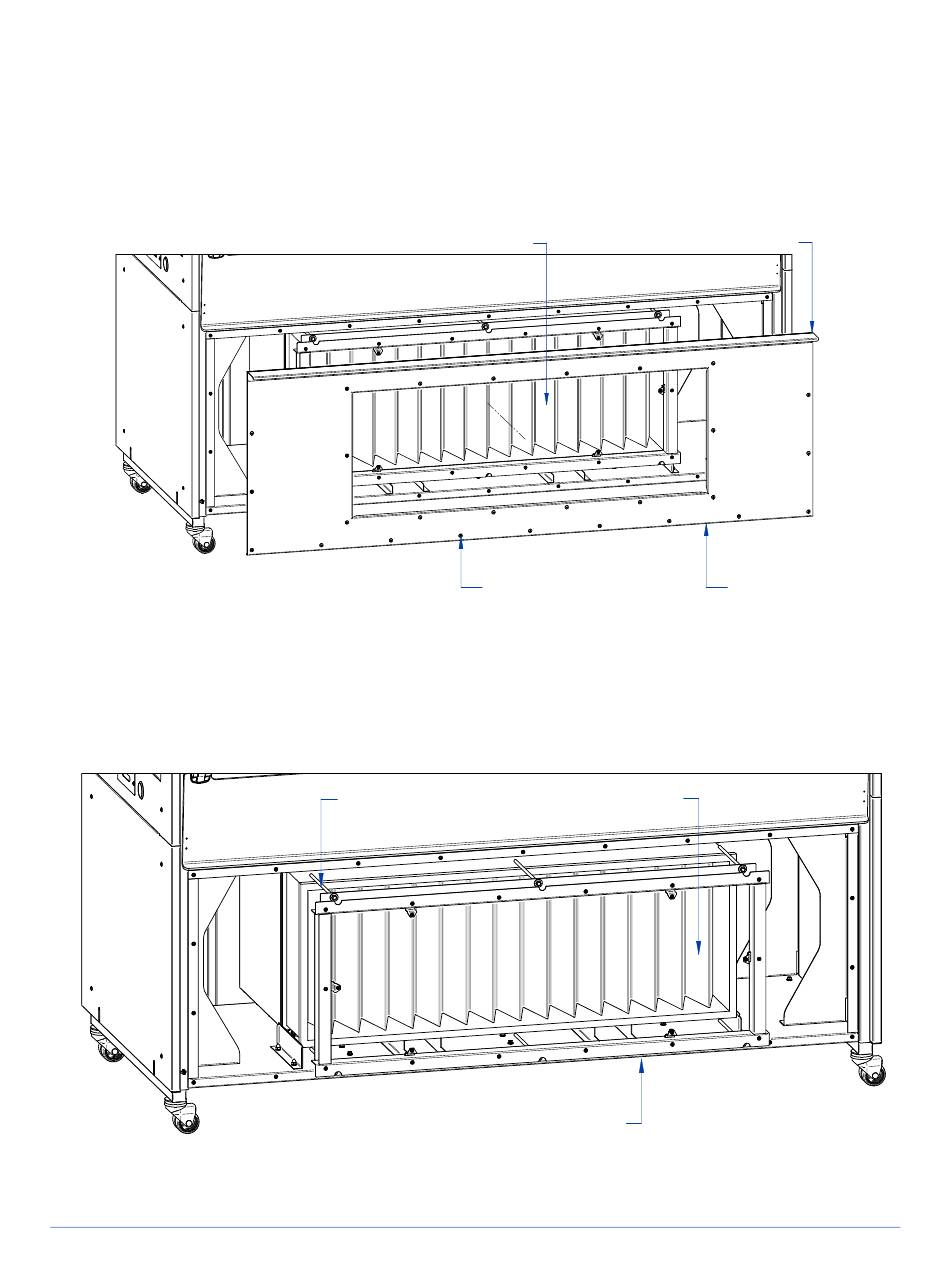

3. Remove the Rear Cover Panel by removing the Screws around the perimeter of
the Panel and the inner perimeter around the Exhaust HEPA Filter. Note: If the
Exhaust Guard is installed, it will come free when the top Screws on the Rear
Cover Panel are removed. It is recommended to remove the Exhaust Guard (if
installed) first. See Figure 11-8.
4. Loosen and remove the six (6) Frame Bolts securing the Filter Frame. Carefully
slide the Filter Frame away from the Exhaust HEPA Filter. See Figure 11-9.
EXHAUST HEPA FILTER
SCREWS
FRAME BOLTS (6) EXHAUST HEPA FILTER
FILTER FRAME
128
Figure 11-8
EXHAUST GUARD
REAR COVER
PANEL
Figure 11-9
